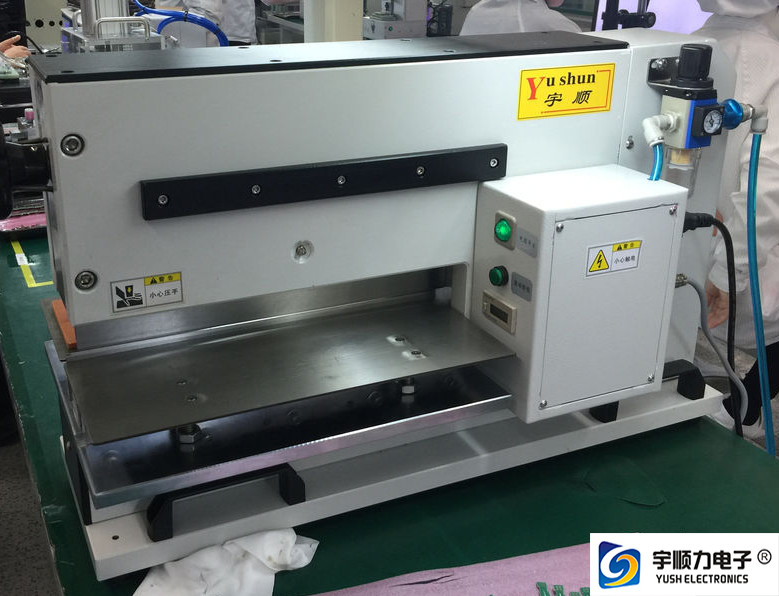

Pneumatically Driven Pcb Depaneling Pcb Separator Machine 960×425×350 mm

Pneumatically Driven Pcb Depaneling Pcb Separator Machine 960×425×350 mm

  • High Light

    pcb depanelizer

    ,

    pcb depaneling equipment

  • Machine Weight
    180KG
  • Minimize Thickness
    0.6-3.5mm
  • Size
    960×425×350mm
  • The Longest Minimize
    400mm
  • The Maximum Board Length Is
    1300mm Pneumatically Driven Pcb Depaneling Manufacturer
  • Place of Origin
    Jiansu
  • Brand Name
    YUSH
  • Certification
    CE
  • Model Number
    YSVC-2
  • Minimum Order Quantity
    1set
  • Packaging Details
    Plywood case
  • Delivery Time
    3 days
  • Payment Terms
    L/C, T/T

Pneumatically Driven Pcb Depaneling Pcb Separator Machine 960×425×350 mm



Depanelling The maximum board length is 1300mm Pneumatically driven Pcb Depaneling Manufacturer Feature:

1.Operator foolproof! Panels cannot be inserted into the knives except on the score line

2.Pneumatically driven
3.Handles high components up to 70mm
4.Bow waves that can occur with round knives are avoided
5.Easy adjusting of distance between knives
6.Independent lab tests show less than 200 microstrains of stress measuring compression and tension.

7.Separates boards up to 3.5mm thick
8.Shears boards safely with parts as close as 0.5mm to the score line,including ceramic capacitors



Pneumatically Driven Pcb Depaneling Pcb Separator Machine 960×425×350 mm 0



Depaneling Handles high components up to 70mm PCB de-panelling machine Specification:
1.Model: YSVC-2
2.The Longest Minimize: 400mm
3.Size: 960×425×350mm
4.Minimize thickness: 0.6-3.5mm
5.Machine Weight: 180KG


Our Service:
1. 100% responsible for quality
2. 12 years experience
3.Free sharpening for blades within 3 months

4. 1 day delivery
5. 24 hours fast response
6. Largest manufactory in South China
