Product Details
Place of Origin: Guangdong, China
Brand Name: YUSH
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: $20,000 / set
Weight: |
500 Kg |
Power: |
2 KW |
Voltage: |
220V/380V |
External Size: |
950mm*1320mm*1540mm |
Air Supply: |
0.5Mpa~0.8Mpa |
Air Ventilation: |
10CFM |
Coating Area: |
L430*W460mm |
Amplitude Modulation: |
50-460mm |
Conveyor Height: |
920mm±30mm |
Control System: |
Industrial Computer + Motion Control Card |
Drive Type: |
Servo System + Screw Module Drive |
Max Work Speed: |
1000mm/sec |
Positioning Accuracy: |
0.01mm |
Repeat Accuracy: |
0.01mm |
Nozzle Type: |
2 (small Atomized Rubber Valve, Needle Dispensing) |
Weight: |
500 Kg |
Power: |
2 KW |
Voltage: |
220V/380V |
External Size: |
950mm*1320mm*1540mm |
Air Supply: |
0.5Mpa~0.8Mpa |
Air Ventilation: |
10CFM |
Coating Area: |
L430*W460mm |
Amplitude Modulation: |
50-460mm |
Conveyor Height: |
920mm±30mm |
Control System: |
Industrial Computer + Motion Control Card |
Drive Type: |
Servo System + Screw Module Drive |
Max Work Speed: |
1000mm/sec |
Positioning Accuracy: |
0.01mm |
Repeat Accuracy: |
0.01mm |
Nozzle Type: |
2 (small Atomized Rubber Valve, Needle Dispensing) |
950mm × 1320mm × 1540mm | 50-60Hz | 500KG | PCB LED Nozzle Cleaning Machine | SMT Glue Dispensing Gel Equipment for Dies

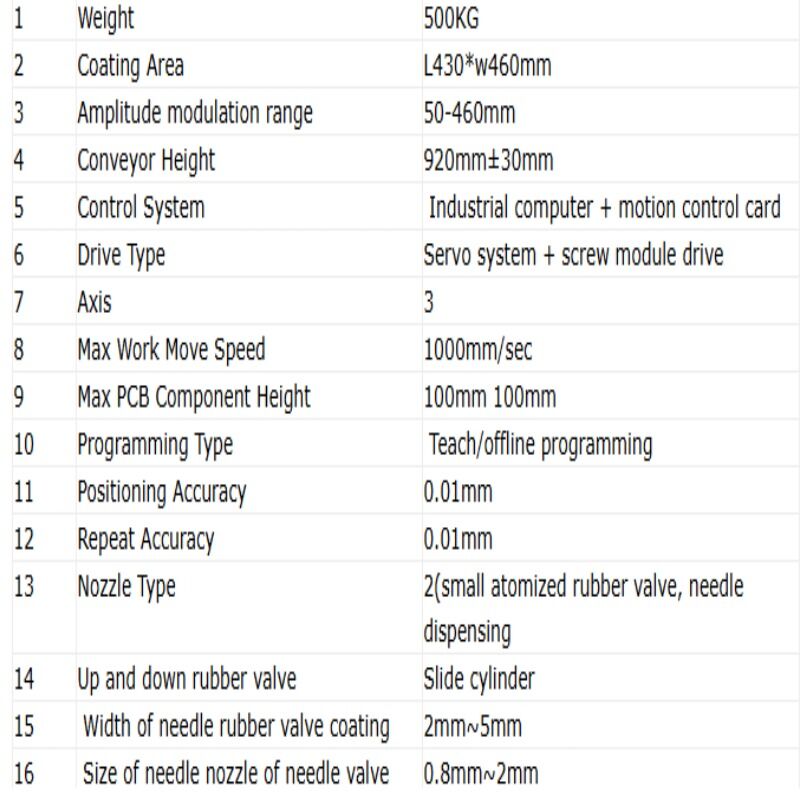

| Specification | Value |
|---|---|
| Weight | 500KG |
| Coating Area | L430 × W460mm |
| Amplitude Modulation Range | 50-460mm |
| Conveyor Height | 920mm ± 30mm |
| Control System | Industrial computer + motion control card |
| Drive Type | Servo system + screw module drive |
| Axis | 3 |
| Max Work Move Speed | 1000mm/sec |
| Max PCB Component Height | 100mm |
| Programming Type | Teach/offline programming |
| Positioning Accuracy | 0.01mm |
| Repeat Accuracy | 0.01mm |
| Nozzle Type | 2 (small atomized rubber valve, needle dispensing) |
| Up and Down Rubber Valve | Slide cylinder |
| Width of Needle Rubber Valve Coating | 2mm-5mm |
| Size of Needle Nozzle of Needle Valve | 0.8mm-2mm |
| Marginal Sharpness | ±0.5mm |
| Small Atomized Coating | 5mm-10mm |
| Coating Thickness | 0.02mm-1mm |
| Glue Tank Volume | 10L × 1, 2L × 1 |
| Glue Mixing Type | Manually stirring |
| Cleansing Function | Automatic cleaning function |
| Convulsions Part | The convulsions |
| Lighting Parts | Explosion-proof lamp |
| Testing Part | LED UV light source |
| Total Power | 1500W |
