                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                High speed hot bar soldering machine, PCB bonding soldering machine, FPC board soldering machine


Weight:	110 Kg	Power:	10 KW
Voltage:	220V/380V	Model:	YSPC-1A
Working Area:	200*260mm	Bonding Force:	3,900N
Pitch Capability:	0.25mm	Core Components:	PLC, Gearbox, Motor, Pump
Temperature Control:	Closed Loop PID	Pressure Control:	Digital Programmable
Cycle Time:	Extremely Short	Thermode Type:	Floating
Alignment System:	Micrometer/vacuum	Optional CCD:	Frame, Camera, Lens
Controller Type:	Microprocessor Based

Weight:	110 Kg
Power:	10 KW
Voltage:	220V/380V
Model:	YSPC-1A
Working Area:	200*260mm
Bonding Force:	3,900N
Pitch Capability:	0.25mm
Core Components:	PLC, Gearbox, Motor, Pump
Temperature Control:	Closed Loop PID
Pressure Control:	Digital Programmable
Cycle Time:	Extremely Short
Thermode Type:	Floating
Alignment System:	Micrometer/vacuum
Optional CCD:	Frame, Camera, Lens
Controller Type:	Microprocessor Based

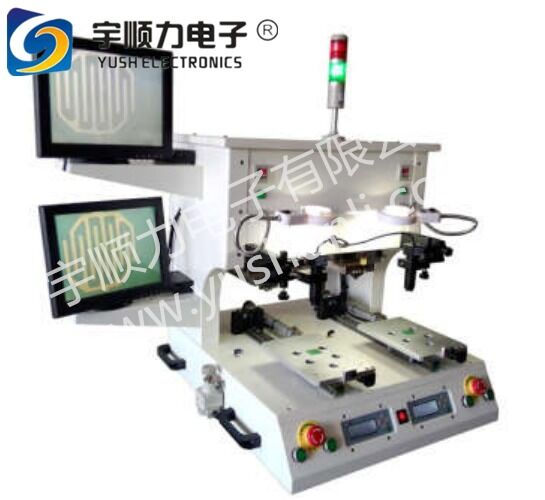

High Speed Hot Bar Soldering Machine Bonding PCB and Fpc Board

High Speed Hot Bar Soldering Machine for PCB and FPC Board Bonding

Advanced hot bar soldering system designed for precision bonding of printed circuit boards and flexible printed circuits with exceptional speed and accuracy.

Technical Details

Microprocessor-based controller provides precise and consistent temperature control
Unique pulsed heat thermos offers uniform temperature distribution with fast heating and cool-down
Flexible programmable profiles for targeted idle, preheat and reflow heating
Floating thermos and digital pressure switch ensure optimal pressure distribution across joints
CCD camera system with magnification lens available for fine-pitch positioning

Key Features

Extremely short cycle time with rotary table design
Product loading and unloading during heat sealing process
High quality heat seal application up to 0.25mm pitch
Pneumatic bonding head provides up to 3,900N force
Digital programmable pressure control with LCD display
Closed loop PID temperature control with visible LED display
Bonding cycle triggered by real-time pressure sensor
Floating Thermode ensures consistent pressure and heat transfer
Precision product fixtures with micrometer alignment and vacuum component fixation
Optional CCD alignment module for fine pitch applications
Full microprocessor logic control

Customer Support Advantages

Engineer overseas training for customers
Prompt technical support services
Rapid complaint handling with 30-minute response time
Reliable manufacturing with 15+ experts each having over six years of experience
