Product Details
Place of Origin: Jiansu
Brand Name: YUSH
Certification: CE
Model Number: YSV-1A
Payment & Shipping Terms
Minimum Order Quantity: 1set
Packaging Details: Plywood case
Delivery Time: 3 days
Payment Terms: L/C, T/T
Power: |
250W |
Max Cutting Length: |
630mm |
Board Thickness: |
From 0.2 To 3.2mm |
V-cut Thickness: |
From 0.2 To 2mm |
Voltage: |
220 V / 110V |
V-groove: |
Is 15 Mm Pcb Cutter |
Power: |
250W |
Max Cutting Length: |
630mm |
Board Thickness: |
From 0.2 To 3.2mm |
V-cut Thickness: |
From 0.2 To 2mm |
Voltage: |
220 V / 110V |
V-groove: |
Is 15 Mm Pcb Cutter |

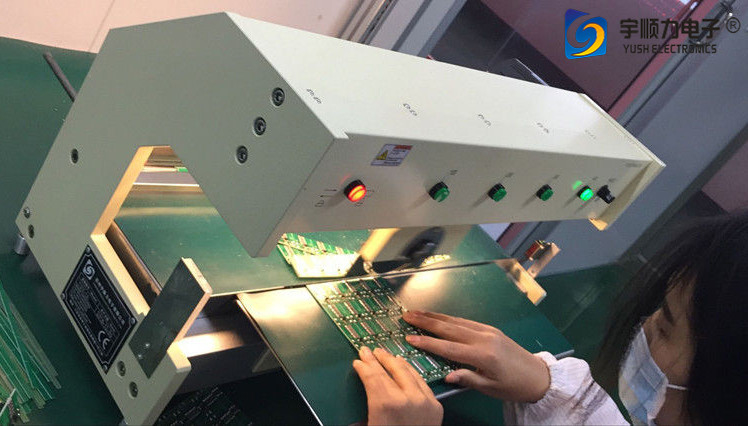

Features:
1.Machine can cut boards as long as 1300mm
2.Available board thickness: 0-3.2mm . V-groove thickness:0-2mm
3.Pre-set the cutting start and end point to well control the cutting length.
4.The blades are sharp and indurable. And they can be sharpened between 7 and 10 times.
5. Minimize the shearing stress to avoid micro-cracks of the solder joints.
6. Coutrolled by microcomputer program, it can cut board accurately with no error.
7. Adjustable blade moving speed : 300mm/s or 500mm/s. As per customers' need, certain speed can be set.
8. Upper blade can be adjuable between 0 and 2mm to meet different thickness of PCB and V-cut.
9. Operation platform can be adjustable higher and lower between 0 and 50mm.
Range of application:
1.It is suitable to cut PCB
2. Printed Circuit Board
3. LED Aluminum plate/LED strip/LED light bar
4. Fiberglass panel/sheet
1.Available V-cut thickness: from 0.2mm to 2.0mm
2. Available PCB thickness: from 0.2mm to 3.2 mm
3. Maximum board length: 1300mm Available PCB length
Our Advantages
1. Manufacturer.Good quality with factory / low price
2. Good after-sales service
3. Easy and safe operation
Specifications:
1.For V-cut PCB, Aluminum PCB
2.PCB thickness:0.2-3.2mm
3.PCB length:0-1300mm
4.Fast speed and lowest press
5.Blade moving
