Fully Automatic SMT Pcb Separator Machine , Pcb Depaneling Equipment

Fully Automatic SMT Pcb Separator Machine , Pcb Depaneling Equipment

  • High Light

    pcb depanelizer

    ,

    pcb depaneling equipment

  • Voltage
    220 V / 110V
  • Power
    250W
  • Max Cutting Length
    630mm
  • Board Thickness
    From 0.2 To 3.2mm
  • V-cut Thickness
    From 0.2 To 2mm
  • Place of Origin
    Jiansu
  • Brand Name
    YUSH
  • Certification
    CE
  • Model Number
    YSV-1A
  • Minimum Order Quantity
    1set
  • Packaging Details
    Plywood case
  • Delivery Time
    3 days
  • Payment Terms
    L/C, T/T

Fully Automatic SMT Pcb Separator Machine , Pcb Depaneling Equipment


Range of application:



1.It is suitable to cut PCB
2. Printed Circuit Board
3. LED Aluminum plate/LED strip/LED light bar
4. Fiberglass panel/sheet



1.Available V-cut thickness: from 0.2mm to 2.0mm
2. Available PCB thickness: from 0.2mm to 3.2 mm
3. Maximum board length: 1300mm Available PCB length_



Fully Automatic SMT Pcb Separator Machine , Pcb Depaneling Equipment 0



Features:

1.Machine can cut boards as long as 1300mm

2.Available board thickness: 0-3.2mm . V-groove thickness:0-2mm

3.Pre-set the cutting start and end point to well control the cutting length.

4.The blades are sharp and indurable. And they can be sharpened between 7 and 10 times.

5. Minimize the shearing stress to avoid micro-cracks of the solder joints.

6. Coutrolled by microcomputer program, it can cut board accurately with no error.

7. Adjustable blade moving speed : 300mm/s or 500mm/s. As per customers' need, certain speed can be set.

8. Upper blade can be adjuable between 0 and 2mm to meet different thickness of PCB and V-cut.

9. Operation platform can be adjustable higher and lower between 0 and 50mm.



Our Advantages

1. Manufacturer.Good quality with factory / low price

2. Good after-sales service

3. Easy and safe operation



Specifications:

1.For V-cut PCB, Aluminum PCB
2.PCB thickness:0.2-3.2mm
3.PCB length:0-1300mm
4.Fast speed and lowest press
5.Blade moving



Specification:

Model YSV-1A
Voltage 220 V / 110V
Power 250W
Max cutting length 630mm
Board thickness from 0.2 to 3.2mm
V-cut thickness from 0.2 to 2mm
Weight 70KG
Size L940xW550xH460mm
Speed 300mm/s or 500mm/s
Warranty 3 years

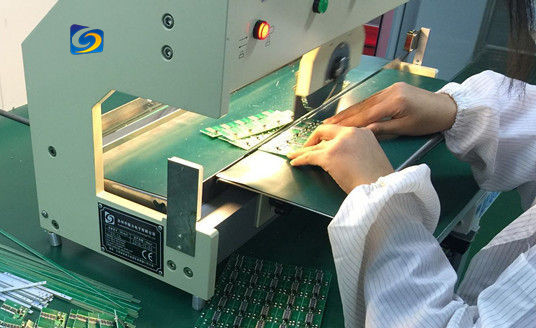

Fully Automatic SMT Pcb Separator Machine , Pcb Depaneling Equipment 1



Principle :

Fix cutting beginning and ending point, upper circular blade moves and cuts against the lower linear blade to seprate the board into several units. There is no stress to board, so no damage to boards and electornic components.

Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress

2. Safe, easy to operate

3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
