High - Speed PCB Boards Separator , PCB Depaneling Equipment For Lightweight Design

High - Speed PCB Boards Separator , PCB Depaneling Equipment For Lightweight Design

  • High Light

    pcb depanelizer

    ,

    pcb separator machine

  • Model
    YSVC-2LL
  • Machine Specification
    428 × 508 × 912mm
  • Scoreboard Thickness
    0.8-3.5mm
  • Scoreboard Speed
    0-1000mm / S
  • The Maximum Score Board Length
    20cm
  • Place of Origin
    jiangsu
  • Brand Name
    YUSH
  • Certification
    CE Mark
  • Model Number
    YSVC-2LL
  • Minimum Order Quantity
    1set/sets
  • Price
    38000-40000 USD
  • Packaging Details
    Standard packaging
  • Delivery Time
    3-7days
  • Payment Terms
    D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100set/SETS

High - Speed PCB Boards Separator , PCB Depaneling Equipment For Lightweight Design

YUSH COB pcb depaneling



Features:



Using the latest gas-electric lightweight design, high-tech feeding facilities, without manual operation, continuous shear stress-free cutting board complete itinerary, especially for cutting precision SMD or sheet. Bow wave generated when no round knife type sub-board (BOW WAVES) and micro-cracks (MICRO CRACK), using the wedge tool linear scoreboard, shear stress to a minimum.



1.  The crop was 1 second / 1 split, controlled by pneumatic foot pedal switch;

2.  The high-tech feeding facilities, without manual operation;

3.  The use of microcomputer technology, the program can automatically control the cutting times and cutting stroke;

4.  Non-rollers (round knife, take the knife) formula cut, no dust phenomenon, no motor, no carbon dust pollution.

5.  Non-friction cutting, no tool metal residues;

6.  Use the blade up to 300,000 / time;

7.  The high-speed tool steel imported from Germany, Taiwan large-scale professional tool factory customization;

8.  4-5KG Pneumatic without specific cutting sites; appearance to the anti-rust oil wipe maintenance;

9.  With automatic counting function;

10.  Easy to use, the general staff can be operated by a simple guide.

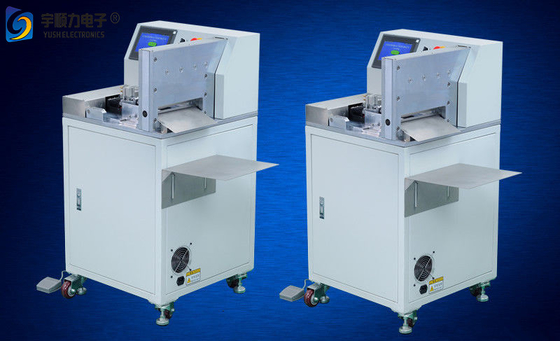

High - Speed PCB Boards Separator , PCB Depaneling Equipment For Lightweight Design 0



 COB pcb depaneling equipment parameters:

Model: YSVC-2LL

Machine Specification: 428 × 508 × 912mm

Scoreboard Thickness: 0.8-3.5mm

Scoreboard speed: 0-1000mm / s

The maximum score board length: 20cm

Voltage: 220VAC

Weight: 120kg

Split Sheet: cob light source substrate, bulb LED aluminum plate / ceramic plate, where a V-CUT of SMD PCB board all suitable for this machine
