Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                3 axis glue dispenser machine, automatic PCB glue dispenser, PCB depaneling glue applicator


Weight:	70 Kg	Power:	5 KW
Voltage:	220V, 110V	Max Speed:	400 Mm/s
Working Range:	100 Mm To 500 Mm	Working Area:	300300100 Mm
Moving Speed X/Y:	500 Mm/sec	Moving Speed Z:	400 Mm/sec
Machine Size:	537560820 Mm	Core Components:	PLC, Gearbox, Motor, Pump
Material:	Die-cast Aluminium Profile	Motor Type:	Japanese Xinrong Stepping Motor
Linear Guide:	Taiwan Silver Linear Guide	Synchronous Belt:	Italian Imported
Cable Type:	Imported Fold-proof Shielded Cable

Weight:	70 Kg
Power:	5 KW
Voltage:	220V, 110V
Max Speed:	400 Mm/s
Working Range:	100 Mm To 500 Mm
Working Area:	300300100 Mm
Moving Speed X/Y:	500 Mm/sec
Moving Speed Z:	400 Mm/sec
Machine Size:	537560820 Mm
Core Components:	PLC, Gearbox, Motor, Pump
Material:	Die-cast Aluminium Profile
Motor Type:	Japanese Xinrong Stepping Motor
Linear Guide:	Taiwan Silver Linear Guide
Synchronous Belt:	Italian Imported
Cable Type:	Imported Fold-proof Shielded Cable

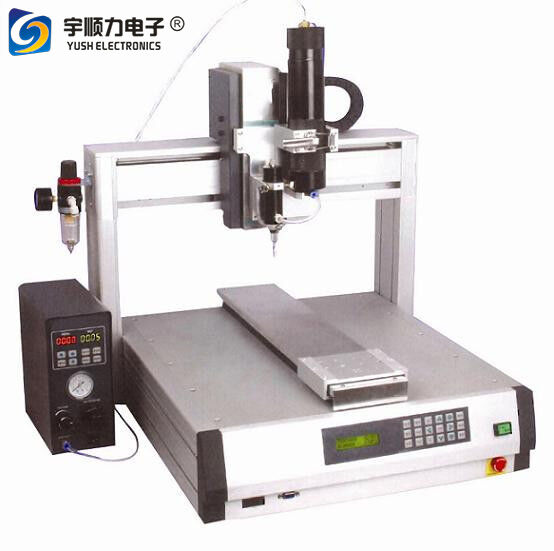

Automatic 3 Axis Glue Dispenser

Product Overview

Compact desktop three-axis dispensing machine designed for efficient batch assembly and distribution operations.

Key Features

Space-saving desktop design ideal for batch assembly operations
High-speed performance at 400 mm/s with exceptional durability
Unique driving circuit eliminates dispensing offset for precision application
Manufacturer's technical expertise ensures application accuracy
Excellent straightness and high-definition tracking capabilities
Clean corner R-shape application without liquid residue or skew
Adjustable working range from 100 mm to 500 mm to suit various workspace requirements
USB connectivity for easy program file upload/download and data management
User-friendly operation interface with intuitive learning curve
CNC-processed machine tool ensures XYZ verticality and enhanced processing accuracy

Hot Melt Adhesive Machine Advantages

Die-cast aluminum profile structure for aesthetic appearance and structural consistency
CNC-machined components ensuring part accuracy and uniformity
Standardized assembly process with 100% strict calibration standards
Premium core components: Japanese Xinrong stepper motor, Italian imported synchronous belt, Taiwan silver linear guide
Smooth, quiet operation during high-speed glue dispensing
Special assembly process for synchronous pulley and motor with Japanese technology belts
Modular assembly design allowing quick replacement of individual components
Import brand fold-proof shielded cables for reliable operation and safety
