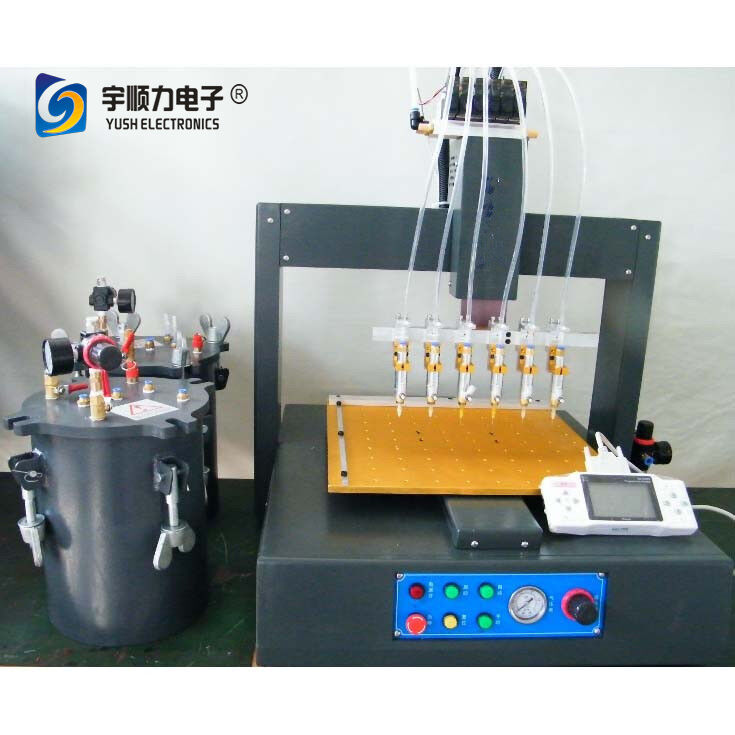

Glue Dispensing Robot Made in China
Glue Dispensing Robot Made in China
Glue Dispensing Robot Made in China
Glue Dispensing Robot Made in China
Glue Dispensing Robot Made in China
Glue Dispensing Robot Made in China
Glue Dispensing Robot Made in China

Glue Dispensing Robot Made in China

Product Details

Place of Origin: Jiangsu, China

Brand Name: YUSH

Model Number: YS-S330

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $12,000 / set

Get Best Price

Product Details

Product Description
Highlight:

PCB depaneling glue dispensing robot

,

China-made glue dispensing robot

,

automated PCB glue dispenser

Weight:
70 KG
Working Area:
300*300*60 Mm
Working Humidity:
20~90% No Condensation
Dimensions:
485*505*610 Mm
Voltage:
250W
Glue Pump Viscosity:
Almost All Viscosity
Dispensing Head:
One Or More On Request
Power:
220/110 V
Max Speed:
500mm/sec
Min Dispensing Quantity:
0.001ml
Resolution:
0.01mm
Repeatability:
+/-0.01mm
Machine Size:
460*450*480 Mm
Axes:
3 Or 4
Dispensing Path:
Set In Robot Or Imported
Weight:
70 KG
Working Area:
300*300*60 Mm
Working Humidity:
20~90% No Condensation
Dimensions:
485*505*610 Mm
Voltage:
250W
Glue Pump Viscosity:
Almost All Viscosity
Dispensing Head:
One Or More On Request
Power:
220/110 V
Max Speed:
500mm/sec
Min Dispensing Quantity:
0.001ml
Resolution:
0.01mm
Repeatability:
+/-0.01mm
Machine Size:
460*450*480 Mm
Axes:
3 Or 4
Dispensing Path:
Set In Robot Or Imported
Glue Dispensing Robot Made in China
Glue Dispensing Robot
Automatic solder paste dispenser designed for precision adhesive application in industrial manufacturing processes.
Key Specifications
  • Compatible with silicone glue, UV glue, AB glue, and various adhesives
  • Easy-to-modify holder and programmable settings
  • High-quality construction with CE certification
Compatible Materials
Suitable for silicone glue, UV glue, AB glue, EPOXY (black glue), COB black glue, white glue, EMI conductive glue, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, and transparent paint.
Glue Dispensing Robot Made in China 0
Application Capabilities
Can perform dotting, draw lines, squares, circles, and various irregular graphics on surfaces, exterior walls, vertical planes, and product gaps.
Technical Specifications
ModelYS-S330
Power220/110 V
Voltage250W
Working Area (X*Y*Z)300*300*60 mm (Customizable)
SpeedMax. 500mm/sec
Dispensing QuantityMin. 0.001ml
Resolution0.01mm
Repeatability+/-0.01mm
Size (L*W*H)460*450*480 mm
Weight70KG
Glue Dispensing Robot Made in China 1
Key Features
  • Fully automatic robot with 3 or 4 axes
  • Dispensing path can be set in robot or imported from external computer
  • Easy operation with amendable holder and program
  • Can store multiple independent running programs
  • High precision with well-controlled glue application
  • Configurable with multiple dispensing heads
  • Wide dispensing area for multiple product setup
  • Customizable working table available on request
Glue Dispensing Robot Made in China 2
Industry Applications
  • Electro-acoustic industry: speakers, buzzers, audio, headphones
  • Inductance industries: small transformers, SMD transformers, relays, small coil motors
  • Communications industry: cell phone keyboard, mobile phone shells, radio, telephone, fax
  • Computers, digital products, digital cameras, MP3, MP4, electronic toys
  • Switches, connectors, wire, plug cable
  • Electronics: electronic components, integrated circuits, circuit board solder paste, electronic parts, LCD liquid crystal screens
  • Optics: optical lenses, optical heads
  • Mechanical hardware, battery boxes, trademarks, steam machinery spare parts
  • LED industries
Glue Dispensing Robot Made in China 3
