Glue Injection Machine Nordson, Glue Injection Machine Datron, Datron Dispensing Head Glue
Glue Injection Machine Nordson, Glue Injection Machine Datron, Datron Dispensing Head Glue
Glue Injection Machine Nordson, Glue Injection Machine Datron, Datron Dispensing Head Glue
Glue Injection Machine Nordson, Glue Injection Machine Datron, Datron Dispensing Head Glue
Glue Injection Machine Nordson, Glue Injection Machine Datron, Datron Dispensing Head Glue
Glue Injection Machine Nordson, Glue Injection Machine Datron, Datron Dispensing Head Glue
Glue Injection Machine Nordson, Glue Injection Machine Datron, Datron Dispensing Head Glue
Glue Injection Machine Nordson, Glue Injection Machine Datron, Datron Dispensing Head Glue

Glue Injection Machine Nordson, Glue Injection Machine Datron, Datron Dispensing Head Glue

Product Details

Place of Origin: Jiangsu, China

Brand Name: YUSH

Model Number: YS-S330

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $5,000 / set

Get Best Price

Product Details

Product Description
Highlight:

Nordson glue injection machine for PCB

,

Datron glue dispensing head

,

PCB depaneling glue injection machine

Weight:
70 KG
Working Area:
300*300*60 Mm
Working Humidity:
20~90% No Condensation
Dimensions:
485*505*610 Mm
Voltage:
250W
Glue Pump Viscosity:
Almost All Viscosity
Dispensing Head:
One Or More On Request
Power:
220/110 V
Max Speed:
500mm/sec
Dispensing Quantity:
Min. 0.001ml
Resolution:
0.01mm
Repeatability:
+/-0.01mm
Machine Size:
460*450*480 Mm
Model:
YS-S330
Core Components:
Motor
Weight:
70 KG
Working Area:
300*300*60 Mm
Working Humidity:
20~90% No Condensation
Dimensions:
485*505*610 Mm
Voltage:
250W
Glue Pump Viscosity:
Almost All Viscosity
Dispensing Head:
One Or More On Request
Power:
220/110 V
Max Speed:
500mm/sec
Dispensing Quantity:
Min. 0.001ml
Resolution:
0.01mm
Repeatability:
+/-0.01mm
Machine Size:
460*450*480 Mm
Model:
YS-S330
Core Components:
Motor
Glue Injection Machine Nordson, Glue Injection Machine Datron, Datron Dispensing Head Glue

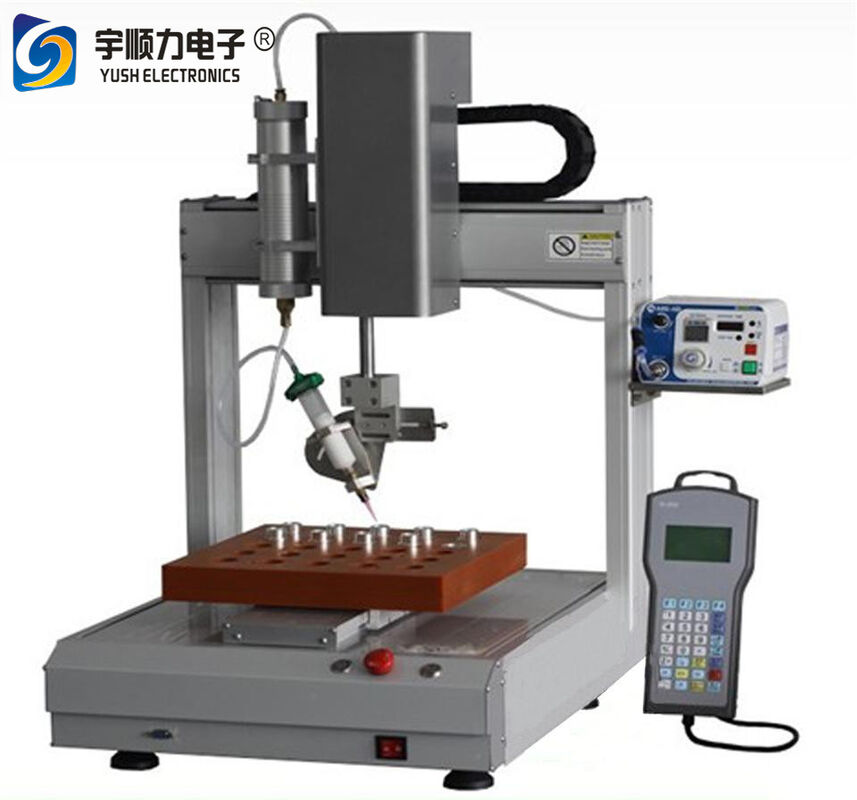

Glue Injection Machine – Nordson & Datron Models
Automatic epoxy dispenser robot for precision adhesive application
Key Specifications
  • Compatible with silicone glue, UV glue, AB glue, and various adhesives
  • Easy-to-modify holder and programmable settings
  • High-quality construction with CE certification
Glue Injection Machine Nordson, Glue Injection Machine Datron, Datron Dispensing Head Glue 0
Compatible Adhesive Types
Silicone glue, UV glue, AB glue, EPOXY (black glue), COB black glue, white glue, EMI conductive glue, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, and more.
Application Methods
Capable of dotting, drawing lines, squares, circles, and various irregular patterns on product surfaces, exterior walls, vertical planes, and gaps.
Glue Injection Machine Nordson, Glue Injection Machine Datron, Datron Dispensing Head Glue 1
Technical Specifications – Model YS-S330
ParameterSpecification
Power220/110 V
Voltage250W
Working Area (X*Y*Z)300*300*60 mm (Customizable)
SpeedMax. 500mm/sec
Dispensing QuantityMin. 0.001ml
Resolution0.01mm
Repeatability+/- 0.01mm
Size (L*W*H)460*450*480 mm
Weight70KG
Glue Injection Machine Nordson, Glue Injection Machine Datron, Datron Dispensing Head Glue 2
Key Features
  • Fully automatic robot with 3 or 4 axes operation
  • Dispensing paths programmable directly or imported from external computer
  • User-friendly operation with easy holder and program modifications
  • Multiple independent program storage capability
  • High precision glue control for consistent application
  • Configurable with multiple dispensing heads
  • Expansive dispensing area accommodating multiple products
  • Customizable working table available upon request
Glue Injection Machine Nordson, Glue Injection Machine Datron, Datron Dispensing Head Glue 3
Industry Applications
  • Electro-acoustic industry: speakers, buzzers, audio systems, headphones
  • Inductance industries: small transformers, SMD transformers, relays, coil motors
  • Communications: mobile phone keyboards, phone shells, radios, telephones, fax machines
  • Computers & digital products: digital cameras, MP3/MP4 players, electronic toys
  • Electrical components: switches, connectors, wires, plug cables
  • Electronics: components, integrated circuits, PCB solder paste, LCD screens
  • Optics: lenses, optical heads
  • Mechanical hardware: battery boxes, trademarks, machinery spare parts
  • LED manufacturing and assembly
Glue Injection Machine Nordson, Glue Injection Machine Datron, Datron Dispensing Head Glue 4
