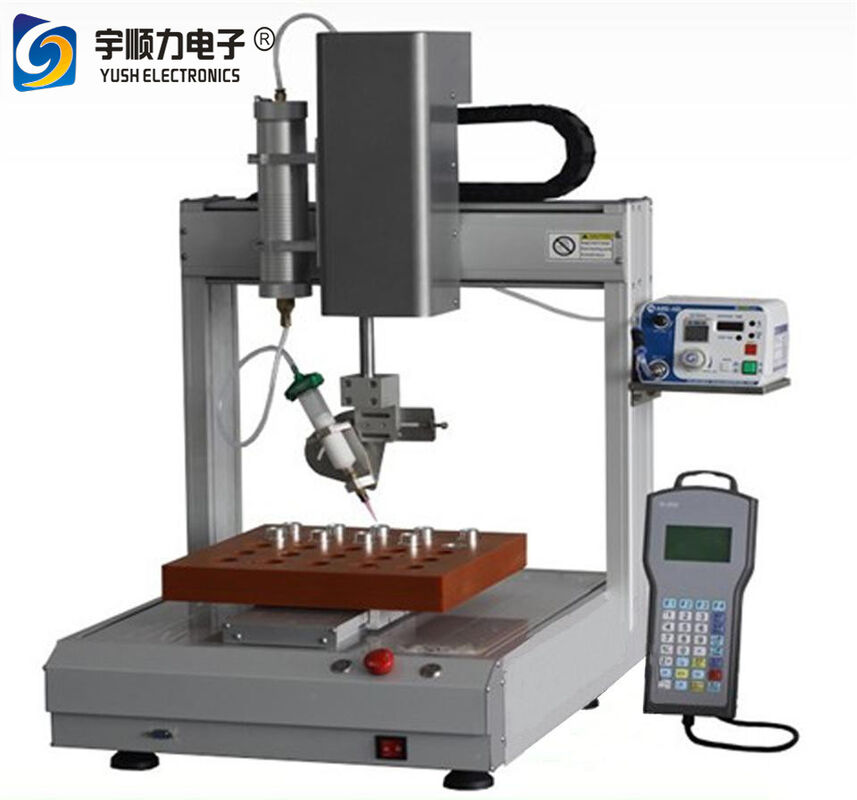

High Accuracy Automatic AB Glue Dispensing Robot Hot Glue Automatic Glue Dispenser
High Accuracy Automatic AB Glue Dispensing Robot Hot Glue Automatic Glue Dispenser
High Accuracy Automatic AB Glue Dispensing Robot Hot Glue Automatic Glue Dispenser
High Accuracy Automatic AB Glue Dispensing Robot Hot Glue Automatic Glue Dispenser
High Accuracy Automatic AB Glue Dispensing Robot Hot Glue Automatic Glue Dispenser
High Accuracy Automatic AB Glue Dispensing Robot Hot Glue Automatic Glue Dispenser
High Accuracy Automatic AB Glue Dispensing Robot Hot Glue Automatic Glue Dispenser
High Accuracy Automatic AB Glue Dispensing Robot Hot Glue Automatic Glue Dispenser

High Accuracy Automatic AB Glue Dispensing Robot Hot Glue Automatic Glue Dispenser

Product Details

Place of Origin: Jiangsu, China

Brand Name: YUSH

Model Number: YS-S330

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $10,000 / set

Get Best Price

Product Details

Product Description
Highlight:

automatic AB glue dispensing robot

,

hot glue automatic dispenser machine

,

PCB depaneling glue dispensing robot

Weight:
75 KG
Working Area:
300*300*60 Mm
Working Humidity:
20~90% No Condensation
Dimensions:
485*505*610 Mm
Voltage:
250W
Glue Pump Viscosity:
Almost All Viscosity
Dispensing Head:
One Or More On Request
Power:
220/110 V
Max Speed:
500mm/sec
Min Dispensing Quantity:
0.001ml
Resolution:
0.01mm
Repeatability:
+/-0.01mm
Size:
460*450*480 Mm
Model:
YS-S330
Core Components:
Pump
Weight:
75 KG
Working Area:
300*300*60 Mm
Working Humidity:
20~90% No Condensation
Dimensions:
485*505*610 Mm
Voltage:
250W
Glue Pump Viscosity:
Almost All Viscosity
Dispensing Head:
One Or More On Request
Power:
220/110 V
Max Speed:
500mm/sec
Min Dispensing Quantity:
0.001ml
Resolution:
0.01mm
Repeatability:
+/-0.01mm
Size:
460*450*480 Mm
Model:
YS-S330
Core Components:
Pump
High Accuracy Automatic AB Glue Dispensing Robot Hot Glue Automatic Glue Dispenser
High Accuracy Automatic AB Glue Dispensing Robot
Professional hot glue automatic dispensing system with precision control for industrial applications.
Product Specifications
Compatible Adhesives Silicone glue, UV glue, AB glue, EPOXY, COB black glue, white glue, EMI conductive glue, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint
Model YS-S330
Power 220/110 V
Voltage 250W
Working Area (X*Y*Z) 300*300*60 mm (Customizable)
Maximum Speed 500mm/sec
Dispensing Quantity Minimum 0.001ml
Resolution 0.01mm
Repeatability +/-0.01mm
Size (L*W*H) 460*450*480 mm
Weight 70KG
Application Capabilities
Can perform dot dispensing, draw lines, squares, circles and various irregular graphics on surfaces, outer walls, vertical planes, and product gaps.
High Accuracy Automatic AB Glue Dispensing Robot Hot Glue Automatic Glue Dispenser 0
Key Features
Full automatic robot with 3 or 4 axes movement
Dispensing path programmable directly on robot or imported from external computer
Easy operation with amendable holder and program settings
Multiple independent running program storage capability
High precision glue control system
Configurable for multiple dispensing heads
Wide dispensing area accommodating multiple products
Customizable working table available on request
High Accuracy Automatic AB Glue Dispensing Robot Hot Glue Automatic Glue Dispenser 1
Industry Applications
  • Electro-acoustic industry: speakers, buzzers, audio systems, headphones
  • Inductance industries: small transformers, SMD transformers, relays, small coil motors
  • Communications industry: mobile phone keyboards, phone shells, radios, telephones, fax machines
  • Computers and digital products: digital cameras, MP3/MP4 players, electronic toys
  • Switches, connectors, wires, plug cables
  • Electronics: components, integrated circuits, circuit board solder paste, LCD screens
  • Optics: lenses, optical heads
  • Mechanical hardware, battery boxes, trademarks, machinery spare parts
  • LED manufacturing industries
High Accuracy Automatic AB Glue Dispensing Robot Hot Glue Automatic Glue Dispenser 2
Quality & Certification
High quality construction with CE certification compliance. Features easy-to-amend holders and programs for flexible operation.
High Accuracy Automatic AB Glue Dispensing Robot Hot Glue Automatic Glue Dispenser 3
Packaging & Shipping
High Accuracy Automatic AB Glue Dispensing Robot Hot Glue Automatic Glue Dispenser 4
Manufacturer Information
YUSH Electronic Technology Co., Ltd is a specialized manufacturer and trader focused on research, development and production of PCB depaneling equipment, hot bar welding machines, and touch screen film sticking machines. Located in Dongguan City, Guangdong Province, China, all products comply with international quality standards and serve markets worldwide.
High Accuracy Automatic AB Glue Dispensing Robot Hot Glue Automatic Glue Dispenser 5
