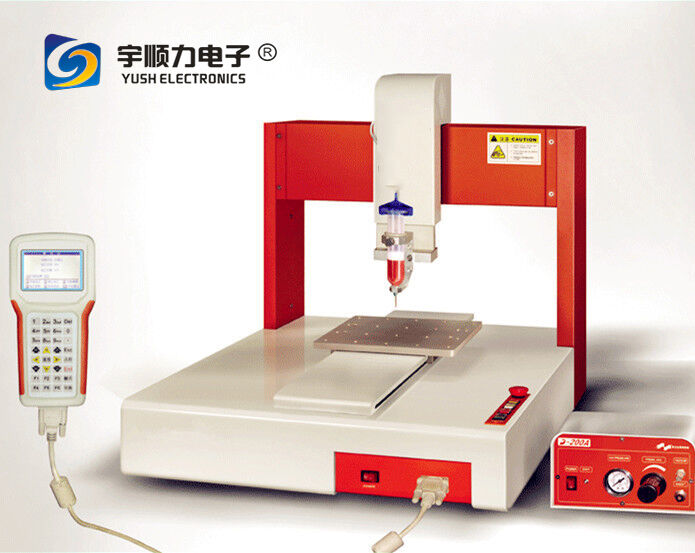

YS-S330 Professional Automatic Liquid Dispensing Machine for SMT Assembly Line
YS-S330 Professional Automatic Liquid Dispensing Machine for SMT Assembly Line
YS-S330 Professional Automatic Liquid Dispensing Machine for SMT Assembly Line
YS-S330 Professional Automatic Liquid Dispensing Machine for SMT Assembly Line
YS-S330 Professional Automatic Liquid Dispensing Machine for SMT Assembly Line
YS-S330 Professional Automatic Liquid Dispensing Machine for SMT Assembly Line
YS-S330 Professional Automatic Liquid Dispensing Machine for SMT Assembly Line
YS-S330 Professional Automatic Liquid Dispensing Machine for SMT Assembly Line

YS-S330 Professional Automatic Liquid Dispensing Machine for SMT Assembly Line

Product Details

Place of Origin: Guangdong, China

Brand Name: YUSH

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $6,500 / set

Get Best Price

Product Details

Product Description
Highlight:

automatic liquid dispensing machine for SMT

,

professional SMT assembly line dispenser

,

PCB depaneling liquid dispensing machine

Weight:
70 Kg
Power:
10 KW
Voltage:
220V/110V
Working Area:
300*300*60 Mm
Working Humidity:
20~90% No Condensation
Dimensions:
485*505*610 Mm
Glue Pump Viscosity:
Almost All Viscosity
Dispensing Head:
One Or More
Max Speed:
500 Mm/sec
Min Dispensing Quantity:
0.001 Ml
Resolution:
0.01 Mm
Repeatability:
+/-0.01 Mm
Size:
460*450*480 Mm
Core Components:
Motor
Axes:
3 Or 4
Weight:
70 Kg
Power:
10 KW
Voltage:
220V/110V
Working Area:
300*300*60 Mm
Working Humidity:
20~90% No Condensation
Dimensions:
485*505*610 Mm
Glue Pump Viscosity:
Almost All Viscosity
Dispensing Head:
One Or More
Max Speed:
500 Mm/sec
Min Dispensing Quantity:
0.001 Ml
Resolution:
0.01 Mm
Repeatability:
+/-0.01 Mm
Size:
460*450*480 Mm
Core Components:
Motor
Axes:
3 Or 4
YS-S330 Professional Automatic Liquid Dispensing Machine for SMT Assembly Line
YS-S330 Professional Automatic Liquid Dispensing Machine
Advanced automated liquid dispensing system designed for SMT assembly lines and precision manufacturing applications.
Compatible Materials
Silicone glue, UV glue, AB glue, epoxy (black glue), COB black glue, white glue, EMI conductive glue, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, and more.
Application Capabilities
Precision dotting, line drawing, square and circle patterns, and complex irregular graphics on surfaces, exterior walls, vertical planes, and product gaps.
YS-S330 Professional Automatic Liquid Dispensing Machine for SMT Assembly Line 0 YS-S330 Professional Automatic Liquid Dispensing Machine for SMT Assembly Line 1
Technical Specifications
Model YS-S330
Power 220/110 V
Voltage 250W
Working Area (X*Y*Z) 300*300*60 mm (Customizable)
Speed Max. 500mm/sec
Dispensing Quantity Min. 0.001ml
Resolution 0.01mm
Repeatability +/-0.01mm
Size (L*W*H) 460*450*480 mm
Weight 70KG
YS-S330 Professional Automatic Liquid Dispensing Machine for SMT Assembly Line 2
Key Features
  • Full automatic robot with 3 or 4 axes
  • Dispensing path programmable via robot or external computer import
  • Easy operation with amendable holder and program settings
  • Multiple independent running program storage capability
  • High precision glue control system
  • Multiple dispensing head configuration options
  • Wide dispensing area supporting multiple product setups
  • Customizable working table available on request
YS-S330 Professional Automatic Liquid Dispensing Machine for SMT Assembly Line 3
Industry Applications
  • Electro-acoustic industry: speakers, buzzers, audio, headphones
  • Inductance industries: small transformers, SMD transformers, relays, small coil motors
  • Communications industry: cell phone keyboard, mobile phone shells, radio, telephone, fax
  • Computers, digital products, digital cameras, MP3, MP4, electronic toys
  • Switches, connectors, wire, plug cable assemblies
  • Electronics: electronic components, integrated circuits, circuit board solder paste, electronic parts, LCD liquid crystal screens
  • Optics: optical lenses, optical heads
  • Mechanical hardware, battery boxes, trademarks, steam machinery spare parts
  • LED industries and lighting applications
YS-S330 Professional Automatic Liquid Dispensing Machine for SMT Assembly Line 4
