Epoxy Resin . Dispensing Arm Robot
Epoxy Resin . Dispensing Arm Robot
Epoxy Resin . Dispensing Arm Robot
Epoxy Resin . Dispensing Arm Robot
Epoxy Resin . Dispensing Arm Robot
Epoxy Resin . Dispensing Arm Robot
Epoxy Resin . Dispensing Arm Robot
Epoxy Resin . Dispensing Arm Robot

Epoxy Resin . Dispensing Arm Robot

Product Details

Place of Origin: Jiangsu, China

Brand Name: YUSH

Model Number: YS-S330

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $7,800 / set

Get Best Price

Product Details

Product Description
Highlight:

epoxy resin dispensing robot

,

PCB depaneling machine arm

,

automated resin dispensing system

Weight:
75 KG
Working Area:
300*300*60 Mm
Working Humidity:
20~90% No Condensation
Dimensions:
485*505*610 Mm
Voltage:
250W
Glue Pump:
All Viscosity
Dispensing Head:
One Or More
Power:
220/110 V
Speed:
Max. 500mm/sec
Dispensing Quantity:
Min. 0.001ml
Resolution:
0.01mm
Repeatability:
+/-0.01mm
Size:
460*450*480 Mm
Weight:
70KG
Model:
YS-S330
Weight:
75 KG
Working Area:
300*300*60 Mm
Working Humidity:
20~90% No Condensation
Dimensions:
485*505*610 Mm
Voltage:
250W
Glue Pump:
All Viscosity
Dispensing Head:
One Or More
Power:
220/110 V
Speed:
Max. 500mm/sec
Dispensing Quantity:
Min. 0.001ml
Resolution:
0.01mm
Repeatability:
+/-0.01mm
Size:
460*450*480 Mm
Weight:
70KG
Model:
YS-S330
Epoxy Resin . Dispensing Arm Robot

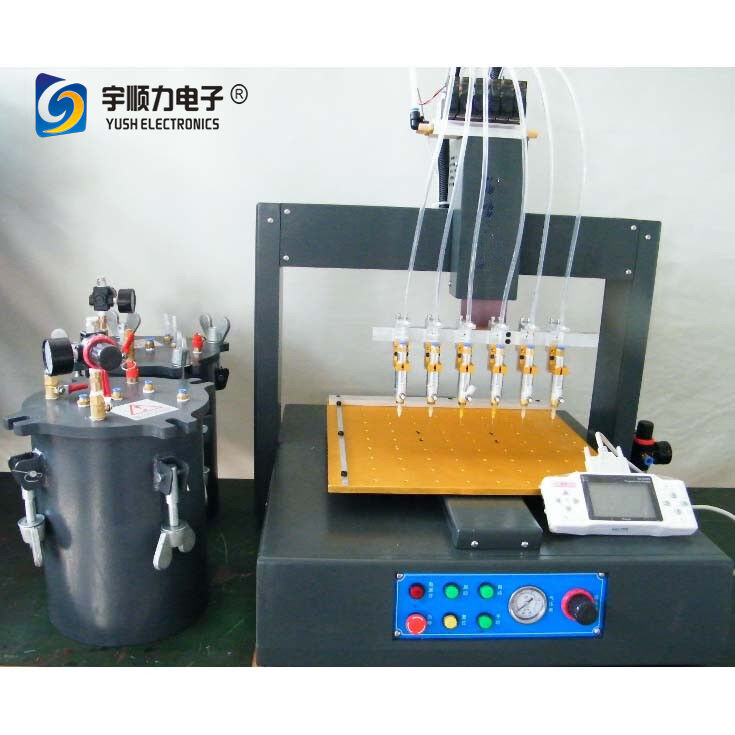

Epoxy Resin Dispensing Arm Robot
High-precision automated dispensing system for various industrial adhesives and sealants.
Key Specifications
  • Compatible with silicone glue, UV glue, AB glue, and more
  • Easy-to-modify holder and programming
  • High quality construction with CE certification
Epoxy Resin . Dispensing Arm Robot 0
Compatible Materials
Silicone glue, UV glue, AB glue, EPOXY (black glue), COB black glue, white glue, EMI conductive glue, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, and more.
Application Methods
Capable of dotting, drawing lines, squares, circles, and various irregular graphics on surfaces, exterior walls, vertical planes, and product gaps.
Epoxy Resin . Dispensing Arm Robot 1
Technical Specifications
Model YS-S330
Power 220/110 V
Voltage 250W
Working Area (X*Y*Z) 300*300*60 mm (Customizable)
Speed Max. 500mm/sec
Dispensing Quantity Min. 0.001ml
Resolution 0.01mm
Repeatability +/-0.01mm
Size (L*W*H) 460*450*480 mm
Weight 70KG
Epoxy Resin . Dispensing Arm Robot 2
Key Features
  • Full automatic robot with 3 or 4 axes
  • Dispensing path can be set in robot or imported from external computer
  • Easy operation with amendable holder and programming
  • Can store multiple independent running programs
  • High precision with well-controlled glue application
  • Configurable with multiple dispensing heads
  • Wide dispensing area for multiple product setup
  • Customizable working table available on request
Epoxy Resin . Dispensing Arm Robot 3
Industry Applications
  • Electro-acoustic industry: speakers, buzzers, audio, headphones
  • Inductance industries: small transformers, SMD transformers, relays, small coil motors
  • Communications industry: cell phone keyboard, mobile phone shells, radio, telephone, fax
  • Computers, digital products, digital cameras, MP3, MP4, electronic toys
  • Switches, connectors, wire, plug cable
  • Electronics: electronic components, integrated circuits, circuit board solder paste, electronic parts, LCD liquid crystal screen
  • Optics: optical lenses, optical head
  • Mechanical hardware, battery box, trademark, steam machinery spare parts
  • LED industries
Epoxy Resin . Dispensing Arm Robot 4
