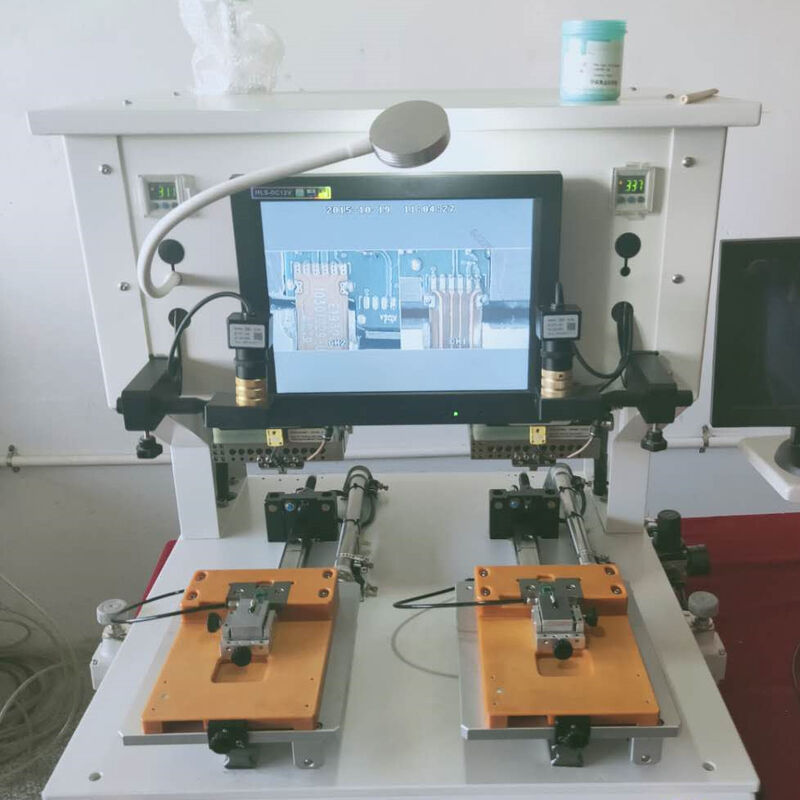

High Speed Automatic PCB HotBar Soldering Machine YSPP-2A

Product Details

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $9,600 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                automatic PCB hotbar soldering machine, high speed PCB depaneling machine, YSPP-2A hotbar soldering machine


Weight:	110 KG	Temperature Tolerance:	+2℃
Working Area:	110mm X 150mm	Air Pressure:	0.5-0.7Mpa
Machine Size:	1000mm660mm700mm	Power Supply:	AC200V
Heat Seal Pitch:	0.25mm	Bonding Force:	3,900N
Temperature Control:	Closed Loop PID	Pressure Control:	Digital Programmable
Cycle Trigger:	Real-time Pressure Sensor	Thermode Type:	Floating
Product Fixtures:	2X	Alignment Module:	Optional CCD
Control Logic:	Microprocessor

Weight:	110 KG
Temperature Tolerance:	+2℃
Working Area:	110mm X 150mm
Air Pressure:	0.5-0.7Mpa
Machine Size:	1000mm660mm700mm
Power Supply:	AC200V
Heat Seal Pitch:	0.25mm
Bonding Force:	3,900N
Temperature Control:	Closed Loop PID
Pressure Control:	Digital Programmable
Cycle Trigger:	Real-time Pressure Sensor
Thermode Type:	Floating
Product Fixtures:	2X
Alignment Module:	Optional CCD
Control Logic:	Microprocessor

High Speed Automatic PCB HotBar Soldering Machine YSPP-2A

Advanced automated soldering solution for precision PCB assembly with high-speed rotary table design and microprocessor control.

Technical Specifications

Microprocessor-based controller for precise and consistent temperature control
Unique pulsed heat thermos for uniform temperature distribution with fast heating and cool-down
Flexible programmable profiles for targeted idle, preheat and reflow heating
Floating thermos and digital pressure switch for optimal pressure distribution
Optional CCD camera system with magnification lens for fine-pitch positioning

Key Features

Extremely short cycle time with efficient rotary table design
Simultaneous product loading and unloading during heat sealing process
High quality heat seal application up to 0.25mm pitch
Pneumatic bonding head providing up to 3,900N force
Digital programmable pressure control with LCD display
Closed loop PID temperature control with visible LED display
Bonding cycle triggered by real-time pressure sensor
Floating Thermode ensures consistent pressure and heat transfer
Precision product fixtures with micrometer alignment and vacuum component fixation
Optional CCD alignment module for fine pitch applications
Full microprocessor logic control system

Packaging & Shipping

Professional packaging ensures safe delivery worldwide with comprehensive shipping options.

Manufacturer Information

YUSH Electronic Technology Co., Ltd. was founded in 2004 and is located in Jiangsu, China's manufacturing hub. The company specializes in professional PCB separator and depaneling electronic equipment machinery.

With advanced production equipment and an experienced development team (half with over 10 years in electronic equipment industry), YUSH has become one of China's largest PCB separator production bases. The company focuses on product quality, safety, and innovation, offering high-quality, stable performance, cost-effective solutions that improve production yields and enhance customer competitiveness.

YUSH designs various PCB separation solutions including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router types, serving customers worldwide with reliable quality and competitive pricing.
