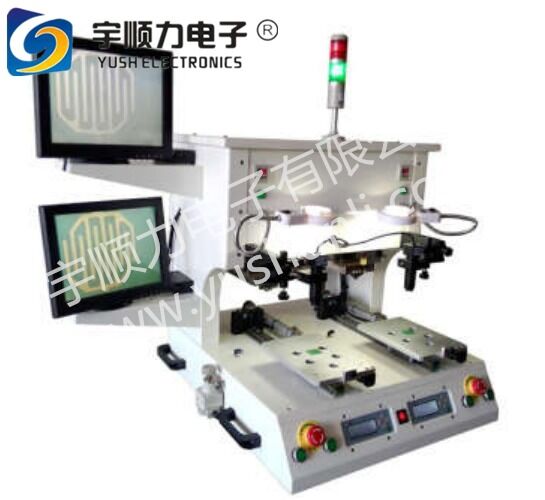

Smt Pcb/fpc Hot bar Solder Welding Machine/desktop Heating Equipment

Name: Smt Pcb/fpc Hot bar Solder Welding Machine/desktop Heating Equipment
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSPC-2A
Price: 304.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: YUSH

Model Number: YSPC-2A

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $8,600 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                desktop PCB hot bar welder, FPC soldering heating machine, PCB depaneling welding equipment


Weight:	110kg	Power:	2 KW
Voltage:	220V, 110V	Working Size:	200 X 260mm
Working Pressure:	0.15-0.7Mpa	Power Supply:	AC220V + 10% 50HZ
Heating Settings:	Two Segment Settings, 4 Storage Programs	Welding Pressure:	1~50Kg
Temperature Setting:	Room Temperature ~500C Error +5C	Hot Pressing Time:	1~99s
Hot Pressing Precision:	0.05mm	Temperature Control:	Closed Loop PID
Soldering Time:	Programmable	Pressure Control:	Programmable With LCD
Welding Speed:	3-5S

Weight:	110kg
Power:	2 KW
Voltage:	220V, 110V
Working Size:	200 X 260mm
Working Pressure:	0.15-0.7Mpa
Power Supply:	AC220V + 10% 50HZ
Heating Settings:	Two Segment Settings, 4 Storage Programs
Welding Pressure:	1~50Kg
Temperature Setting:	Room Temperature ~500C Error +5C
Hot Pressing Time:	1~99s
Hot Pressing Precision:	0.05mm
Temperature Control:	Closed Loop PID
Soldering Time:	Programmable
Pressure Control:	Programmable With LCD
Welding Speed:	3-5S

Smt Pcb/fpc Hot bar Solder Welding Machine/desktop Heating Equipment

SMT PCB/FPC Hot Bar Solder Welding Machine - Desktop Heating Equipment

Technical Specifications

Working Size	200 × 260mm
Machine Weight	110kg
Working Pressure	0.15-0.7Mpa Compressed Gas
Power Supply	AC220V + 10% 50HZ, 2000W
Heating Settings	Two Segment Settings, 4 Storage Programs
Welding Pressure	1~50Kg
Temperature Setting	Room Temperature ~500°C Error ±5°C
Hot Pressing Time	1~99s
Hot Pressing Precision	0.05mm

Operation Overview

The hot press equipment controls three essential parameters - temperature, time, and pressure - to ensure stable welding results. This machine specializes in connecting PCB, FPC, and FFC products using soldering tin to achieve reliable electrical connections.

Precise parameter setting is crucial for quality welding. Optimal solder joints require sufficient solder to properly connect both surfaces with melted tin. Effective coordination of temperature, time, and pressure parameters ensures successful welding operations.

FPC construction consists of polyimide and copper layers with an operating temperature range of 130-200°C, reaching up to 300°C for short welding durations. During PCB and FPC welding, heat dissipation occurs through the indenter, material absorption, and air convection. Considering FPC thickness ranges from 0.02-0.12mm, temperature losses of 50-80°C should be factored into temperature settings.

Key Technical Features

Unique pulse heat technology provides fastest soldering head heating
Programmable soldering temperature, heat-up rate and time duration for diverse product requirements
Thermocouple positioned close to working surface for accurate temperature feedback control
Closed Loop PID temperature control with clearly visible LED display
Programmable soldering time triggered by temperature
Floating thermode ensures consistent pressure and heat transfer
Programmable pressure switch with LCD display for precise force control
Optional CCD camera system with magnification lens for fine-pitch positioning

Touch Screen Pulse Heat Press Features

Pulse heating mode with adjustable heating speed for different products
Special material welding head ensures even pressure distribution
Vacuum function for convenient counterposition adjustment
Rotating double stations with feed rotation for improved efficiency
Digital temperature control with programmable preheating and reflow welding curves
Digital pressure display with preset pressure range and overvoltage protection
PLC control with 7-inch color touch screen LCD display
Real-time temperature curve display with Chinese menu interface
Password protection, system self-inspection, and fault alarm functions
Microcomputer control for precise and stable operation
Suitable for high density TAB, TCP bonding and FPC, FFC, PCB welding
Minimal vibration, low noise, and stable voltage operation
Titanium alloy head for fast heating/cooling and corrosion resistance
Single head double fixture design for high efficiency and labor cost savings

Performance Advantages

Achieves super fine distance welding with digital temperature and pressure control. Welding speed of 3-5 seconds ensures high throughput and efficiency.

Application Functionality

Suitable for various high density TAB, TCP pressing applications and FPC, FFC, PCB welding operations. Versatile enough for multiple industrial applications.
