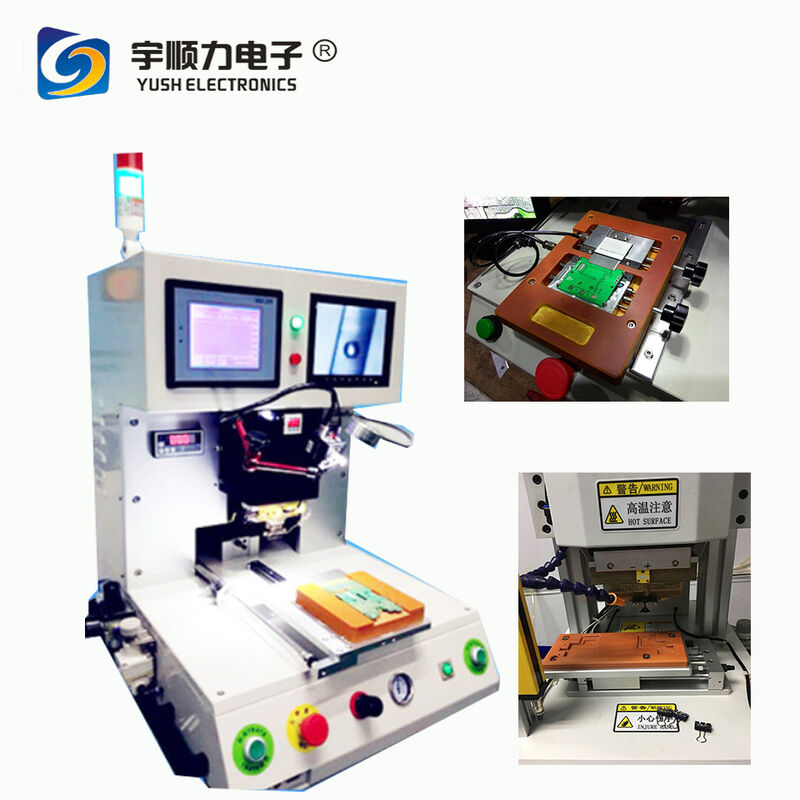

Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD

Name: Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSPC-1A
Price: 10 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: YUSH

Model Number: YSPC-1A

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $10,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Double worktable pulse bonding machine, Hot bar soldering machine for FPC, LCD bonding machine with warranty


Weight:	110 KG	Max Working Area:	200mm X 260mm
Fixture:	1 Set	Working Air Pressure:	0.45-0.7Mpa
Temperature Setting:	20-500°C	Temperature Precision:	±2°C
Hot-pressing Time:	1-99 S	Force Head Pressure:	0.1-0.6 MPa
Voltage:	110V/220V	Size:	620mm * 690mm * 570mm
Core Components:	Motor	Heating Speed:	Fast
Noise Level:	Low	Vibration Level:	Little
Soldering Head Material:	Molybdenum Alloy

Weight:	110 KG
Max Working Area:	200mm X 260mm
Fixture:	1 Set
Working Air Pressure:	0.45-0.7Mpa
Temperature Setting:	20-500°C
Temperature Precision:	±2°C
Hot-pressing Time:	1-99 S
Force Head Pressure:	0.1-0.6 MPa
Voltage:	110V/220V
Size:	620mm * 690mm * 570mm
Core Components:	Motor
Heating Speed:	Fast
Noise Level:	Low
Vibration Level:	Little
Soldering Head Material:	Molybdenum Alloy

Double Worktable Pulse Bonding Hot bar Soldering Machine for FPC/LCD

Double Worktable Pulse Bonding Hot Bar Soldering Machine for FPC/LCD

Professional Hot Bar Soldering Solution

This double worktable pulse bonding hot bar soldering machine is engineered for precision bonding of challenging components and materials. It delivers exceptional performance for flexible circuits, ribbon cables, wires, flex-to-PCB, flex-to-LCD applications, and thermo compression bonding of gold ribbon across telecommunications, computer, automotive, display, and various industrial sectors.

Advanced Technical Features

Molybdenum alloy head ensures temperature stability, fast heating speed, and extended service life
Adjustable soldering head level for uniform part assembly processing
Digital temperature control display for easy and clear operation
Digital pressure meter with preset pressure range capability
Specialized welding materials for superior bonding performance
Precise PID control with phase angle instead of pulse drive
Minimal vibration, low noise operation, and no voltage fluctuation
Molybdenum alloy soldering head provides faster warming, excellent heat transfer coefficient, and superior wear resistance compared to traditional titanium alloy
