Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                220V adjustable desiccant dry box, PCB electronic component storage box, 110V desiccant dry box


Weight:	136kgs	Power:	10 KW
Voltage:	220V/110V	Dimensions:	W1200H1820D695mm
Capacity:	1250L	Shelves:	5 Shelves
Humidity Range:	1~50RH	Cabinet Thickness:	1mm Carbon Steel
Power Consumption:	Ave. 1Wh; Max. 140W	Display Precision:	±1°C, ±3%RH
Internal Dimensions:	W1198×H1618×D645mm	Wheels:	4 Antistatic 3" Wheels
Door Seals:	Airtight Magnetic Sealers	Glass Type:	Temper Glass
Software:	Humidity Manager V2

Weight:	136kgs
Power:	10 KW
Voltage:	220V/110V
Dimensions:	W1200H1820D695mm
Capacity:	1250L
Shelves:	5 Shelves
Humidity Range:	1~50RH
Cabinet Thickness:	1mm Carbon Steel
Power Consumption:	Ave. 1Wh; Max. 140W
Display Precision:	±1°C, ±3%RH
Internal Dimensions:	W1198×H1618×D645mm
Wheels:	4 Antistatic 3" Wheels
Door Seals:	Airtight Magnetic Sealers
Glass Type:	Temper Glass
Software:	Humidity Manager V2

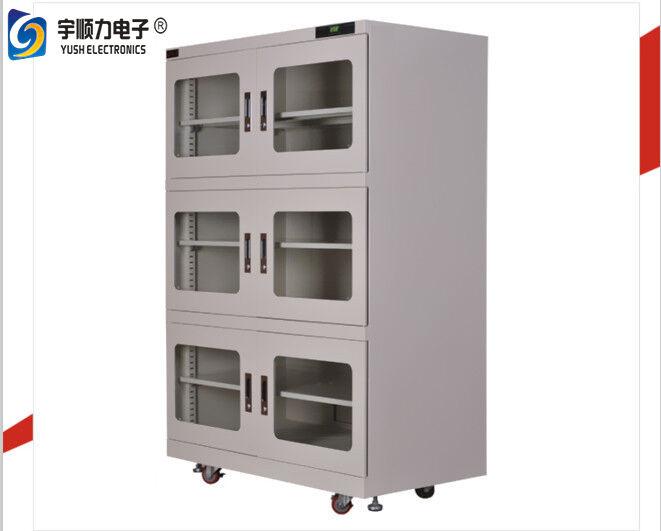

220V/110V PCB Adjustable Desiccant Dry Box for Electronic Component Storage

136kg W1200×H1820×D695mm 220V/110V PCB adjustable desiccant dry box designed for secure electronic component storage.

Product Overview

Voltage	220V/110V
Dimension (L×W×H)	W1200×H1820×D695mm
Weight	136kg
Warranty	1 Year
Color	White
Type	Dry Cabinet
Condition	New

High Performance Desiccant Dry Cabinet with advanced electronic dry box technology

YSAK-1200 Advanced Features

Precise LED control with ±3%RH precision tolerance
Adjustable humidity control range: 1~50%RH
Prevents moisture damage to sensitive components
Ideal storage solution for SMT, BGA, PCB, and LED components
Innovative dehumidifying system for faster and more powerful performance
Reduces defective rates in production lines

Technical Specifications

Humidity Range	1~50%RH
External Dimension	W1200×H1820×D695mm
Internal Dimension	W1198×H1618×D645mm
Capacity	1250L
Shelves	5 shelves
Color	White
Voltage	110V/230V (specify when ordering)
Display Precision Tolerance	±1°C, ±3%RH
Software	Humidity Manager V2 for RH and temperature curve analysis
Cabinet Structure	1mm thickness carbon steel with antistatic paint
Doors/Windows	Handles, airtight magnetic sealers and tempered glass
Wheels	4 antistatic 3" wheels, 2 with brakes
Power Consumption	Average 1Wh; Maximum 140W
