Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                fully automatic SMT wave solder conveyor, wave soldering machine out feed conveyer, PCB depaneling machine conveyor system


Weight:	48Kg	Voltage:	220V
Machine Type:	Conveyor	Model:	YSL-400
Dimensions:	12004901200(mm)	PCB Width:	0-400(mm)
PCB Direction:	L-R	Conveyor Speed:	0-4000(mm)/Min
Motor:	1P AC220V 50/60HZ 15W	Power Supply:	1P AC220V 50/60HZ
Conveyor Height:	750-1200mm(adjustable)	Belt Material:	ESD Belt
Conveyor Length:	400±800(mm)	Core Components:	Motor, Pump
PCB Angle:	6-7°

Weight:	48Kg
Voltage:	220V
Machine Type:	Conveyor
Model:	YSL-400
Dimensions:	12004901200(mm)
PCB Width:	0-400(mm)
PCB Direction:	L-R
Conveyor Speed:	0-4000(mm)/Min
Motor:	1P AC220V 50/60HZ 15W
Power Supply:	1P AC220V 50/60HZ
Conveyor Height:	750-1200mm(adjustable)
Belt Material:	ESD Belt
Conveyor Length:	400±800(mm)
Core Components:	Motor, Pump
PCB Angle:	6-7°

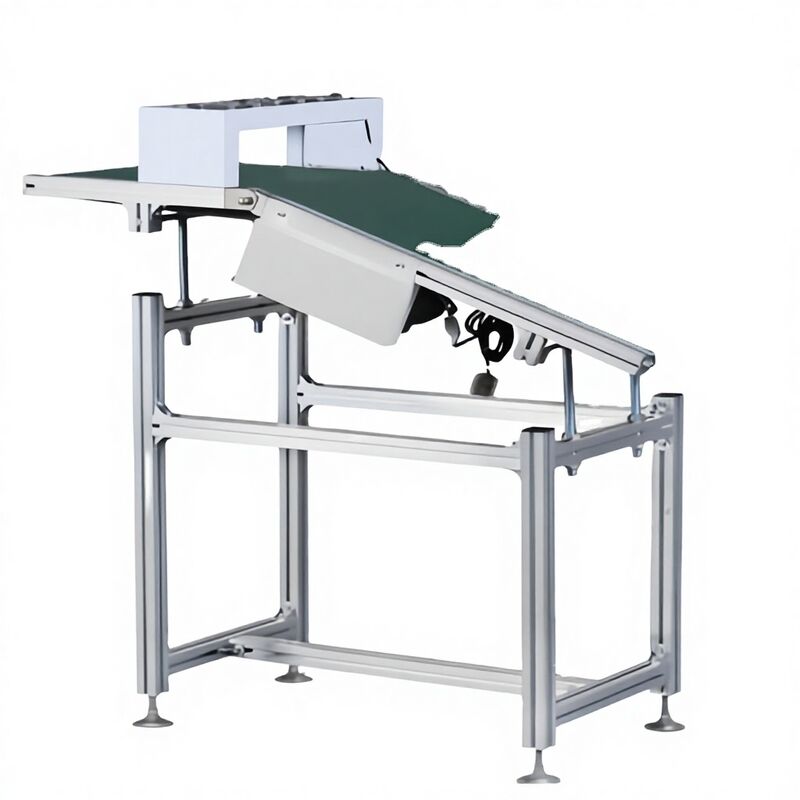

Fully Automatic SMT Wave Solder Out Feed Conveyer for Wave Soldering Machine

Fully Automatic SMT Wave Solder Out Feed Conveyer

This fully automatic conveyor system is designed to unload PCBs or pallets from wave soldering machines, providing efficient and reliable material handling for SMT production lines.

Key Features

Unloads PCBs or pallets from wave soldering machines at 6-7° angle
Adjustable transmission speed, transfer height, and track angle
Optional cooling fan installation for PCB and component protection
Special ESD belt and track design for smooth transmission and stable operation

Technical Specifications

Model	YS-400
Dimensions (L×W×H)	1200 × 490 × 1200 (mm)
PCB Width	0-400 (mm)
PCB Direction	L-R
Conveyor Speed	0-4000 (mm)/Min
Motor	1P AC220V 50/60HZ 15W
Power Supply	1P AC220V 50/60HZ
Conveyor Height	750-1200mm (adjustable)
Belt Material	ESD Belt
Conveyor Length	400±800 (mm)
Weight	Approx. 48Kg
