Name: High Efficient OK/NG Dual Track Unloader for Smt Line
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-250SNG
Price: 252.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: YUSH

Model Number: YS-250SNG

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $4,500 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT line PCB unloader, dual track depaneling machine, high efficiency OK/NG unloader


Weight:	210kg	Model:	YS-250SNG
External Dimension:	L1690W1270H1665mm	Guide Rail Material:	Frosted Aluminum Profile
Drive Motor:	Huichuan Servo Motor	Clamp Structure:	Yadeke Pneumatic
Push Plate Length:	0.6M	Magazine Dimensions:	W320L355H570mm
PCB Dimensions:	L330*W250	Direction:	Right To Left/left To Right
Lift Platform Pitch:	10,20,30,40,50	Control System:	Panasonic PLC
Storage Capacity OK:	50 Panels	Storage Capacity NG:	10 Panels
Core Components:	PLC, Engine, Bearing, Gearbox, Motor

Weight:	210kg
Model:	YS-250SNG
External Dimension:	L1690W1270H1665mm
Guide Rail Material:	Frosted Aluminum Profile
Drive Motor:	Huichuan Servo Motor
Clamp Structure:	Yadeke Pneumatic
Push Plate Length:	0.6M
Magazine Dimensions:	W320L355H570mm
PCB Dimensions:	L330*W250
Direction:	Right To Left/left To Right
Lift Platform Pitch:	10,20,30,40,50
Control System:	Panasonic PLC
Storage Capacity OK:	50 Panels
Storage Capacity NG:	10 Panels
Core Components:	PLC, Engine, Bearing, Gearbox, Motor

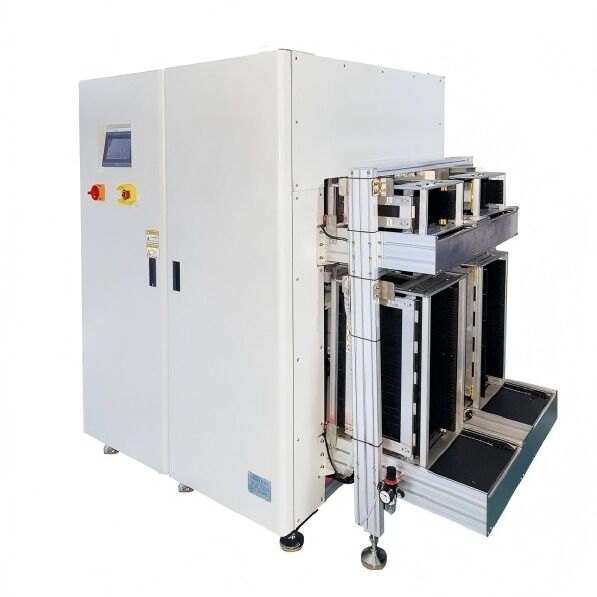

High Efficient OK/NG Dual Track Unloader for Smt Line

High Efficient OK/NG Dual Track Unloader for SMT Line

Product Features

Strong and stable mechanical design for reliable operation
PLC control system with LED TFT touch screen control panel
Capacity to store 50 pieces of OK panels and 10 pieces of NG panels
Special anti-clamping plate structure with fool-proof mechanism
Automatic storage system for OK/NG PCB classification

Technical Specifications

External Dimensions	L1690 × W1270 × H1665 mm
Guide Rail System	Special national standard frosted aluminum profile with thousand-bird plastic chain
Drive System	Huichuan servo motor driving ball screw for magazine vertical movement
Clamp Structure	Yadeke pneumatic clamp mechanism
Push Plates	Two sets of 0.6M long transplantable push plates included
Magazine Specification	W320 × L355 × H570 mm
PCB Specification	L330 × W250 mm
Direction	Configurable from right to left or left to right
Lift Platform Pitch Selection	10, 20, 30, 40, 50 mm increments
Control System	Panasonic PLC programmable controller
