                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                double-track PCB depaneling machine, mechanical PCB plate collector, stable PCB depaneling plate collector


Weight:	210kg	Machine Type:	Dual Track Unloader
External Dimension:	L1600W1500H1660mm	Guide Rail Material:	Frosted Aluminum Profile
Motor Power:	90W	Motor Type:	Taiwan's Special Right-angle Motor
Magazine Dimensions:	W320L355H570mm	PCB Dimensions:	L330*W250
Lift Platform Pitch:	10,20,30,40,50	PLC Controller:	Huichuan PLC
Control Panel:	Touch Screen	Clamp Structure:	Pneumatic
Conveyor Length:	0.65M	Core Components:	PLC, Engine, Bearing, Gearbox, Motor
Guide Rail Chain:	Thousand-bird Plastic Chain

Weight:	210kg
Machine Type:	Dual Track Unloader
External Dimension:	L1600W1500H1660mm
Guide Rail Material:	Frosted Aluminum Profile
Motor Power:	90W
Motor Type:	Taiwan's Special Right-angle Motor
Magazine Dimensions:	W320L355H570mm
PCB Dimensions:	L330*W250
Lift Platform Pitch:	10,20,30,40,50
PLC Controller:	Huichuan PLC
Control Panel:	Touch Screen
Clamp Structure:	Pneumatic
Conveyor Length:	0.65M
Core Components:	PLC, Engine, Bearing, Gearbox, Motor
Guide Rail Chain:	Thousand-bird Plastic Chain

Strong and Stable Mechanical Design Double-track Plate Collector

This industrial-grade double-track plate collector features a robust mechanical design engineered for precision and reliability in PCB handling applications.

Technical Specifications

External Dimensions: L1600 × W1500 × H1660 mm

Magazine Specification: W320 × L355 × H570 mm

PCB Specification: L330 × W250 mm

Lift Platform Pitch Selection: 10, 20, 30, 40, 50 mm

Key Features

Special national standard frosted aluminum profile guide rail with thousand-bird plastic chain
90W Taiwan-made right-angle motor drives ball screw for magazine step up/down movement
Yadeke pneumatic clamp structure for secure holding
Includes 0.65M long transplantable push plate conveyor system
Huichuan PLC programmable controller for precise operation
Taiwan-made joint-venture display and control touch screen interface

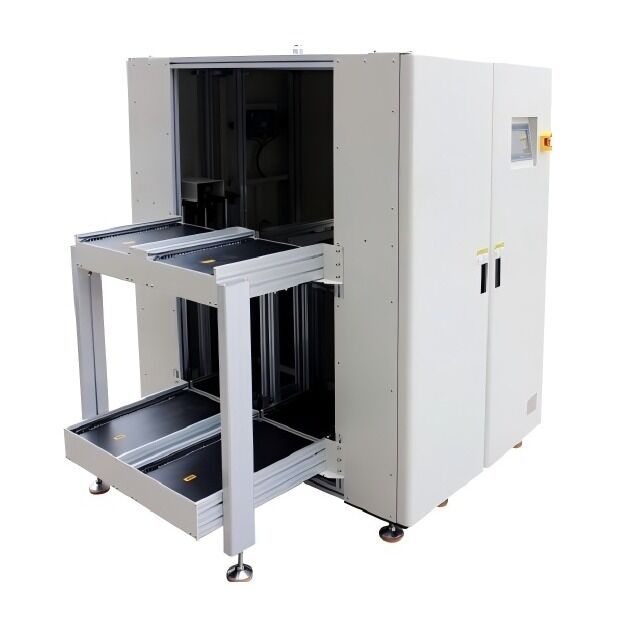

Product Visualization
