                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT production line unloader, PCB depaneling stacking machine, smart stacking unloader machine


Weight:	200kg	Air Pressure:	0.4-0.6MPa
Power Supply:	Single-phase 220V50HZ	Dimensions:	113015001660mm
Magazine Dimensions:	320355570mm	PCB Dimensions:	L330*W250
Lift Pitch:	10.20.30.40.50	Motor Power:	90W
Control System:	PLC Programmable Controller	Feed Time:	<5 Seconds
Guide Rail Material:	Frosted Aluminum Profile	Chain Type:	Thousand-bird Plastic Chain
Motor Type:	Right-angle Motor	Drive Mechanism:	Ball Screw
Control Panel:	LED TFT Touch Screen

Weight:	200kg
Air Pressure:	0.4-0.6MPa
Power Supply:	Single-phase 220V50HZ
Dimensions:	113015001660mm
Magazine Dimensions:	320355570mm
PCB Dimensions:	L330*W250
Lift Pitch:	10.20.30.40.50
Motor Power:	90W
Control System:	PLC Programmable Controller
Feed Time:	<5 Seconds
Guide Rail Material:	Frosted Aluminum Profile
Chain Type:	Thousand-bird Plastic Chain
Motor Type:	Right-angle Motor
Drive Mechanism:	Ball Screw
Control Panel:	LED TFT Touch Screen

Smart Stacking Unloader Is Suitable for SMT Production Lines.

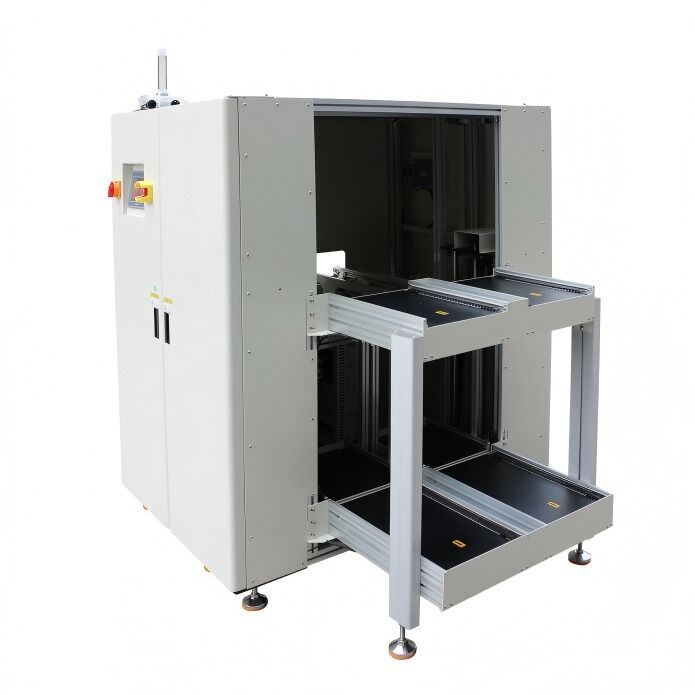

Smart Stacking Unloader for SMT Production Lines

Product Overview

This automated stacking unloader is specifically designed for SMT production lines, providing efficient PCB handling with precise control and reliable operation.

Key Features

Robust and stable mechanical design for continuous operation
PLC control system with programmable sheet feeding timing
Rapid operation with cycle times under 5 seconds
LED TFT touch screen control panel for intuitive operation
Pass-through function for continuous PCB board transfer

Technical Specifications

Parameter	Specification
External Dimensions	1130 × 1500 × 1660 mm
Guide Rail System	National standard frosted aluminum profile with thousand-bird plastic chain
Drive System	90W Taiwan special right-angle motor driving ball screw for magazine vertical movement
Magazine Specification	320mm (W) × 355mm (L) × 570mm (H)
PCB Specification	330mm (L) × 250mm (W)
Lift Platform Pitch Selection	10, 20, 30, 40, 50 mm increments
Control System	Huichuan PLC programmable controller
Power Supply	Single-phase 220V 50HZ
Air Source Requirement	0.4 - 0.6 MPa
Electrical Cabinet	Included (1 set)
