                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                automatic PCB loader unloader machine, PCB depaneling loader with automation, automated PCB unloader for depaneling


Weight:	145 KG	Voltage:	220V
Air Pressure:	4~6 Kgf/cm	Time Feed PCB:	6 Seconds Approx
Magazine Change Time:	30 Seconds Approx	Power Consumption:	100-230 VAC, 1ph, 300VA Max
Air Consumption:	4-6 Bar, 10Ltr/min Max	Conveyor Height:	910±20mm
Conveyor Direction:	L-R / R-L (Option)	PCB Thickness:	0.4mm Min
No Of Magazine:	Upper Conveyor, 1 Magazine / Lower Conveyor, Magazine	Indexing Pitch:	1-4 (10mm Pitch)
Core Components:	Motor	Power Source:	100-230 VAC
Air Pressure Range:	4-6 Bar

Weight:	145 KG
Voltage:	220V
Air Pressure:	4~6 Kgf/cm
Time Feed PCB:	6 Seconds Approx
Magazine Change Time:	30 Seconds Approx
Power Consumption:	100-230 VAC, 1ph, 300VA Max
Air Consumption:	4-6 Bar, 10Ltr/min Max
Conveyor Height:	910±20mm
Conveyor Direction:	L-R / R-L (Option)
PCB Thickness:	0.4mm Min
No Of Magazine:	Upper Conveyor, 1 Magazine / Lower Conveyor, Magazine
Indexing Pitch:	1-4 (10mm Pitch)
Core Components:	Motor
Power Source:	100-230 VAC
Air Pressure Range:	4-6 Bar

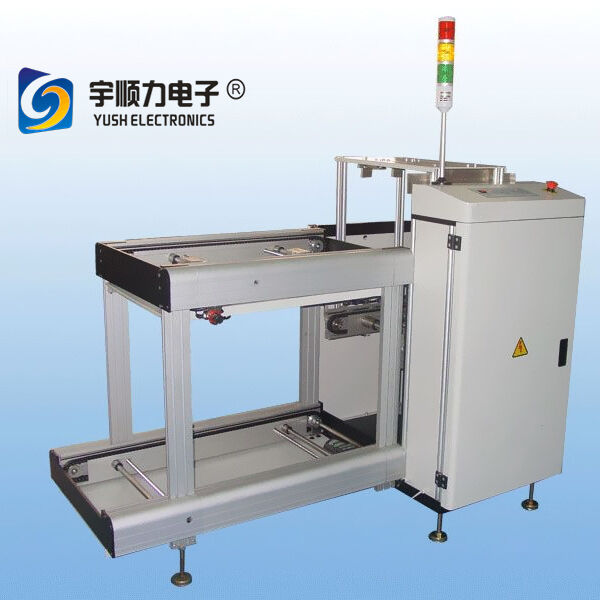

automatic PCb loader and unloader

Automatic PCB Loader and Unloader

Product Overview

This automated system is designed for efficient loading and unloading of PCBs in manufacturing environments, ensuring smooth production flow and reliable operation.

Key Features

Strong, firm and stable structural design
User-friendly membrane control panel for easy operation
Top and bottom pneumatic clamps to secure magazine rack
Guaranteed no PCB breakage during loading and unloading processes

Technical Specifications

Description	Specification
Function	Used for automated loading of PCBs
PCB Feed Time	Approximately 6 seconds
Magazine Changeover Time	Approximately 30 seconds
Power Source & Consumption	100-230 VAC (specify), 1 phase, 300VA maximum
Air Pressure & Consumption	4-6 bar, 10 liters/minute maximum
Conveyor Height	910±20mm (or specify)
Conveyor Direction	Left to Right / Right to Left (option)
PCB Thickness	0.4mm minimum
Number of Magazines	Upper conveyor: 1 magazine / Lower conveyor: 1 magazine
Indexing Pitch	1-4 (10mm pitch)
