Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB cleaning machine high efficiency, PCB depaneling machine with warranty, high efficiency PCB cleaning equipment


Weight:	200 KG	Voltage:	220V
Cycle Time:	8 Seconds	PCB Thickness:	0.6-4mm
Conveyor Speed:	0.5-20m/min	Power Source:	AC 220V, 50/60Hz, 1 Phase
Conveyor Height:	950±30mm	Machine Dimensions:	650x976x1380
Effective PCB Size:	80x80 - 530x460	Power Consumption:	150W Max
Air Pressure:	4-6 Bar	Air Consumption:	10 L/min Max
Core Components:	PLC, Engine, Bearing, Gearbox, Motor	Monitoring Data Save:	30 Days
SMEMA Compatibility:	Yes

Weight:	200 KG
Voltage:	220V
Cycle Time:	8 Seconds
PCB Thickness:	0.6-4mm
Conveyor Speed:	0.5-20m/min
Power Source:	AC 220V, 50/60Hz, 1 Phase
Conveyor Height:	950±30mm
Machine Dimensions:	650x976x1380
Effective PCB Size:	80x80 - 530x460
Power Consumption:	150W Max
Air Pressure:	4-6 Bar
Air Consumption:	10 L/min Max
Core Components:	PLC, Engine, Bearing, Gearbox, Motor
Monitoring Data Save:	30 Days
SMEMA Compatibility:	Yes

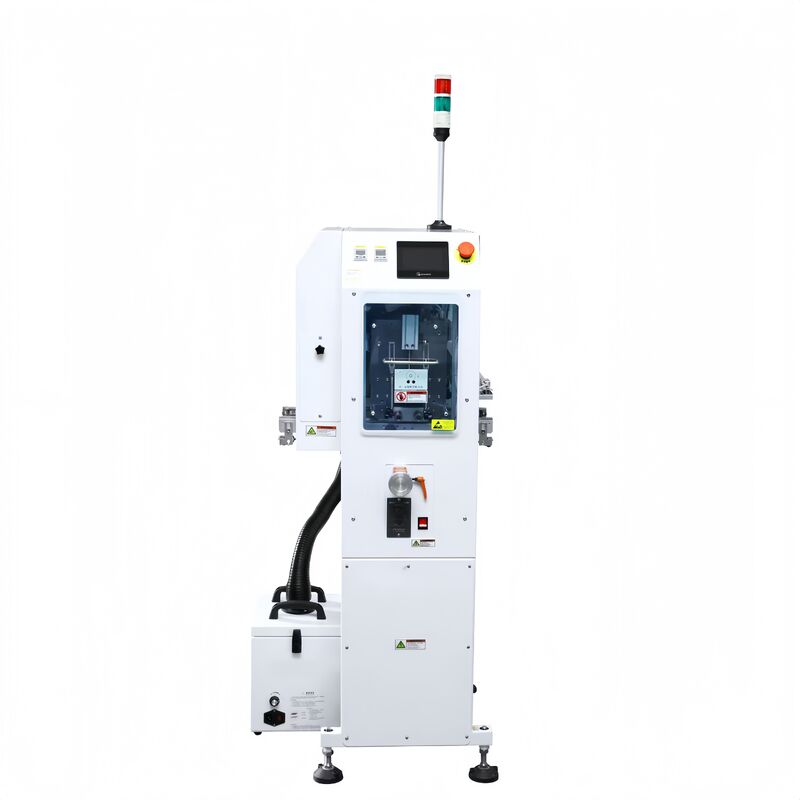

High Quality and High Efficiency PCB Cleaning Machine

Key Features

Real-Time Electrostatic Monitoring System with 30-day data storage
User-friendly touch screen control panel
Keyence Ionizer for static electricity removal
Pull-out design for easy maintenance
Conveyor height: 950±30mm
SMEMA compatible
Available in single side or double side configurations

Available Options

External brush with vacuum for dust absorption
Additional ionizers for enhanced static elimination
Automatic width adjustment
Safety interlock system

Technical Specifications

Specification	Value
Safety Interlocker	YSM-055HD3TXL-BR-IO
Machine Dimensions	650x976x1380 mm
Effective PCB Size (LxW)	80x80 - 530x460 mm
Power Consumption	150W Max
Air Pressure & Consumption	4-6 bar, 10 l/min Max
