High Standard Visible Easy Operation Interface High-Efficiency PCBA Cleaning Machine

Name: High Standard Visible Easy Operation Interface High-Efficiency PCBA Cleaning Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-5600
Price: 14.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: YUSH

Model Number: YS-5600

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $13,800-16,800 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                high-efficiency PCBA cleaning machine, visible interface PCB depaneling machine, easy operation PCBA cleaning equipment


Weight:	460 KG	Cleaning Basket Size:	L610 X W560 X H100 (mm) X2 Layers
Spray Tank Capacity:	17L	Concentrate Capacity:	32L
Dilution Capacity:	60L	Clean Time:	5~20min
Rinse Time:	1~2min/times	Rinse Times:	1~99times
Hot Air Dry Time:	10~30min	Detergent Heat Temp:	Room Temp~60°C
PCB Hot Air Temp:	Room Temp~99°C	Resistivity Range:	0~18MΩ
DI Water Supply:	30~65L/Min	DI Water Pressure:	0.2~0.4Mpa
Power Supply:	AC380V/50A/50HZ,30KW,0.5Mpa

Weight:	460 KG
Cleaning Basket Size:	L610 X W560 X H100 (mm) X2 Layers
Spray Tank Capacity:	17L
Concentrate Capacity:	32L
Dilution Capacity:	60L
Clean Time:	5~20min
Rinse Time:	1~2min/times
Rinse Times:	1~99times
Hot Air Dry Time:	10~30min
Detergent Heat Temp:	Room Temp~60°C
PCB Hot Air Temp:	Room Temp~99°C
Resistivity Range:	0~18MΩ
DI Water Supply:	30~65L/Min
DI Water Pressure:	0.2~0.4Mpa
Power Supply:	AC380V/50A/50HZ,30KW,0.5Mpa

High Standard Visible Easy Operation Interface High-Efficiency PCBA Cleaning Machine

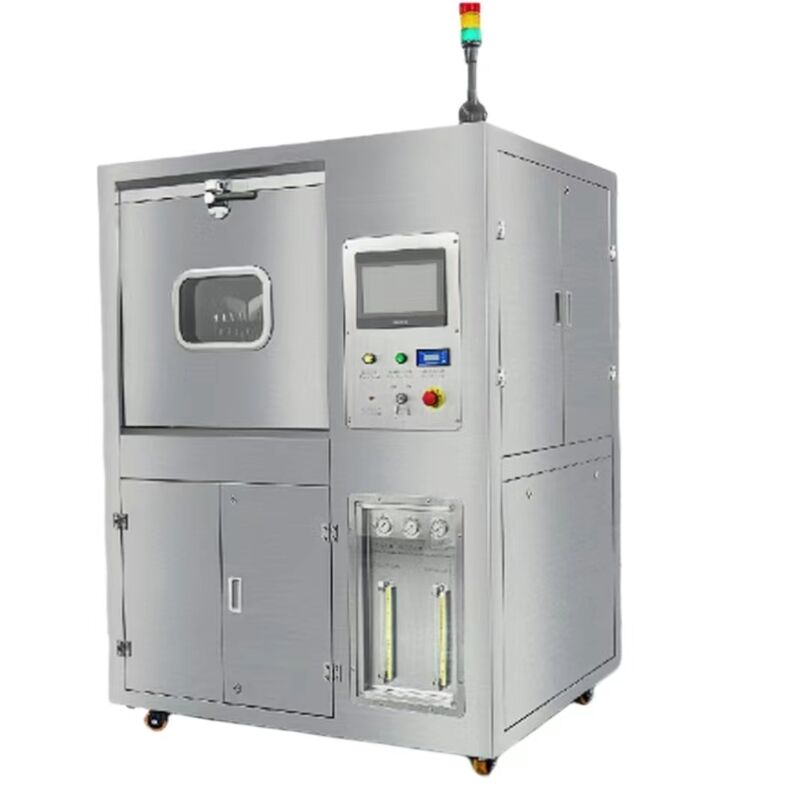

YS-5600 High Standard Visible Easy Operation Interface High-Efficiency PCBA Cleaning Machine

Key Features

Effectively cleans rosin flux, water-soluble flux, non-clean flux, solder paste and other organic/inorganic contaminants
2-layer cleaning basket: 610mm(L) × 560mm(W) × 100mm(H) per layer
Large observation window for visible process monitoring
Heated detergent system improves cleaning efficiency and reduces cycle time
Easy operation interface with quick parameter settings and password protection
Internal filtration system for detergent reuse with real-time DI water resistivity monitoring (0-18 MΩ)
Compressed air system recovers remaining detergent from pumps and pipes, saving up to 50% detergent
High cleanliness standards meeting IPC-610D Class I requirements for ionic contamination
Durable SUS304 stainless steel construction

Technical Specifications

Model	YS-5600
Cleaning Basket Size	L610 × W560 × H100 (mm) × 2 layers
Spray Tank Capacity	17L
Concentrate Capacity	32L
Dilution Capacity	60L
Clean Time	5-20 minutes
Rinse Time	1-2 minutes per cycle
Rinse Cycles	1-99 times
Hot Air Dry Time	10-30 minutes
Detergent Heating Temperature	Room temperature to 60°C
PCB Hot Air Dry Temperature	Room temperature to 99°C
Resistivity Range	0-18 MΩ
Detergent Filter	0.22μm
Rinse Water Filter	0.22μm
Air Filter	10μm
DI Water Supply	30-65 L/Min
DI Water Pressure	0.2-0.4 MPa
Vent Size	Φ76 × H50 (mm)
Power/Air Supply	AC380V/50A/50HZ, 30KW, 0.5MPa
Machine Dimensions	L1300 × W1200 × H1850 (mm)
Machine Weight	460 kg

Manufacturer Profile

YUSH Electronic Technology Co., Ltd. was founded in 2005 and is located in Jiangsu, China's manufacturing hub. The company specializes in professional PCB separator and depaneling electronic equipment machinery.

YUSH features advanced production equipment and an experienced development team, with half of the staff having over 10 years of experience in the electronic equipment industry.

Since beginning development in 2004, the company has focused on product quality, safety, and innovation, producing high-quality, stable-performance, cost-effective PCB separation equipment including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router types.

YUSH products serve customers worldwide and the company has become one of China's largest PCB separator production bases.
