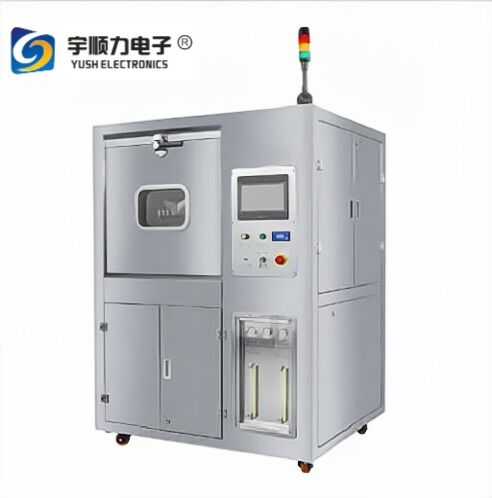

PCBA Cleaning Machine Cleaner YS-5600
The YS-5600 is an off-line, compact, energy-saving, and environmentally friendly batch cleaning system designed for high-end PCBA cleaning applications. This automated machine completes the entire cleaning, rinsing, and drying process within a clean chamber with a single start button operation.
The YS-5600 effectively removes various residues from SMT/THT welded PCBAs, including rosin flux, water-soluble flux, non-clean flux, solder paste, and other organic and inorganic contaminants. It is primarily used in aviation, aerospace, medical, new energy, automotive electronics, and instrumentation industries, making it particularly suitable for small batch, multi-type PCBA cleaning operations.
Key Features
- Effectively cleans rosin flux, water-soluble flux, non-clean flux, solder paste, and other organic/inorganic contaminants
- Two-layer cleaning basket: 610mm(L) × 560mm(W) × 100mm(H) × 2 layers
- Process visibility through large observation window
- Cleaning detergent heating system improves efficiency and reduces cleaning time
- Easy operation interface with quick parameter setting and password protection
- Internal filter enables detergent reuse with real-time DI water resistivity monitoring (0-18 MΩ range)
- Compressed air system recovers remaining detergent from pumps and pipes, saving up to 50% detergent
- High standard cleanliness meeting IPC-610D Class I requirements for ionic contamination
- Durable SUS304 stainless steel construction
Technical Specifications - YS-5600
| Cleaning basket size | L610 × W560 × H100 (mm) × 2 layers |
| Spray tank capacity | 17L |
| Concentrate capacity | 32L |
| Dilution capacity | 60L |
| Detergent heat temperature | Room temperature ~ 60℃ |
| PCB hot air drying temperature | Room temperature ~ 99℃ |
| Resistivity range | 0 ~ 18 MΩ |
| Detergent filter | 0.22μm |
| DI water supply | 30 ~ 65 L/Min |
| Power/Air supply | AC380V/50A/50HZ, 30KW, 0.5Mpa |
| Machine size | L1300 × W1200 × H1850 (mm) |
| Machine weight | 460KG |
