High-Efficiency In-Line PCB Cleaning Machine for Continuous Manufacturing Processes
High-Efficiency In-Line PCB Cleaning Machine for Continuous Manufacturing Processes
High-Efficiency In-Line PCB Cleaning Machine for Continuous Manufacturing Processes
High-Efficiency In-Line PCB Cleaning Machine for Continuous Manufacturing Processes
High-Efficiency In-Line PCB Cleaning Machine for Continuous Manufacturing Processes
High-Efficiency In-Line PCB Cleaning Machine for Continuous Manufacturing Processes

High-Efficiency In-Line PCB Cleaning Machine for Continuous Manufacturing Processes

Product Details

Place of Origin: Guangdong, China

Brand Name: YUSH

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $23,000 / set

Get Best Price

Product Details

Product Description
Highlight:

High-Efficiency PCB cleaning machine

,

In-line PCB depaneling machine

,

Continuous manufacturing PCB cleaner

Weight:
185 Kg
Power:
10 KW
Voltage:
220V, 110V
Model:
YS-750
Max Stencil Size:
L750 X W750 X H40 Mm
Liquid Tank Capacity:
Max: 40L; Min: 20L
Clean Time:
4~6 Min
Dry Time:
4~10 Min
Air Supply:
0.5~0.7 Mpa
Air Consumption:
400~600 L/min
Filter System:
20um/5um/1um (3 Level)
Machine Size:
L700 X W1000 X H1650 Mm
Machine Weight:
185 Kg
Material:
SUS 304
Lifespan:
10 Years
Weight:
185 Kg
Power:
10 KW
Voltage:
220V, 110V
Model:
YS-750
Max Stencil Size:
L750 X W750 X H40 Mm
Liquid Tank Capacity:
Max: 40L; Min: 20L
Clean Time:
4~6 Min
Dry Time:
4~10 Min
Air Supply:
0.5~0.7 Mpa
Air Consumption:
400~600 L/min
Filter System:
20um/5um/1um (3 Level)
Machine Size:
L700 X W1000 X H1650 Mm
Machine Weight:
185 Kg
Material:
SUS 304
Lifespan:
10 Years
High-Efficiency In-Line PCB Cleaning Machine for Continuous Manufacturing Processes
High-Efficiency In-Line PCB Cleaning Machine for Continuous Manufacturing Processes
High-Efficiency In-Line PCB Cleaning Machine for Continuous Manufacturing Processes 0 High-Efficiency In-Line PCB Cleaning Machine for Continuous Manufacturing Processes 1

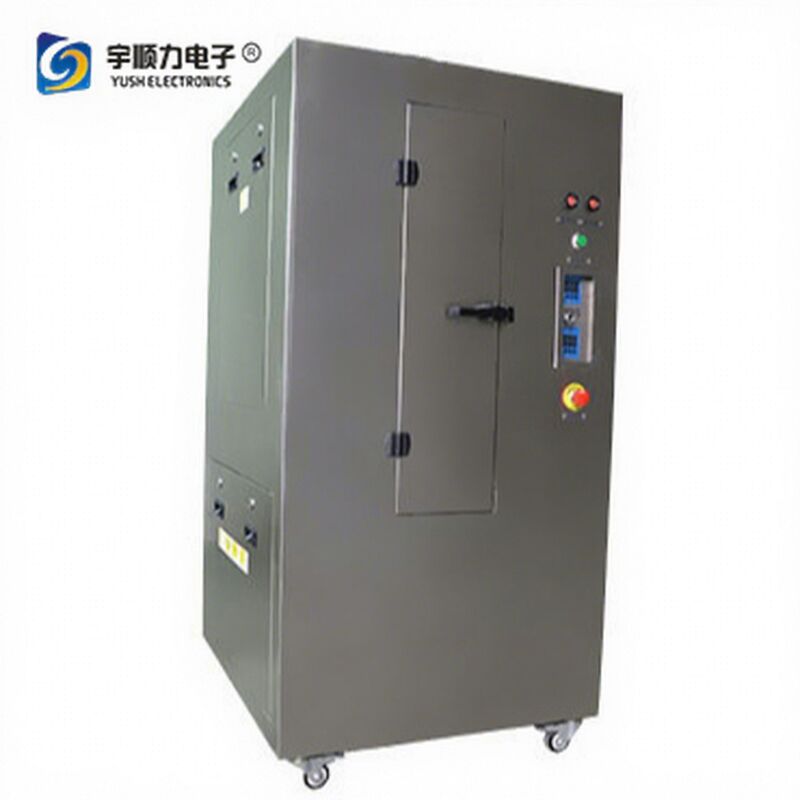

The YS-750 pneumatic stencil cleaner is engineered for solder paste and red glue printing stencil cleaning in SMT processes. Powered by compressed air and constructed with premium pneumatic components through advanced manufacturing processes, this machine delivers efficient, reliable performance and superior cleaning results. With simple "one-button" operation, the system automatically completes both cleaning and drying cycles. The specially designed piping and patented rotation pod system ensure consistent jet pressure across the stencil surface.
High-Efficiency In-Line PCB Cleaning Machine for Continuous Manufacturing Processes 2 High-Efficiency In-Line PCB Cleaning Machine for Continuous Manufacturing Processes 3
Machine Features
  • Ultrasonic Cleaning Machines and Stencil Ultrasonic Cleaning Machines
  • 3-level precise filtering system for clean liquid recycling and reuse
  • Premium international pneumatic components ensure machine stability and reliability
  • SUS 304 stainless steel construction with acid and alkali corrosion resistance, designed for 10+ year lifespan
  • Fully compressed air driven operation eliminates electrical spark risks and fire hazards
  • One-button automated operation for complete clean and dry cycles
  • Specialized rotate rod and nozzle design ensures optimal cleaning quality and maintains stencil tension
  • Automatic liquid fill and drain functions for operational convenience
  • Liquid recycling system minimizes consumption and operating costs
  • Inner-lock safety door automatically stops operation when opened for operator protection
High-Efficiency In-Line PCB Cleaning Machine for Continuous Manufacturing Processes 4 High-Efficiency In-Line PCB Cleaning Machine for Continuous Manufacturing Processes 5
Technical Specifications
Model Number YS-750
Maximum Stencil Size L750 x W750 x H40 (mm)
Liquid Tank Capacity Maximum: 40L; Minimum: 20L
Cleaning Time 4-6 minutes
Drying Time 4-10 minutes
Air Supply 0.5-0.7 MPa
Air Consumption 400-600 L/min
Cleaning Type 360° rotate jet clean + compressed air blow dry
Filter System 20μm/5μm/1μm (3-level filtration)
Machine Dimensions L700 x W1000 x H1650 (mm)
Machine Weight 185 kg
Company Information
YUSH Electronic Technology Co., Ltd was founded in 2004 and is located in Jiangsu, China's manufacturing hub. We specialize in professional PCB separator and PCB depaneling electronic equipment machinery. The company maintains advanced production and processing equipment supported by an experienced development and manufacturing team, with over half of our staff possessing 10+ years of experience in the electronic equipment industry.
Since 2004, our leadership has focused on developing and manufacturing PCB separators and depaneling machines. We prioritize product quality, operational safety, and continuous innovation, resulting in high-quality, stable-performance, cost-effective products that improve production yields, increase productivity, and enhance our customers' market competitiveness. Our product range includes various PCB separation types with manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router options. Due to our commitment to quality and competitive pricing, we serve customers worldwide and have become one of China's largest PCB separator production bases.
