High Quality X-Ray Solution YSL-X5600 Microfocus X-Ray Inspection System Manufacturer

Product Details

Place of Origin: Guangdong, China

Brand Name: YUSH

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $35,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Microfocus X-Ray inspection system, PCB depaneling machine with warranty, YSL-X5600 X-Ray solution


Voltage:	220V	Power:	1.5 KW
Weight:	750 Kg	Dimensions:	85010001700 Mm
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel	Resolution:	High Resolution
Inspection Mode:	CNC Inspection	Table Control:	X, Y, Z Three-axis Motion
Speed Adjustment:	Low, Normal, High Speed	Voltage Control:	Software Set
Current Control:	Software Set	Image Settings:	Brightness, Contrast, Auto Gain, Exposure
Anti-collision System:	Maximize Tilt And Observation	Automatic Analysis:	Diameter, Cavity Proportion, Area, Roundness
Navigation:	Infrared Automatic Navigation

Voltage:	220V
Power:	1.5 KW
Weight:	750 Kg
Dimensions:	85010001700 Mm
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel
Resolution:	High Resolution
Inspection Mode:	CNC Inspection
Table Control:	X, Y, Z Three-axis Motion
Speed Adjustment:	Low, Normal, High Speed
Voltage Control:	Software Set
Current Control:	Software Set
Image Settings:	Brightness, Contrast, Auto Gain, Exposure
Anti-collision System:	Maximize Tilt And Observation
Automatic Analysis:	Diameter, Cavity Proportion, Area, Roundness
Navigation:	Infrared Automatic Navigation

High Quality X-Ray Solution YSL-X5600 Microfocus X-Ray Inspection System Manufacturer

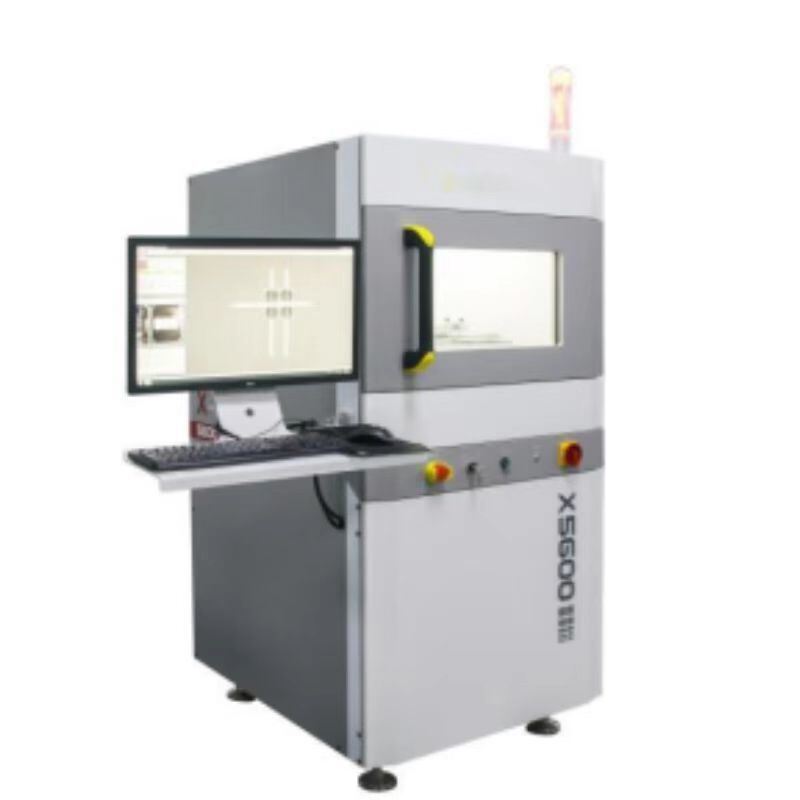

YSL-X5600 Microfocus X-Ray Inspection System

High precision microfocus X-ray inspection system for advanced electronic component analysis

Applications

Functions and Features

Application Advantages

Miniaturized equipment, easy to install and operate
Applicable to Chip, BGA/CSP, Wafer, SOP/QFN, SMT and PTU packaging, Sensors and other fields products inspection
High resolution design to get the best image in a very short time
Infrared automatic navigation and positioning function can select the shooting location quickly
CNC inspection mode which can quickly and automatically inspect multi-point array
Inclined multi-angle inspection makes it easier to inspect sample defects
Simple software operation, low operating costs
Long lifespan

Automatic Void Ratio Calculation

Enhanced BGA inspection function: YSL-X5600 can quickly select and mark a single solder ball, or select the solder balls to be inspected by matrix box; it can manually or automatically identify BGA solder balls and complete the inspection. Follow the system guidelines to easily complete the inspection process and ensure accurate and reliable inspection results.

Size Measurement

Measuring tools include distance, distance ratio, lines distance, angle, arrow mark, circle radius, points distance, circle centers distance, circumference, hand-drawn polygon, hand-drawn freeform etc., with text description capabilities.

Hardware Technical Parameters

Software Technical Parameters

Table Control

Speed of table can be adjusted by the spacebar: low, normal and high speed
X, Y, Z three-axis motion and inclined angle are controlled by keyboard
Large navigator view, clear navigation image, table will move to where you click the mouse

CNC Programming

Simply click the mouse and you can write programs
Object table moves along X, Y direction for positioning; X-ray tube move along Z direction for positioning
Voltage and current set by software
Image settings: brightness, contrast, auto gain and exposure
Users can change the pause time for program conversion
Anti-collision system can maximize the tilt and observation of the workpieces
Automatic analysis on diameter, proportion of cavity, area and roundness of BGA

X-Ray Working Principle

X-RAY Applications
