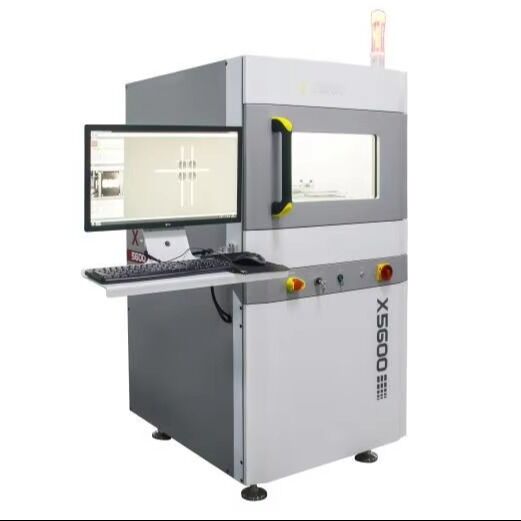

High Quality and High Efficiency X-Ray Solution YSL-X5600
High Quality and High Efficiency X-Ray Solution YSL-X5600
High Quality and High Efficiency X-Ray Solution YSL-X5600
High Quality and High Efficiency X-Ray Solution YSL-X5600
High Quality and High Efficiency X-Ray Solution YSL-X5600
High Quality and High Efficiency X-Ray Solution YSL-X5600

High Quality and High Efficiency X-Ray Solution YSL-X5600

Product Details

Place of Origin: Guangdong, China

Brand Name: YUSH

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $36,500 / set

Get Best Price

Product Details

Product Description
Highlight:

PCB depaneling machine X-ray solution

,

YSL-X5600 high efficiency depaneler

,

X-ray PCB depaneling machine

Weight:
750 KG
Core Components:
PLC, Engine, Bearing, Gearbox, Motor
Voltage:
220V
Voltage Range:
40-90kV
Current Range:
10-200 μA
Focal Spot Size:
5-15μm
Detection Accuracy:
2.5μm
Pixel Matrix:
1536*1536 Pixels
Magnification:
80X
Image Speed:
20fps
Standard Size:
380mm*240mm
Total Power:
1500W
Z Direction Movement:
Yes
X-Y Speed Adjustable:
Yes
X-ray Tube Lifespan:
Maintenance Free
Weight:
750 KG
Core Components:
PLC, Engine, Bearing, Gearbox, Motor
Voltage:
220V
Voltage Range:
40-90kV
Current Range:
10-200 μA
Focal Spot Size:
5-15μm
Detection Accuracy:
2.5μm
Pixel Matrix:
1536*1536 Pixels
Magnification:
80X
Image Speed:
20fps
Standard Size:
380mm*240mm
Total Power:
1500W
Z Direction Movement:
Yes
X-Y Speed Adjustable:
Yes
X-ray Tube Lifespan:
Maintenance Free
High Quality and High Efficiency X-Ray Solution YSL-X5600
High Quality and High Efficiency X-Ray Solution YSL-X5600
Product Functionality
  • X-ray detector moves along Z direction with adjustable X-Y table movement speed
  • Long life X-ray tube, maintenance free for life
  • Detects faults less than 2.5μm with high repeat accuracy
  • Compact design for easy placement and space efficiency
  • Large navigation view with mouse-click table positioning
High Quality and High Efficiency X-Ray Solution YSL-X5600 0
Application Advantages
  • Miniaturized equipment for easy installation and operation
  • Applicable to Chip, BGA/CSP, Wafer, SOP/QFN, SMT and PTU packaging inspection
  • Suitable for sensors and other field product inspection
  • High resolution design for optimal imaging in minimal time
  • Infrared automatic navigation and positioning for quick location selection
  • CNC inspection mode for rapid multi-point array inspection
  • Inclined multi-angle inspection for easier defect detection
  • Simple software operation with low operating costs
  • Extended equipment lifespan
High Quality and High Efficiency X-Ray Solution YSL-X5600 1
Technical Specifications
Pixel Matrix 1536 × 1536 pixels
Magnification 80X
Image Speed 20fps
Standard Size 380mm × 240mm
Total Power 1500W
