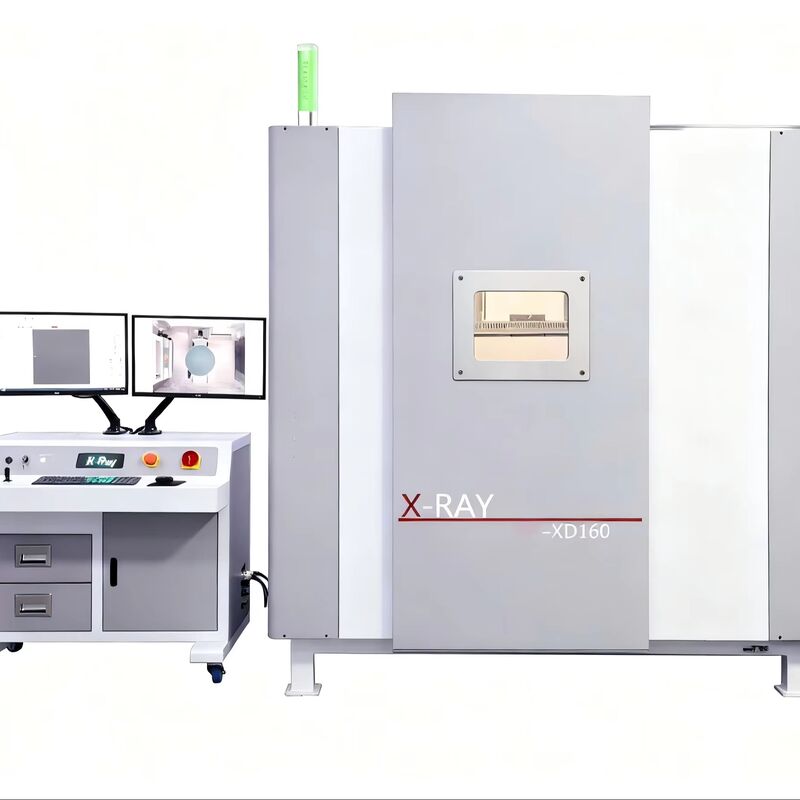

High Quality and High Efficiency YS-XD160--Die Casting X Ray Inspection Machine

Product Details

Place of Origin: Guangdong, China

Brand Name: YUSH

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $86,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                die casting X-ray inspection machine, PCB depaneling X-ray machine, high efficiency X-ray inspection


Weight:	3500 KG	Voltage:	220V
Total Power:	Max 1.3KW	Tube Voltage:	60~160KV
Tube Current:	0.2~5.0mA	Focal Size:	0.5mm
X-ray Leakage:	≤1usv/h	Dimension:	L2030×W1600×H2100mm
Stage Size:	φ500mm	Imaging Area:	433.7mm*433.7mm
Resolution:	2816*2816/ 3.24Lp/mm 15fps	Max Tilt Angle:	±30°
Core Components:	PLC, Engine, Bearing, Gearbox, Motor	Machine Type:	Vision Inspection Equipment
Detection Method:	C-type Swing Arm Six-axis Linkage

Weight:	3500 KG
Voltage:	220V
Total Power:	Max 1.3KW
Tube Voltage:	60~160KV
Tube Current:	0.2~5.0mA
Focal Size:	0.5mm
X-ray Leakage:	≤1usv/h
Dimension:	L2030×W1600×H2100mm
Stage Size:	φ500mm
Imaging Area:	433.7mm*433.7mm
Resolution:	2816*2816/ 3.24Lp/mm 15fps
Max Tilt Angle:	±30°
Core Components:	PLC, Engine, Bearing, Gearbox, Motor
Machine Type:	Vision Inspection Equipment
Detection Method:	C-type Swing Arm Six-axis Linkage

High Quality and High Efficiency YS-XD160--Die Casting X Ray Inspection Machine

YS-XD160 Die Casting X-Ray Inspection Machine

High-quality, high-efficiency X-ray inspection system designed for comprehensive defect detection in die-cast components.

Key Features

Clear detection of internal defects including sand holes and cracks in aluminum castings
Easy operation with quick setup - new product detection standards configured in 5-10 minutes
Programmable, measurable, and image-saving functions based on ergonomic design
Safety interlocking system - X-rays cannot operate unless all doors are properly closed
Multi-functional load platform with 360° rotation and movement capabilities
Versatile, customizable tooling operations for various applications
C-type swing arm six-axis linkage detection method supporting dead angle-free inspection
Real-time dynamic imaging with continuous monitoring display
Multi-panel modular observation point setting for flexible inspection workflows

Technical Specifications

X-ray Leakage Amount	≤1μSv/h
Dimension	L2030 × W1600 × H2100 mm
Stage Size	φ500 mm
Imaging Area	433.7 mm × 433.7 mm
Resolution	2816 × 2816 / 3.24 Lp/mm @ 15 fps
Maximum Tilt Angle	±30°

Applications

This equipment is primarily used for inspection of aluminum castings, iron castings, automotive parts, hardware components, refractory materials, and various industrial components. The system utilizes Automated Optical Inspection technology based on advanced image detection systems, employing X-ray fluoroscopy to convert visible light images. Flat panel detectors acquire high-definition image information for precise measurement, data storage, and automated programmed step detection.
