                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                X6600 Microfocus X-Ray Inspection System, PCB Depaneling Machine with X-Ray, Microfocus X-Ray System Manufacturer


Voltage:	220V	Power:	1700W
Weight:	1170kg	Dimensions:	1245mm X 1230mm X 1900mm
Core Components:	Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear	Table Speed:	Adjustable (low, Normal, High)
Axis Motion:	X, Y, Z Three-axis	Inclined Angle:	Keyboard Controlled
Navigation:	Large Navigator View	CNC Programming:	Mouse-click Programmable
Voltage Control:	Software Adjustable	Current Control:	Software Adjustable
Image Settings:	Brightness, Contrast, Auto Gain, Exposure	Anti-collision System:	Maximizes Tilt And Observation
Automatic Analysis:	Diameter, Cavity Proportion, Area, Roundness

Voltage:	220V
Power:	1700W
Weight:	1170kg
Dimensions:	1245mm X 1230mm X 1900mm
Core Components:	Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear
Table Speed:	Adjustable (low, Normal, High)
Axis Motion:	X, Y, Z Three-axis
Inclined Angle:	Keyboard Controlled
Navigation:	Large Navigator View
CNC Programming:	Mouse-click Programmable
Voltage Control:	Software Adjustable
Current Control:	Software Adjustable
Image Settings:	Brightness, Contrast, Auto Gain, Exposure
Anti-collision System:	Maximizes Tilt And Observation
Automatic Analysis:	Diameter, Cavity Proportion, Area, Roundness

High Quality X-Ray Solution X6600 Microfocus X-Ray Inspection System Manufacturer

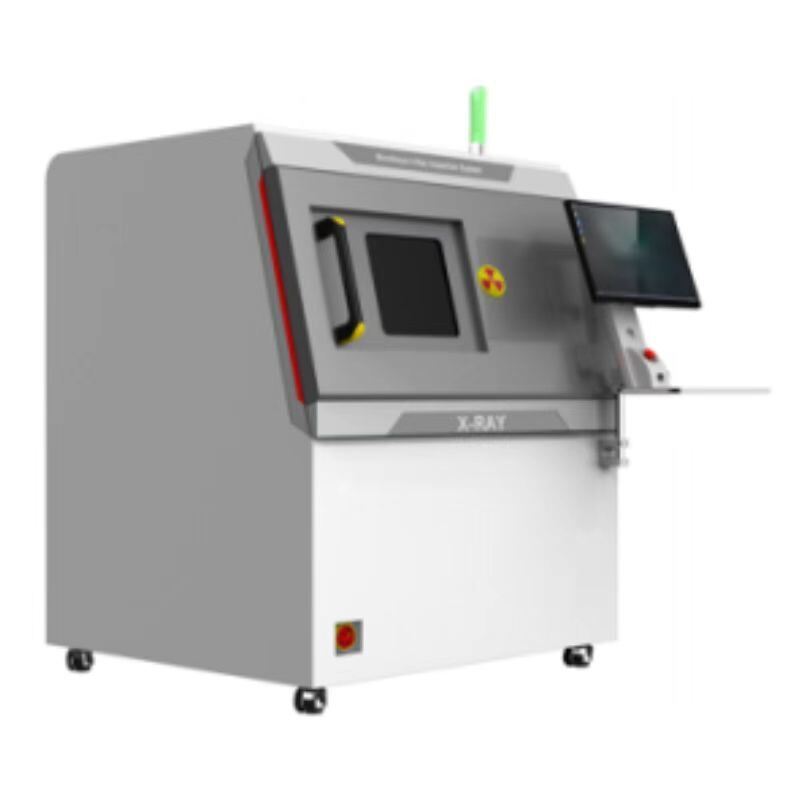

X6600 Microfocus X-Ray Inspection System

High quality industrial X-ray solution for precision inspection and analysis

Applications

Functions and Features

Hardware Technical Parameters

Software Technical Parameters

Table Control Features

Adjustable table speed with three settings: low, normal, and high speed controlled by spacebar
X, Y, Z three-axis motion and inclined angle control via keyboard
Large navigator view with clear navigation image and mouse-click positioning

CNC Programming Capabilities

Simple mouse-click programming interface
Object table moves along X, Y directions for positioning
X-ray tube and detector move along Z direction for precise positioning
Software-controlled voltage and current settings
Comprehensive image settings: brightness, contrast, auto gain and exposure
Adjustable pause time for program conversion
Anti-collision system for maximum tilt and workpiece observation
Automatic analysis of diameter, cavity proportion, area and roundness of BGA components

X-Ray Working Principle
