High Quality Online High-speed Real-time Inspection Series/YS-8500
High Quality Online High-speed Real-time Inspection Series/YS-8500
High Quality Online High-speed Real-time Inspection Series/YS-8500

High Quality Online High-speed Real-time Inspection Series/YS-8500

Product Details

Place of Origin: Guangdong, China

Brand Name: YUSH

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $30,000 / set

Get Best Price

Product Details

Product Description
Highlight:

PCB depaneling machine high-speed

,

YS-8500 real-time inspection

,

online PCB inspection machine

Voltage:
160KV
Power:
64W
Weight:
2950
Dimensions:
1600mm*1700mm*2000mm
Defect Inspection Capability:
0.5um
Inspection Methods:
2D/3D/CT
Planar CT Function:
PCT
Cone Beam CT:
Yes
Observation Mode:
360° Fixed-point
2D Void Inspection:
Optional
3D Measurement Analysis:
Optional
Core Components:
Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear
X-ray Tube Design:
COMET Open
Application Fields:
PCB, BGA, IC, IGBT, Wafer, Sensors, Relays, Micro Motors, Materials
Inspection Capability:
Non-destructive Analysis
Voltage:
160KV
Power:
64W
Weight:
2950
Dimensions:
1600mm*1700mm*2000mm
Defect Inspection Capability:
0.5um
Inspection Methods:
2D/3D/CT
Planar CT Function:
PCT
Cone Beam CT:
Yes
Observation Mode:
360° Fixed-point
2D Void Inspection:
Optional
3D Measurement Analysis:
Optional
Core Components:
Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear
X-ray Tube Design:
COMET Open
Application Fields:
PCB, BGA, IC, IGBT, Wafer, Sensors, Relays, Micro Motors, Materials
Inspection Capability:
Non-destructive Analysis
High Quality Online High-speed Real-time Inspection Series/YS-8500
High Quality Online High-speed Real-time Inspection Series/YS-8500

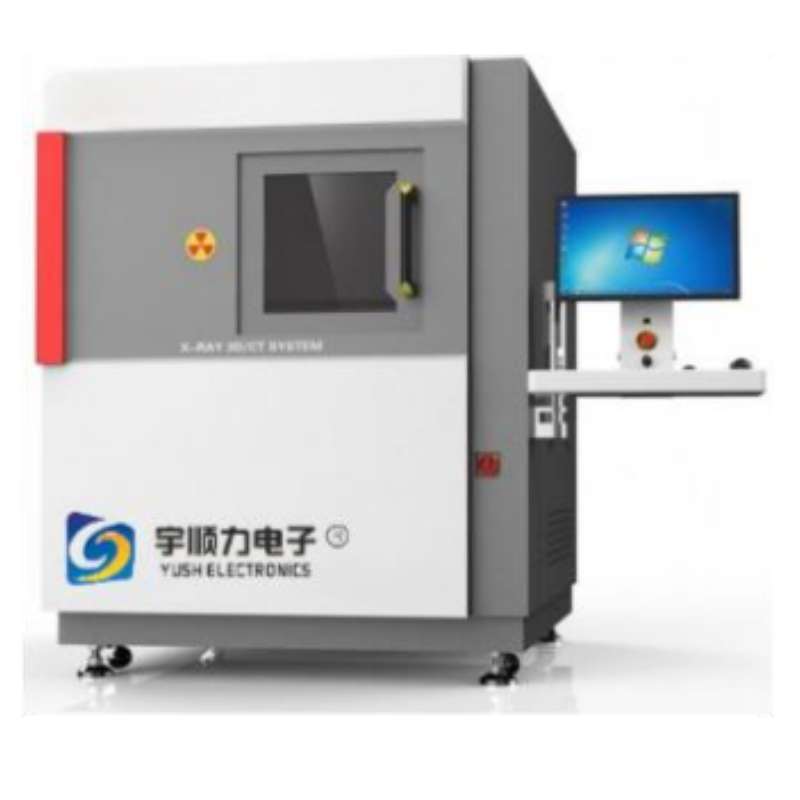

YS-8500 Universal X-Ray Inspection System
The YS-8500 utilizes COMET's open X-ray tube design, delivering exceptional defect inspection capability reaching 0.5μm. This advanced system supports multiple inspection methods including 2D, 3D, and CT imaging, making it ideal for quality inspection, 3D measurement, and non-destructive analysis applications.
Application Advantages
  • Planar CT (PCT) functionality for 3D/CT inspection of printed circuit boards, SMT components, IGBT modules, wafers, and more
  • Cone beam CT capability for comprehensive inspection of sensors, relays, micro motors, materials, and aluminum castings
  • Convenient 360° fixed-point observation mode for detailed analysis
  • Optional 2D void inspection software module
  • Optional 3D measurement and analysis software module
Application Fields
Electronics & Semiconductor: Soldering quality inspection of PCB solder joints, BGA components, integrated circuits (IC) and bond wire inspection, semiconductor package inspection and internal connection analysis, electronic power (IGBT) module inspection, wafer defect inspection (WLCSP)
Industrial Components: Inspection of sensors, relays, fuses, coils, micro drive systems, air bag control systems, micro motors (MEMS, MOEMS), cables and plugs, plastic components
Materials & Castings: Comprehensive analysis of various materials including plastics, ceramics, biological materials, optical components, and small titanium and aluminum castings
Product Parameters
High Quality Online High-speed Real-time Inspection Series/YS-8500 0
