Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Wave soldering machine for DIP line, PCB depaneling machine N350, Wave soldering machine with warranty


Voltage:	220V, 110V	Power:	10 KW
Weight:	1100 Kg	Dimensions:	4100(L)1400(W)1560(H) Mm
Core Components:	PLC, Engine, Bearing, Gearbox, Motor	Preheating Temperature Control:	3 Independent Zones
Temperature Uniformity:	±2ºC	Tin Stove Motor:	Imported High Frequency
Heating Control:	PID & IR Heating	Heating Time:	90 Minutes
Flux Spray Nozzles:	Japanese Nozzles	Flux Spray Control:	PLC Controlled
Transportation Chain:	Special Alloy Claws	Memory Function:	Black Box Storage
Fault Alarm:	Security Alarm System

Voltage:	220V, 110V
Power:	10 KW
Weight:	1100 Kg
Dimensions:	4100(L)1400(W)1560(H) Mm
Core Components:	PLC, Engine, Bearing, Gearbox, Motor
Preheating Temperature Control:	3 Independent Zones
Temperature Uniformity:	±2ºC
Tin Stove Motor:	Imported High Frequency
Heating Control:	PID & IR Heating
Heating Time:	90 Minutes
Flux Spray Nozzles:	Japanese Nozzles
Flux Spray Control:	PLC Controlled
Transportation Chain:	Special Alloy Claws
Memory Function:	Black Box Storage
Fault Alarm:	Security Alarm System

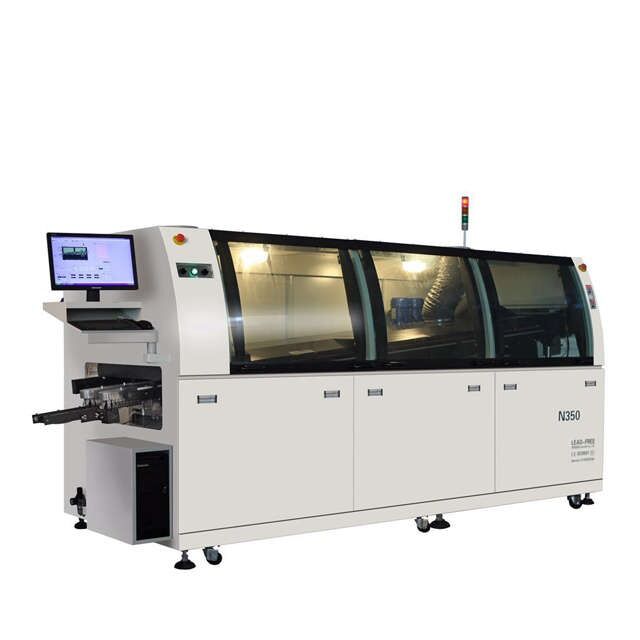

High Quality Wave Soldering Machine N350 for DIP Line

Product Overview

Advanced wave soldering system designed for efficient DIP line production with energy-saving, lead-free operation and environmental safety features.

Key Features & Benefits

Efficient, energy-saving design with lead-free, environmentally friendly operation
Automatic power system with frequency converter control and automatic board input
Precision flux spray system using scanning nozzles, Japanese components, and PLC control
Three-zone preheating system with excellent thermal uniformity (±2ºC tolerance)
Special alloy transport chain claws for non-stick performance and superior PCB welding quality
Import high-frequency conversion motor for stable tin stove performance
Independent lead-free solder furnace design for environmental safety and easy cleaning
Advanced PID control with dual infrared heating for precise temperature management
Programmable timing functions with 90-minute heating capability
Black box memory function for production management records and efficiency improvement
Automatic claw cleaning system for consistent cleanliness
Comprehensive safety alarm system for operator protection and stable performance
