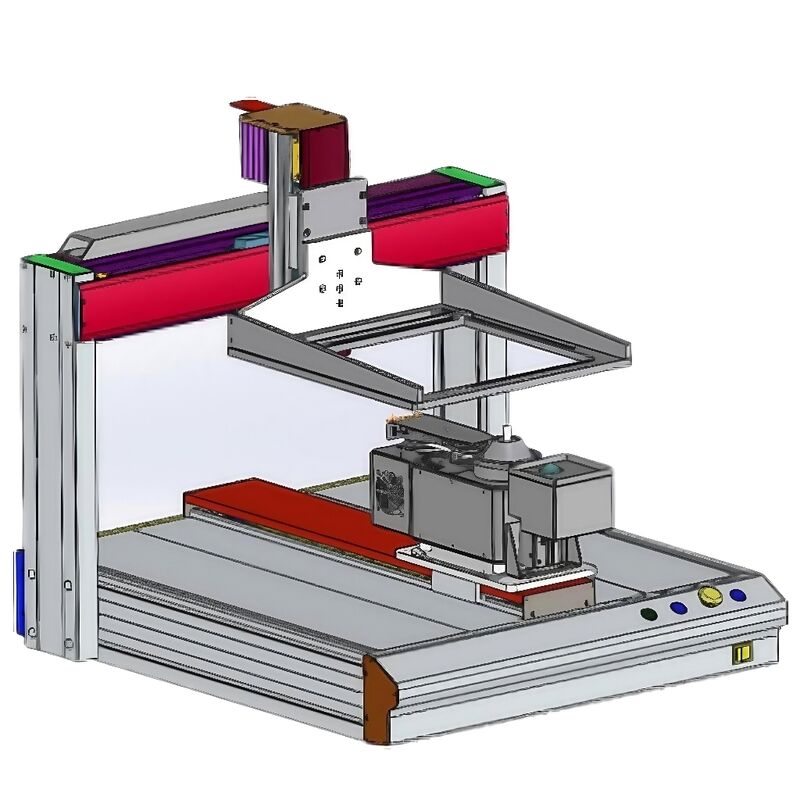

Desktop Selective Wave Soldering YS-E320

Name: Desktop Selective Wave Soldering YS-E320
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-E320
Price: 5 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: YUSH

Model Number: YS-E320

Payment & Shipping Terms

Minimum Order Quantity: 1 kilometer

Price: $5,000 / kilometer

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Desktop selective wave soldering machine, YS-E320 wave soldering system, PCB depaneling soldering equipment


Weight:	70 KG	External Dimensions:	730×800×840 Mm
PCB Board Size:	50×50~450×400 Mm	PCB Board Thickness:	0.8~3 Mm
Component Height:	Less Than 100mm Above / 50mm Below	Substrate Weight:	Less Than 5 Kilograms
Substrate Bending:	Less Than 0.5mm	Tin Furnace Capacity:	10KG
Tin Furnace Power:	2 KW	Nitrogen Purity:	99.999%
Nitrogen Consumption:	1.2-1.5 Cube H	Flux Capacity:	2 L
Nozzle Inner Diameter:	φ 3mm~φ 20mm	Power Supply:	Single-phase 220V±10%
Starting Power:	2.5KW

Weight:	70 KG
External Dimensions:	730×800×840 Mm
PCB Board Size:	50×50~450×400 Mm
PCB Board Thickness:	0.8~3 Mm
Component Height:	Less Than 100mm Above / 50mm Below
Substrate Weight:	Less Than 5 Kilograms
Substrate Bending:	Less Than 0.5mm
Tin Furnace Capacity:	10KG
Tin Furnace Power:	2 KW
Nitrogen Purity:	99.999%
Nitrogen Consumption:	1.2-1.5 Cube H
Flux Capacity:	2 L
Nozzle Inner Diameter:	φ 3mm~φ 20mm
Power Supply:	Single-phase 220V±10%
Starting Power:	2.5KW

Desktop Selective Wave Soldering YS-E320

Solve DIP Welding Challenges

The YS-E320 addresses common difficulties in DIP welding with advanced selective wave soldering technology.

Key Advantages

Flexible production for multiple varieties and small batches
Quick online welding without fixtures required
Extremely low equipment purchase cost
Reduced usage and maintenance costs
100% tin penetration rate with over 98% welding yield
Minimal floor space requirement (approximately 1 square meter)

Selective Wave Soldering Working Mode

During offline selective welding, the welding nozzle remains fixed while the PCB board moves according to programmed instructions along X, Y, and Z axes to achieve precise soldering of PCB solder joints.

Technical Specifications

Specification Item	YS-E320
Applicable PCB Board Size	L×W: 50×50~450×400 mm
Applicable PCB Board Thickness	Substrate thickness: 0.8~3 mm / Pin length: Within 3mm
Component Height	Less than 100mm above substrate / Less than 50mm below substrate
Substrate Shape and Conditions	Substrate placement edge: ≥3mm process edge / Weight including components: <5kg / Substrate bending: <0.5mm
Tin Furnace	Material: Stainless steel / Capacity: 10KG / Power: 4×500W (2KW total)
N2 Requirements	Purity: 99.999% / Pressure: 0.5MPa / Consumption: 20-30L/min (1.2-1.5 m³/h)
Flux Nozzle	Precision fluid nozzle
Flux Capacity	2L (Manual liquid addition)
Gas Source	0.5-0.7MPa
Nozzle Inner Diameter	φ3mm~φ20mm (Customizable sizes available)
Peak Height	Automatic alignment and height measurement
System Control	PC + PLC (Windows + Huichuan)
Programming Software	Supports programming with picture line drawing (Convenient and fast)
Power Supply/Power	Single-phase 220V±10% / Starting power: 2.5KW
Weight	70KG (Including 10KG solder)
External Dimensions	L×W×H: 730×800×840 mm
