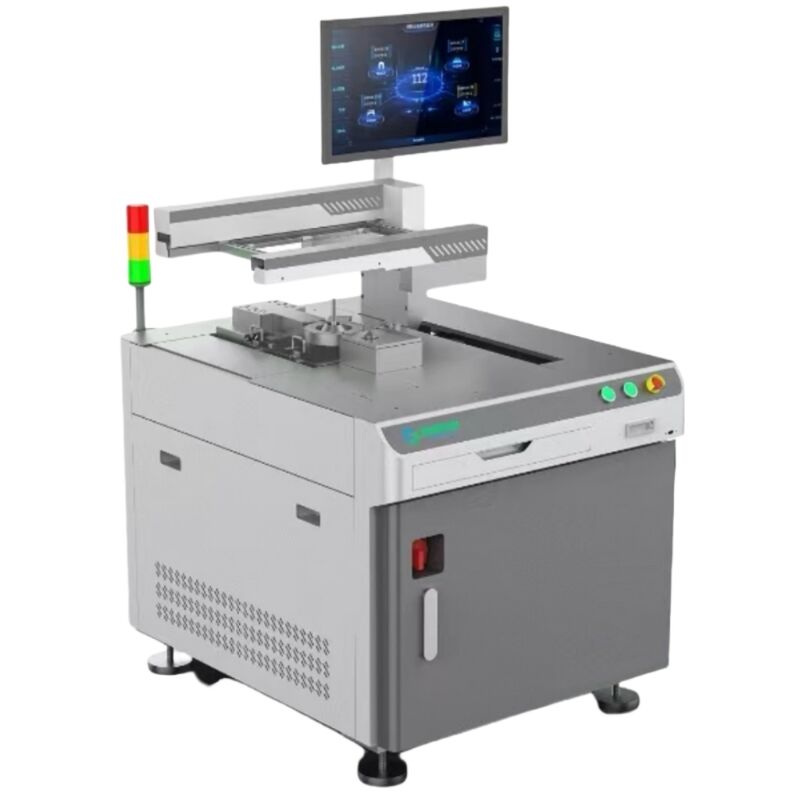

Integrated Selective Wave Soldering

Name: Integrated Selective Wave Soldering
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-450Y
Price: 10 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: YUSH

Model Number: YS-450Y

Payment & Shipping Terms

Minimum Order Quantity: 1 kilogram

Price: $10,000 / kilogram

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                selective wave soldering machine, PCB depaneling soldering equipment, integrated wave soldering system


Weight:	150KG	Model:	YS-450Y
PCB Size:	50×50~450×400 Mm	PCB Thickness:	0.8~3 Mm
Component Height:	<100mm Above, <50mm Below	Substrate Weight:	<5 Kilograms
Substrate Bending:	<0.5mm	Tin Furnace Capacity:	15KG
Tin Furnace Power:	2KW	Preheating Power:	1KW
Total Power:	3.5KW	Nitrogen Purity:	99.999%
Flux Capacity:	2 L	Nozzle Inner Diameter:	φ 3mm~φ 20mm
External Dimensions:	940×1280×1350 Mm

Weight:	150KG
Model:	YS-450Y
PCB Size:	50×50~450×400 Mm
PCB Thickness:	0.8~3 Mm
Component Height:	<100mm Above, <50mm Below
Substrate Weight:	<5 Kilograms
Substrate Bending:	<0.5mm
Tin Furnace Capacity:	15KG
Tin Furnace Power:	2KW
Preheating Power:	1KW
Total Power:	3.5KW
Nitrogen Purity:	99.999%
Flux Capacity:	2 L
Nozzle Inner Diameter:	φ 3mm~φ 20mm
External Dimensions:	940×1280×1350 Mm

Integrated Selective Wave Soldering

Advanced DIP Welding Solutions

Overcome traditional DIP welding challenges with our innovative selective wave soldering technology designed for modern manufacturing requirements.

Key Advantages

Flexible production for multiple varieties and small batches
Quick online welding without fixtures required
Extremely low equipment purchase cost
Reduced usage and maintenance costs (saving tin slag, flux, electricity and consumables)
100% tin penetration rate with over 98% welding yield
Compact footprint of approximately 1 square meter

Working Mode

During offline selective welding, the welding nozzle remains fixed while the PCB board moves according to programmed parameters along X, Y, and Z axes to achieve precise soldering of PCB solder joints.

Technical Specifications

Specification Items	YS-450Y / YS-450YT
Applicable PCB Board Size	L×W: 50×50~450×400 mm
Applicable PCB Board Thickness	Substrate thickness: 0.8~3 mm / Pin length: Within 3mm
Component Height	Less than 100mm above substrate / Less than 50mm below substrate
Substrate Shape and Conditions	Substrate placement edge: more than 3mm from substrate process edge Weight including components: less than 5 kilograms Substrate bending: less than 0.5mm
Tin Furnace	Material/Capacity: All-titanium alloy material/15KG Tin bath capacity power: 4×500W (2KW)
Preheating Power	Infrared preheating: 1KW
Total Power	AC 220V: 3.5KW
N2 Requirements	Nitrogen purity: 99.999% Pressure/Consumption: 0.5MPa / 20~30/min / 1.2 cubic meters
Flux Nozzle	0.5mm Precision fluid nozzles imported from Japan
Flux Capacity	2 L
Gas Source	0.5-0.7Mpa
Nozzle Inner Diameter	φ 3mm~φ 20mm (Customizable size)
Peak Height	Automatic alignment/height measurement
System Control	PC+PLC (Windows)
Programming Software	Support programming for picture line drawing (convenient and fast)
Video Surveillance	Real-time video monitoring for convenient welding effect observation
Power Supply/Power	Single-phase 220V±10% Starting power: 3.5KW
Weight	150KG (Containing solder: 12KG)
External Dimensions SW-450Y	L×W×H: 940×1280×1350 mm (With display)
External Dimensions SW-450YT	L×W×H: 1110×1280×1500 mm (Excluding three-color lights)
