Product Details
Place of Origin: Guangdong, China
Brand Name: YUSH
Certification: CE

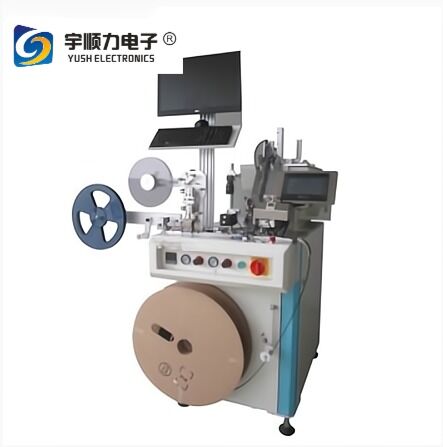

Model Number: YS-12T
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: $6,000 / set
Weight: |
160 KG |
Voltage: |
220Vac |
Power Source: |
AC200V/50HZ |
Working Air Pressure: |
0.40~0.6Mpa |
Capacity: |
3K-15K UPH |
Control System: |
Programmable Logic Controller+Touch Screen+servo Motor |
Temperature Control: |
PID Temperature Control |
Feeding And Receiving: |
Rubber Discs And Paper Discs Conforming To EIA-481 Standard |
Tape Width: |
12,16mm |
Sealing Form: |
Hot And Cold Seals |
Input Voltage: |
AC220V/50Hz |
Maximum Current: |
10A |
Machine Size: |
2030*528*583(L*W*H) |
Net Weight: |
160KG |
Selective Configuration: |
Image Detection System |
Weight: |
160 KG |
Voltage: |
220Vac |
Power Source: |
AC200V/50HZ |
Working Air Pressure: |
0.40~0.6Mpa |
Capacity: |
3K-15K UPH |
Control System: |
Programmable Logic Controller+Touch Screen+servo Motor |
Temperature Control: |
PID Temperature Control |
Feeding And Receiving: |
Rubber Discs And Paper Discs Conforming To EIA-481 Standard |
Tape Width: |
12,16mm |
Sealing Form: |
Hot And Cold Seals |
Input Voltage: |
AC220V/50Hz |
Maximum Current: |
10A |
Machine Size: |
2030*528*583(L*W*H) |
Net Weight: |
160KG |
Selective Configuration: |
Image Detection System |
| Application | Automatic Taping for SOP8, SOP14, SOP16 Components |
| Capacity | 3,000 - 15,000 UPH (varies by product type) |
| Control System | PLC + Touch Screen + Servo Motor |
| Temperature Control | PID Temperature Control |
| Tape Width | 12mm, 16mm |
| Input Voltage | AC220V/50Hz |
| Maximum Current | 10A |
| Working Air Pressure | 0.40-0.6Mpa (Dry and Clean) |
| Machine Dimensions | 2030×528×583mm (L×W×H) |
| Net Weight | 160kg (including vibratory disc) |
