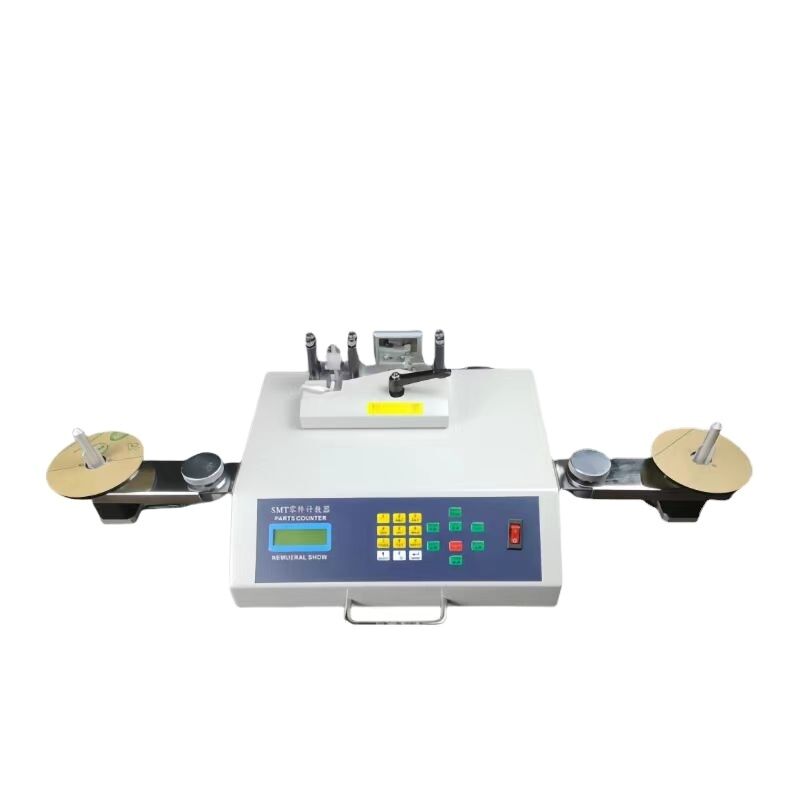

Convenient Operate AC220V/110V 50Hz/60Hz Leak Detection SMD Parts Counter

Name: Convenient Operate AC220V/110V 50Hz/60Hz Leak Detection SMD Parts Counter
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-802
Price: 2.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: YUSH

Model Number: YS-802

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $2,300-2,800 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                AC220V/110V SMD parts counter, 50Hz/60Hz leak detection counter, PCB depaneling machine with warranty


Weight:	11kg	Power Source:	AC220V/110V,50Hz/60Hz
Count Speed:	5000PCS /15 Second	Rated Power:	30W
Count Range:	From -99999 To 99999pcs	Machine Dimensions:	L774W350H184mm
Applicative Tape Diameter:	All Kinds Of SMD Tape	Pitch:	2.4.8.12.16.20.24.28.32.36.40.44.48.52.56mm
Applicative Tape Width:	8,12,16,24,32,44,56mm	Core Components:	Motor, Pump
Leak Detection:	Yes	Buzzer Alert:	Yes
Counting Direction:	Forward And Reverse	Error Rate:	Zero Error
Packaging:	Carton And Foam Plastics

Weight:	11kg
Power Source:	AC220V/110V,50Hz/60Hz
Count Speed:	5000PCS /15 Second
Rated Power:	30W
Count Range:	From -99999 To 99999pcs
Machine Dimensions:	L774W350H184mm
Applicative Tape Diameter:	All Kinds Of SMD Tape
Pitch:	2.4.8.12.16.20.24.28.32.36.40.44.48.52.56mm
Applicative Tape Width:	8,12,16,24,32,44,56mm
Core Components:	Motor, Pump
Leak Detection:	Yes
Buzzer Alert:	Yes
Counting Direction:	Forward And Reverse
Error Rate:	Zero Error
Packaging:	Carton And Foam Plastics

Convenient Operate AC220V/110V 50Hz/60Hz Leak Detection SMD Parts Counter

Function Information

Leak detection SMD parts counter with easy operation, compact size, and convenient usage
Accurate bidirectional counting (forward and reverse) with zero error, specifically designed for SMD parts
Built-in leak detection function stops machine and activates buzzer alert when parts are missing
Programmable target count setting with automatic stop function for convenient counting, issuing, and receiving SMD spare parts
Compatible with scanning and barcode printing systems for enhanced operational efficiency
Compact, lightweight design for easy portability, ideal for SMD manufacturing facilities

Technical Specifications

Power Source	AC220V/110V, 50Hz/60Hz
Count Speed	5000 PCS / 15 seconds
Rated Power	30W
Count Range	-99999 to 99999 pcs
Machine Dimensions	L774 × W350 × H184 mm
Weight	11 kg
Applicable Tape Diameter	All types of SMD tape
Pitch	2, 4, 8, 12, 16, 20, 24, 28, 32, 36, 40, 44, 48, 52, 56 mm
Applicable Tape Width	8, 12, 16, 24, 32, 44, 56 mm
Packaging	Carton and foam plastics

Manufacturer Profile

YUSH Electronic Technology Co., Ltd was founded in 2005 and is located in Jiangsu, China's world manufacturing hub. The company specializes in professional PCB separator and PCB depaneling electronic equipment machinery. With advanced production and processing equipment, YUSH maintains an experienced development and manufacturing team, half of whom have over 10 years of experience in the electronic equipment industry.

Since 2004, the company leadership has invested in developing and manufacturing PCB separators and depaneling machines. YUSH prioritizes product quality, safety, and innovation, producing high-quality, stable-performance, cost-effective products that improve production yields and enhance customer competitiveness. The product range includes manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router PCB separators and depaneling machines. With global customer reach, YUSH has become one of China's largest PCB separator production bases.
