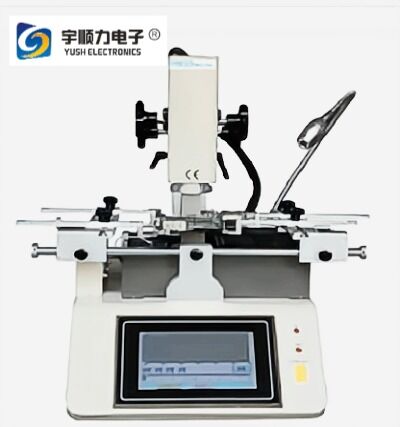

Automatic BGA Rework Station YS-520

Name: Automatic BGA Rework Station YS-520
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-520
Price: 6 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: YUSH

Certification: CE

Model Number: YS-520

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $6,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Automatic BGA Rework Station with warranty, YS-520 BGA Rework Station, PCB Depaneling Machine for BGA


Weight:	20kg	Voltage:	220Vac
Power:	3800W	Upper Heating Power:	Max. 800W
Lower Heating Power:	Max. 1200W	Infrared Heating Power:	Max. 1800W
PCB Size:	Max300×280mm Min 10×10mm	Chip Size:	Max60×60mm Min 1×1mm
PCB Thickness:	0.3-5mm	Temperature Accuracy:	±2 Degree
Temperature Sensor:	1pcs	Overall Dimension:	L460×W480×H500mm
Nozzle Rotation:	360 Degree	PCB Location:	V-shape Card Slot+universal Jigs
Heating Zones:	Independent 3 Zones

Weight:	20kg
Voltage:	220Vac
Power:	3800W
Upper Heating Power:	Max. 800W
Lower Heating Power:	Max. 1200W
Infrared Heating Power:	Max. 1800W
PCB Size:	Max300×280mm Min 10×10mm
Chip Size:	Max60×60mm Min 1×1mm
PCB Thickness:	0.3-5mm
Temperature Accuracy:	±2 Degree
Temperature Sensor:	1pcs
Overall Dimension:	L460×W480×H500mm
Nozzle Rotation:	360 Degree
PCB Location:	V-shape Card Slot+universal Jigs
Heating Zones:	Independent 3 Zones

Automatic BGA Rework Station YS-520

Product Overview

The BGA Rework Station YS-520 is a professional-grade rework system designed for precision BGA chip repair and rework operations with advanced temperature control and positioning capabilities.

Key Features

High sensitivity industrial touch screen interface
Advanced temperature control module with microcontroller precision
Real-time temperature curve display and analysis on touch screen
Storage capacity for hundreds of user temperature curve profiles
Laser positioning system for fast, accurate chip center location
Independent 3-zone heating system with ±2°C temperature accuracy
360° rotatable titanium alloy BGA nozzle for versatile chip access
High accuracy K-type thermocouple closed-loop control
Built-in vacuum pen, work light, cross cooling fan, and laser light
Advanced alarm system with intelligent air regulation software
CE certified with emergency stop switch and automatic power protection
Dual over-temperature protection for safety

Technical Specifications

Power Supply	AC220V±10%, 50/60Hz
Total Power	3800W
Heating Power	Upper: Max 800W Lower: Max 1200W Infrared: Max 1800W
PCB Location	V-shape card slot + universal jigs and fixture
Temperature Control	K-type thermocouple closed-loop, ±2°C precision
Electrical Components	Touch screen + temperature module + microcontrollers
PCB Size Range	Max: 300×280mm, Min: 10×10mm
Chip Size Range	Max: 60×60mm, Min: 1×1mm
PCB Thickness	0.3-5mm
Temperature Sensors	1 piece
Dimensions	460×480×500mm (L×W×H)
Weight	20kg

Packaging & Shipping

Our Services

Company Information

YUSH Electronic Technology Co., Ltd is a specialized manufacturer and trader focused on the research, development, and production of PCB depaneling equipment, hot bar welding machines, and touch screen film sticking machines. Located in Dongguan City, Guangdong Province, China, our facility benefits from convenient transportation access. All products comply with international quality standards and are appreciated in markets worldwide. We welcome custom orders and look forward to establishing successful business relationships globally.
