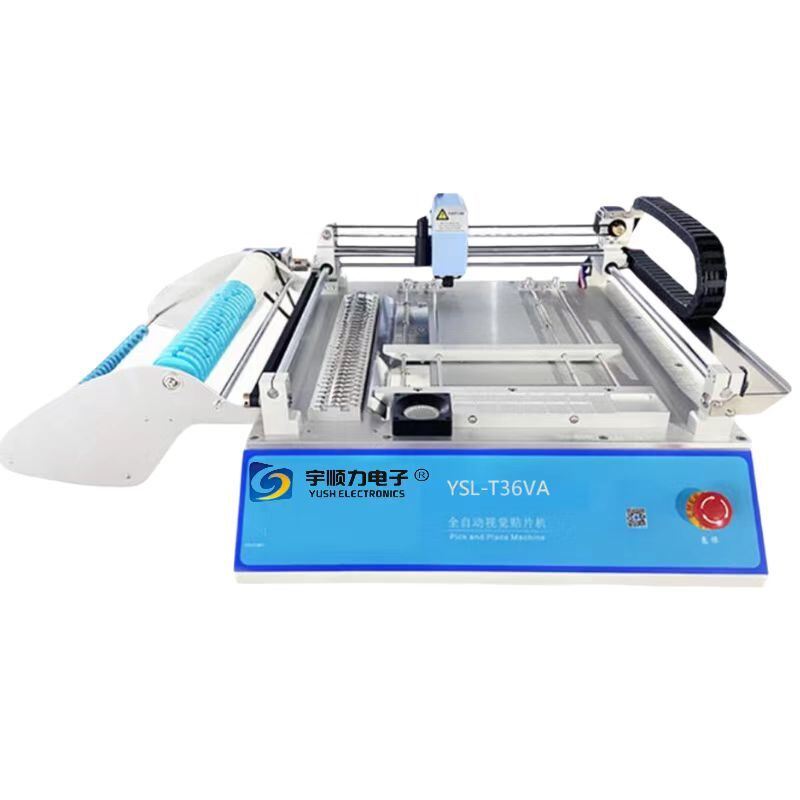

Fully Automatic High Precision 2 Heads Desktop Vision Pick and Place Machine

Name: Fully Automatic High Precision 2 Heads Desktop Vision Pick and Place Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-T36VA
Price: 401.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: YUSH

Model Number: YS-T36VA

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $2,800 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                fully automatic PCB depaneling machine, high precision pick and place machine, desktop vision placement machine


Weight:	40kg	Dimensions:	940mm(L) X 710mm(W) X 340mm(H)
Power Supply:	AC220V (50Hz, Single-phase) /AC110V (60Hz, Single-phase);300W	Air Supply:	No External Power Supply Required
Vacuum Generation:	Built-in Vacuum Pump	Mounting Head Quantity:	Two
Mounting Speed:	2500CPH	Mounting Accuracy:	0.025mm
Component Type:	Resistance, Capacitor, Diode, SOT, SOP, QFP, QFN, BGA	Component Range:	0402 To 22mmX22mm
PCB Thickness:	0.6mm~3.5mm	PCB Size:	345mm(L) X 360mm(W)
Core Components:	PLC, Engine, Bearing, Gearbox, Motor	X-Y Axis Drive:	Stepping Motor With Closed Loop Control
Visual Calibration:	Dual CCD Digital Industrial Camera

Weight:	40kg
Dimensions:	940mm(L) X 710mm(W) X 340mm(H)
Power Supply:	AC220V (50Hz, Single-phase) /AC110V (60Hz, Single-phase);300W
Air Supply:	No External Power Supply Required
Vacuum Generation:	Built-in Vacuum Pump
Mounting Head Quantity:	Two
Mounting Speed:	2500CPH
Mounting Accuracy:	0.025mm
Component Type:	Resistance, Capacitor, Diode, SOT, SOP, QFP, QFN, BGA
Component Range:	0402 To 22mmX22mm
PCB Thickness:	0.6mm~3.5mm
PCB Size:	345mm(L) X 360mm(W)
Core Components:	PLC, Engine, Bearing, Gearbox, Motor
X-Y Axis Drive:	Stepping Motor With Closed Loop Control
Visual Calibration:	Dual CCD Digital Industrial Camera

Fully Automatic High Precision 2 Heads Desktop Vision Pick and Place Machine

Advanced desktop vision pick and place machine featuring dual mounting heads and precision vision calibration for efficient PCB assembly operations.

Product Characteristics

X, Y axis driven by stepping motor with closed loop control and inlet synchronous belt
Dual visual calibration (CCD digital industrial camera) with Mark point calibration support
External computer running Windows operating system
29 sets of tape feeder stack positions (8mm-22, 12mm-4, 16mm-2, 24mm-1)
Supports minimum 0402 devices with 0.5mm pin spacing chips and 4mm height shaped elements
14 front IC bits with support for countertop custom IC tray and vibrating feeder
Maximum PCB size support: 345mm × 360mm

Technical Specifications

Dimensions	940mm (L) × 710mm (W) × 340mm (H)
Weight	40kg
Power Supply	AC220V (50Hz, single-phase) / AC110V (60Hz, single-phase); 300W
Air Supply	No external power supply required
Vacuum Generation	Built-in vacuum pump
Mounting Head Quantity	Two
Mounting Speed	2500 CPH (under optimal conditions)
Mounting Accuracy	0.025mm
Component Types	Resistance, capacitor, cylindrical diode, aluminum capacitor, SOT, SOP, QFP, QFN, BGA, etc.
Component Range	0402 to 22mm × 22mm components
PCB Thickness	0.6mm - 3.5mm
PCB Size	345mm (L) × 360mm (W) standard

Packing & Delivery

Company Profile

YUSH Electronic Technology Co., Ltd was founded in 2005 and is located in the world manufacturing city Jiangsu, specializing in professional PCB separator and PCB depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacturing team, with half of the team members having over 10 years of experience in the electronic equipment industry.

Since 2004, the company leadership has invested in developing and manufacturing PCB separators and PCB depaneling machines. We prioritize product quality, safety, and innovation, resulting in many high-quality, stable performance, and cost-effective products that improve production yields, increase productivity, and enhance our customers' market competitiveness.

We have designed different types of PCB separators and depaneling machines including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router models. Due to our commitment to quality and competitive pricing, our customers are located worldwide. YUSH has become one of the largest PCB separator production bases in China.

Frequently Asked Questions

Who are we?

We are based in Jiangsu, China, starting from 2014. Our products are sold to Eastern Europe (20.00%), North America (20.00%), South America (15.00%), Southern Europe (10.00%), Northern Europe (10.00%), Western Europe (10.00%), South Asia (10.00%), and Mid East (5.00%). Our office employs 301-500 people.

How can we guarantee quality?

We always provide pre-production samples before mass production and conduct final inspections before shipment to ensure product quality.

What can you buy from us?

We offer PCB depaneling machines, PCB separators, PCB cutting machines, PCB depaneling equipment, and V-cut machines.

Why should you buy from us instead of other suppliers?

YUSH Electronic Technology Co., Ltd. was founded in 2004 and is located in the world manufacturing city Jiangsu. We specialize in professional PCB separator and depanelizer electronic equipment machinery with advanced production facilities and experienced technical expertise.

What services can we provide?

Accepted Delivery Terms: FOB, CIF, EXW, DDP, DDU, Express Delivery, DAF
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
Languages Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, Korean, Hindi
