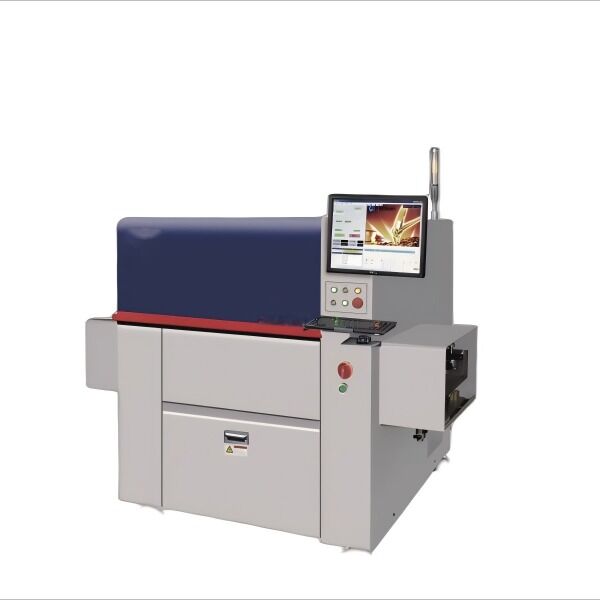

Name: High Quality and High Efficiency Tickle Switch Insert Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-W50
Price: 30 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: YUSH

Model Number: YS-W50

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $30,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                high efficiency tickle switch machine, PCB depaneling machine with warranty, tickle switch insert depaneling machine


Weight:	750kg	Model:	YS-W50
Pressure Requirements:	0.6Mpa	Insertion Direction:	0°- 360°,increment
Insertion Rate:	3.3 Unit Per Second	Theoretical Speed:	Approx 12,000 CPH
Head:	1-2 Tools	Component Lead Span:	W4.5mm,L6.5mm
Board Size:	Min 50mm50mm,Max 350mm300mm	Track Width:	50~300mm (Adjustable)
Clinch Angle:	45°Internal Bending	Power Requirement:	AC220V,50/60Hz, Single Phase 1.0Kw
PCB Thickness Tolerance:	Compensation Algorithm	Vision System:	High Precision
Core Components:	PLC, Engine, Bearing, Gearbox, Motor

Weight:	750kg
Model:	YS-W50
Pressure Requirements:	0.6Mpa
Insertion Direction:	0°- 360°,increment
Insertion Rate:	3.3 Unit Per Second
Theoretical Speed:	Approx 12,000 CPH
Head:	1-2 Tools
Component Lead Span:	W4.5mm,L6.5mm
Board Size:	Min 50mm50mm,Max 350mm300mm
Track Width:	50~300mm (Adjustable)
Clinch Angle:	45°Internal Bending
Power Requirement:	AC220V,50/60Hz, Single Phase 1.0Kw
PCB Thickness Tolerance:	Compensation Algorithm
Vision System:	High Precision
Core Components:	PLC, Engine, Bearing, Gearbox, Motor

High Quality and High Efficiency Tickle Switch Insert Machine

Product Features

XY servo motor driven for high automation, ready for production within 10 minutes
0°-360° freely programmable insertion angle with 1° increments
Insertion rate up to 3.3 units per second (1 unit per stroke)
Synchronous lower cutter clamping during insertion to prevent floating
Supports standard package feeding and bulk vibrator bowl feeding
Flexible PCB transmission directions (left-right, right-left, in/out same side as SSIO)
Lower support tool with pin inspection function for quality monitoring
Real-time strength monitoring ensures 100% high-quality insertion
High precision vision system for PCB deviation correction
Intuitive software operation interface with easy programming
PCB thickness tolerance compensation algorithm
Modular options for Industry 4.0 connectivity and full traceability

Technical Specifications

Item	YS-W50
Theoretical Speed	Approx 12,000 CPH
Head	1-2 tools
Component Lead Span	W4.5mm, L6.5mm
Board Size	Min 50mm×50mm, Max 350mm×300mm
Track Width	50-300mm (Adjustable)
Clinch Angle	45° Internal Bending
Weight	Main Body, Approx 750kg
Power Requirement	AC220V, 50/60Hz, Single Phase 1.0Kw
