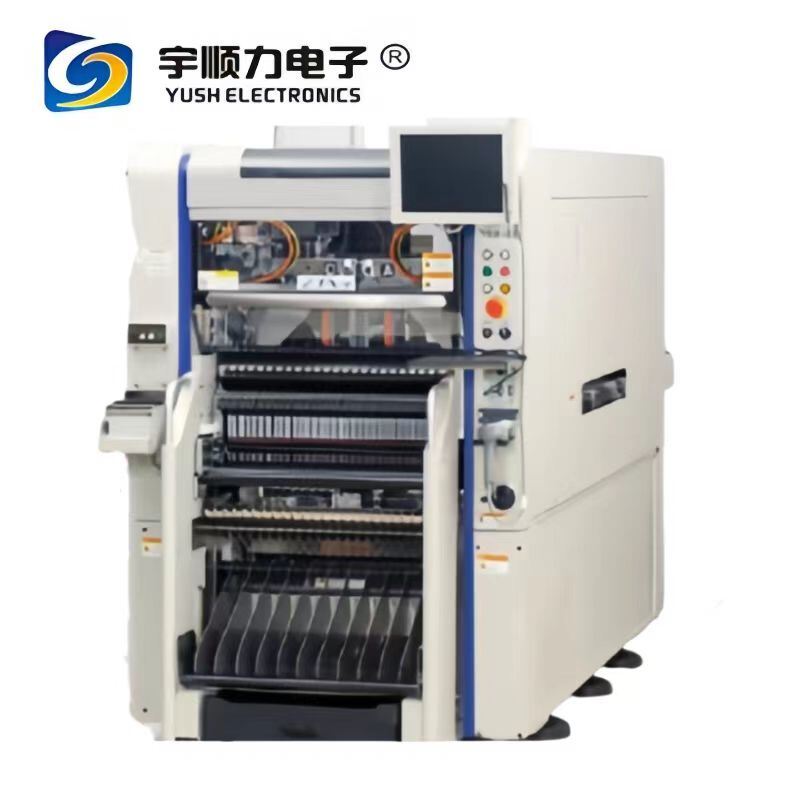

Flexible Response High Mounting Quality High-Speed Modular SMT Chip Mounter

Product Details

Place of Origin: Jiangsu, China

Brand Name: YUSH

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $9,800 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                high-speed SMT chip mounter, modular PCB depaneling machine, flexible response chip mounter


Weight:	2100 KG	Applicable PCB:	L700xW460mm To L50xW50mm
Speed:	200,000CPH (When Using RS Head)	Applicable Components:	0201* To 6.5mm (Height 2.0mm Or Less)
Mounting Accuracy:	+/-35μm (25μm) Cpk ≥1.0 (3)	Number Of Feeders:	Max. 80 Feeders With RS Heads
Power Supply:	3-Phase AC 200/208/220/240/380/400/416V +/-10%	Air Supply:	0.45MPa Or More, In Clean, Dry State
External Dimension:	L1,000×W2,100×H1,550mm	Speed (MU Head):	58,000CPH (When Using MU Head)
Applicable Components (MU):	0402 To 45×100mm (Height 15mm Or Less)	Mounting Accuracy (MU):	+/-40μm (30μm) Cpk ≥1.0 (3σ)
Number Of Feeders (MU):	92 Feeders With MU Or FL Heads	Max Feeders (RS+MU):	Max. 84 Feeders With RS X 2 + MU X 2 Heads
Component Height (MU):	Height 25.5mm Or Less

Weight:	2100 KG
Applicable PCB:	L700xW460mm To L50xW50mm
Speed:	200,000CPH (When Using RS Head)
Applicable Components:	0201* To 6.5mm (Height 2.0mm Or Less)
Mounting Accuracy:	+/-35μm (25μm) Cpk ≥1.0 (3)
Number Of Feeders:	Max. 80 Feeders With RS Heads
Power Supply:	3-Phase AC 200/208/220/240/380/400/416V +/-10%
Air Supply:	0.45MPa Or More, In Clean, Dry State
External Dimension:	L1,000×W2,100×H1,550mm
Speed (MU Head):	58,000CPH (When Using MU Head)
Applicable Components (MU):	0402 To 45×100mm (Height 15mm Or Less)
Mounting Accuracy (MU):	+/-40μm (30μm) Cpk ≥1.0 (3σ)
Number Of Feeders (MU):	92 Feeders With MU Or FL Heads
Max Feeders (RS+MU):	Max. 84 Feeders With RS X 2 + MU X 2 Heads
Component Height (MU):	Height 25.5mm Or Less

Flexible Response High Mounting Quality High-Speed Modular SMT Chip Mounter

The Flexible Response High Mounting Quality High-Speed Modular SMT Chip Mounter delivers exceptional performance with revolutionary productivity and precision mounting capabilities for advanced electronics manufacturing.

Key Features

Revolutionary productivity of 200,000 CPH - world's fastest speed on a compact platform
Highest productivity in the world for SMT mounting applications
Flexible response for different production configurations and requirements
Advanced technology supporting high mounting quality and superior machine operating rate

Technical Specifications

Model	4-Beam, 4-Head Spec. (YS-40R4)	2-Beam, 2-Head Spec. (YS-40R2)
Applicable PCB	L700×W460mm to L50×W50mm
Speed	200,000 CPH (When using RS head)	58,000 CPH (When using MU head)
Applicable components	0201* to 6.5mm (Height 2.0mm or less) *option 03015 to 45×60m (Height 15mm or less)	0402 to 45×100mm (Height 15mm or less) 0603 to 45×100mm (Height 25.5mm or less)
Mounting accuracy	+/-35μm (25μm) Cpk ≥1.0 (3σ)	+/-40μm (30μm) Cpk ≥1.0 (3σ)
Number of component types	Max. 80 feeders with RS heads Max. 88 feeders with MU heads Max. 84 feeders with RS x 2 + MU x 2 heads * 8mm width tape conversion	92 feeders with MU or FL heads
Power supply	3-Phase AC 200/208/220/240/380/400/416V +/-10%
Air supply source	0.45MPa or more, in clean, dry state
External dimension	L1,000×W2,100×H1,550mm
Weight	Approx. 2,100 kg
