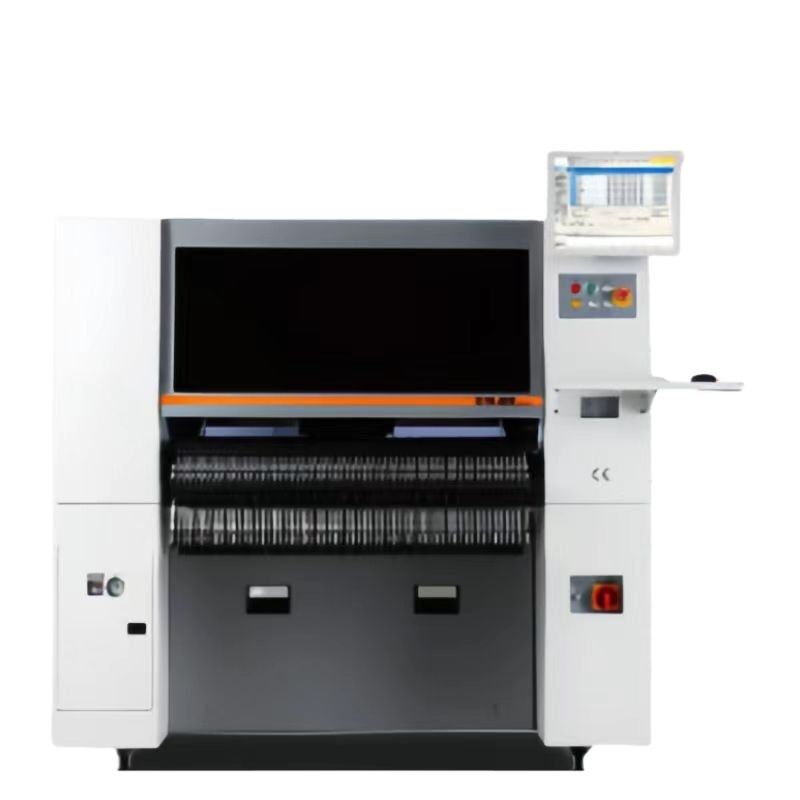

YS-SM481 High Quality and Professional Plus SMT Chip Mounter Machine

Name: YS-SM481 High Quality and Professional Plus SMT Chip Mounter Machine
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-SM481 Plus
Price: 408.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: YUSH

Model Number: YS-SM481 Plus

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $16,800 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT chip mounter machine, professional SMT mounter, PCB depaneling machine with warranty


Weight:	1300 KG	Spindles:	10 Spindles X2 Gantry
Placement Speed:	78,000CPH(Optimum)	Placement Accuracy:	±40μm@μ±3
Applicable Parts:	0402 ~ 14mm(H 12mm)	Dimension:	1650x1690x1458 Mm
Core Components:	Motor, Pump	Model:	YS-SM481 Plus
Applicable PCB:	Max. 460(L) X 400(W)(Standard), Max. 1500(L) X 460(W)(Option)	Placement Speed Optimum:	40,000CPH
Applicable Parts Range:	0402 ~ 42mm(H 15mm)	Dimension Model:	1650×1680×1530 Mm
Max PCB Option:	Max. 1500(L) X 460(W)	Standard PCB:	Max. 460(L) X 400(W)
Height Range:	H 15mm

Weight:	1300 KG
Spindles:	10 Spindles X2 Gantry
Placement Speed:	78,000CPH(Optimum)
Placement Accuracy:	±40μm@μ±3
Applicable Parts:	0402 ~ 14mm(H 12mm)
Dimension:	1650x1690x1458 Mm
Core Components:	Motor, Pump
Model:	YS-SM481 Plus
Applicable PCB:	Max. 460(L) X 400(W)(Standard), Max. 1500(L) X 460(W)(Option)
Placement Speed Optimum:	40,000CPH
Applicable Parts Range:	0402 ~ 42mm(H 15mm)
Dimension Model:	1650×1680×1530 Mm
Max PCB Option:	Max. 1500(L) X 460(W)
Standard PCB:	Max. 460(L) X 400(W)
Height Range:	H 15mm

YS-SM481 High Quality and Professional Plus SMT Chip Mounter Machine

The YS-SM481 High Quality and Professional Plus SMT Chip Mounter Machine delivers exceptional performance and reliability for surface mount technology applications. Engineered with precision and built for industrial durability.

Technical Specifications

Model	YS-SM471 Plus	YS-SM481 Plus	YS-SM482 Plus
Spindles	10 Spindles ×2 Gantry	10 Spindles ×1 Gantry	6 Spindles ×1 Gantry
Placement Speed	78,000 CPH (Optimum)	40,000 CPH (Optimum)	30,000 CPH (Optimum)
Placement Accuracy	±40μm @ μ±3σ	±40μm @ μ±3σ	±40μm @ μ±3σ
Applicable Parts	0402 ~ 14mm (H 12mm)	0402 ~ 42mm (H 15mm)	0402 ~ 55mm (H 15mm)
Applicable PCB	Max. 510(L) × 460(W) (Standard) Max. 610(L) × 460(W) (Option)	Max. 460(L) × 400(W) (Standard) Max. 1500(L) × 460(W) (Option)	Max. 460(L) × 400(W) (Standard) Max. 1200(L) × 510(W) (Option)
Dimension (mm)	1650 × 1690 × 1458	1650 × 1680 × 1530	1650 × 1680 × 1458

About YUSH Electronic Technology

YUSH Electronic Technology Co., Ltd was founded in 2005 and is strategically located in Jiangsu, China's world-renowned manufacturing hub. The company specializes in professional PCB separator and PCB depaneling electronic equipment machinery.

YUSH Electronic Technology maintains advanced production and processing equipment supported by an experienced development and manufacturing team. Over half of our technical staff possess more than 10 years of experience in the electronic equipment industry.

Since 2004, our leadership has focused on developing and manufacturing PCB separators and depaneling machines. We prioritize product quality, operational safety, and continuous innovation, resulting in numerous high-quality, stable-performance, and cost-effective products that improve production yields and enhance customer competitiveness.

Our comprehensive product line includes various PCB separation solutions featuring manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router technologies. Our commitment to quality and competitive pricing has established a global customer base, positioning YUSH as one of China's leading PCB separator production facilities.
