LED Pick and Place Machine/SMT Placement Machine

Product Details

Place of Origin: Guangdong, China

Brand Name: YUSH

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $50,000-100,000 / set

Get Best Price
Highlight:

LED pick and place machine

,

SMT placement machine for PCB

,

PCB depaneling machine with warranty

Weight:
280 Kg
Power:
10 KW
Voltage:
220V/110V
Size:
1420mm*1220mm*1655mm
Pick Heads:
6
Placement Speed:
14,000 CPH
Position Feedback:
2 Micron
Tape Feeders:
64 (8mm)
Component Range:
0402, LED, BGA, 0.4mm Pitch QFP, SMT Connectors
Feeder Types:
Cut Tape, Loose, Tube, Tray
Core Components:
PLC, Gearbox, Motor, Pump
Motor Type:
Linear Servo
Software:
Windows-based GUI
Vision System:
Flying Vision
Placement Accuracy:
Precision Placement Head
Weight:
280 Kg
Power:
10 KW
Voltage:
220V/110V
Size:
1420mm*1220mm*1655mm
Pick Heads:
6
Placement Speed:
14,000 CPH
Position Feedback:
2 Micron
Tape Feeders:
64 (8mm)
Component Range:
0402, LED, BGA, 0.4mm Pitch QFP, SMT Connectors
Feeder Types:
Cut Tape, Loose, Tube, Tray
Core Components:
PLC, Gearbox, Motor, Pump
Motor Type:
Linear Servo
Software:
Windows-based GUI
Vision System:
Flying Vision
Placement Accuracy:
Precision Placement Head

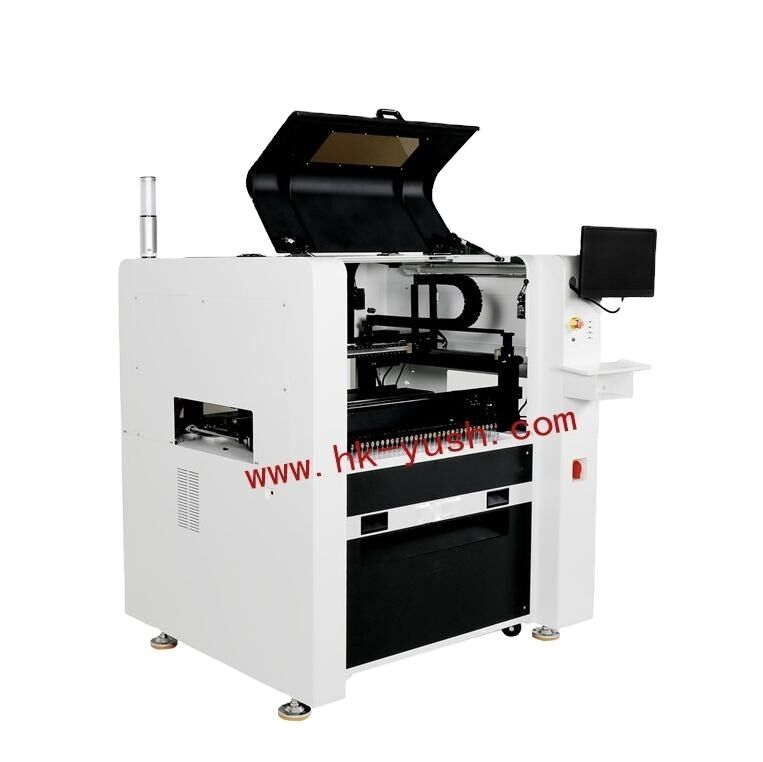

LED Pick and Place Machine/SMT Placement Machine
LED Pick and Place Machine / SMT Placement Machine
LED  Pick  and  Place  Machine/SMT  Placement  Machine 0 LED  Pick  and  Place  Machine/SMT  Placement  Machine 1

This advanced SMT placement machine features six simultaneous pick heads, designed for ease of use, efficiency, cost effectiveness, and enhanced scalability and compatibility. Utilizing a high-efficiency linear servo motor, the system reduces and strengthens the head unit while achieving placement speeds of up to 14,000 CPH.

LED  Pick  and  Place  Machine/SMT  Placement  Machine 2 LED  Pick  and  Place  Machine/SMT  Placement  Machine 3
Key Features
  • Integrated flying vision system for precision placement
  • Panasonic Servo driven with position feedback from 2 micron linear scales and precision placement head
  • 6 simultaneous pick-up heads for maximum efficiency
  • LED  Pick  and  Place  Machine/SMT  Placement  Machine 4
  • Placement rates up to 14,000 components per hour
  • Windows®-based GUI software allows programming in minutes
  • Smart feeders for accurate component placement, management, and tracking
  • LED  Pick  and  Place  Machine/SMT  Placement  Machine 5
  • Capacity for up to 64 tape feeders (all in 8mm)
  • Accurately places wide range of components including 0402, LED, BGA, 0.4mm pitch QFP, SMT connectors and more
  • Supports cut tape, loose, tube, or tray feeders
  • LED  Pick  and  Place  Machine/SMT  Placement  Machine 6 LED  Pick  and  Place  Machine/SMT  Placement  Machine 7
Packaging & Shipping
LED  Pick  and  Place  Machine/SMT  Placement  Machine 8
Our Services
LED  Pick  and  Place  Machine/SMT  Placement  Machine 9
Company Information

YUSH Electronic Technology Co., Ltd is a manufacturer and trader specialized in the research, development and production of PCB depaneling, Hot bar welding machines, and Touch screen film sticking machines. Located in Dongguan City, Guangdong Province, China with convenient transportation access. All products comply with international quality standards and are appreciated in various markets worldwide. Contact us for custom orders and business partnerships.
