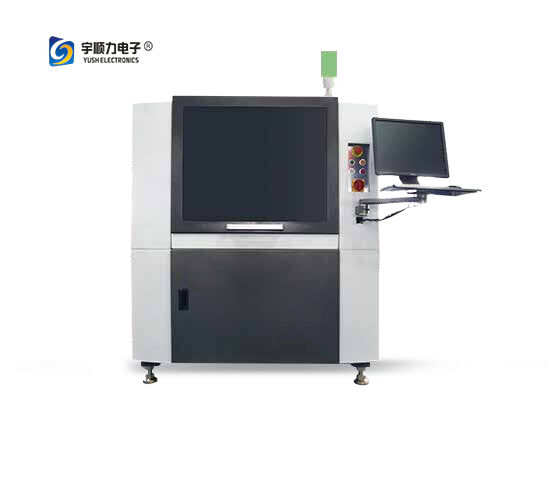

Fully Automatic High Precision SMT Solder Paste Printer

Product Details

Place of Origin: Guangdong, China

Brand Name: YUSH

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $14,000-15,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                fully automatic SMT solder paste printer, high precision PCB depaneling machine, SMT printer with warranty


Weight:	1300 Kg	Power:	10 KW
Voltage:	220V/110V	Screen Frame Size:	650(X)550(Y)-737(X)737(Y) Mm
Min PCB Size:	50(X)*50(Y) Mm	Max PCB Size:	510(X)*510(Y) Mm
Thickness Range:	0.2MM-6MM	Curve:	<1%
Core Components:	Motor	Printing Precision:	Stable
Calibration Technology:	Online Calibration	Squeegee Pressure:	Software-controlled
Automatic Calibration:	Rail Rod Wear Compensation	Examination System:	Intelligent 2D
Cleaning Structure:	Alcohol-based

Weight:	1300 Kg
Power:	10 KW
Voltage:	220V/110V
Screen Frame Size:	650(X)550(Y)-737(X)737(Y) Mm
Min PCB Size:	50(X)*50(Y) Mm
Max PCB Size:	510(X)*510(Y) Mm
Thickness Range:	0.2MM-6MM
Curve:	<1%
Core Components:	Motor
Printing Precision:	Stable
Calibration Technology:	Online Calibration
Squeegee Pressure:	Software-controlled
Automatic Calibration:	Rail Rod Wear Compensation
Examination System:	Intelligent 2D
Cleaning Structure:	Alcohol-based

Fully Automatic High Precision SMT Solder Paste Printer

Key Features

Perfect solution for large size product printing
Simple calibration and maintenance procedures
Stable printing quality with consistent results
Independently developed image processing software

Machine Components Overview

Machine housing module
CCD image capture module
Stencil lifting module of Z-axis
Squeegee printing module
Cleaning module
Platform fine adjustment module
Rail and conveyor module
Three color warning lamp
Display and input device

Technical Specifications

Precision, Stability & Intelligence Features

First domestic online calibration technology
New squeegee pressure setting software
Automatic calibration function for rail rod wear compensation
Intelligent 2D examination system
Advanced squeegee design
Each equipment passes CPK test with available PDF report
New alcohol cleaning structure

Advanced Technologies

Precision Guarantee

Our fully automatic SMT solder paste printer ensures exceptional precision through advanced calibration technologies, intelligent examination systems, and robust engineering design for consistent, high-quality printing results in industrial manufacturing applications.
