                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT stencil printer solder paste machine, automatic PCB stencil printer, solder paste machine with warranty


Weight:	1000 Kg	Power:	10 KW
Voltage:	220V, 110V, AC:220±10%, 50/60Hz	Dimensions:	115813621463 Mm
Max PCB Size:	400*340 Mm	Min PCB Size:	50*50 Mm
PCB Thickness:	0.4-6 Mm	Max PCB Weight:	3 Kg
PCB Clearance:	15 Mm	Squeegee Pressure:	0.5-10 Kg
Squeegee Speed:	10-200 Mm/sec	Repeated Accuracy:	±0.01 Mm
Printing Accuracy:	±0.025 Mm	Cycle Time:	<8 Sec
Air Supply:	4-6 Kgf/cm2

Weight:	1000 Kg
Power:	10 KW
Voltage:	220V, 110V, AC:220±10%, 50/60Hz
Dimensions:	115813621463 Mm
Max PCB Size:	400*340 Mm
Min PCB Size:	50*50 Mm
PCB Thickness:	0.4-6 Mm
Max PCB Weight:	3 Kg
PCB Clearance:	15 Mm
Squeegee Pressure:	0.5-10 Kg
Squeegee Speed:	10-200 Mm/sec
Repeated Accuracy:	±0.01 Mm
Printing Accuracy:	±0.025 Mm
Cycle Time:	<8 Sec
Air Supply:	4-6 Kgf/cm2

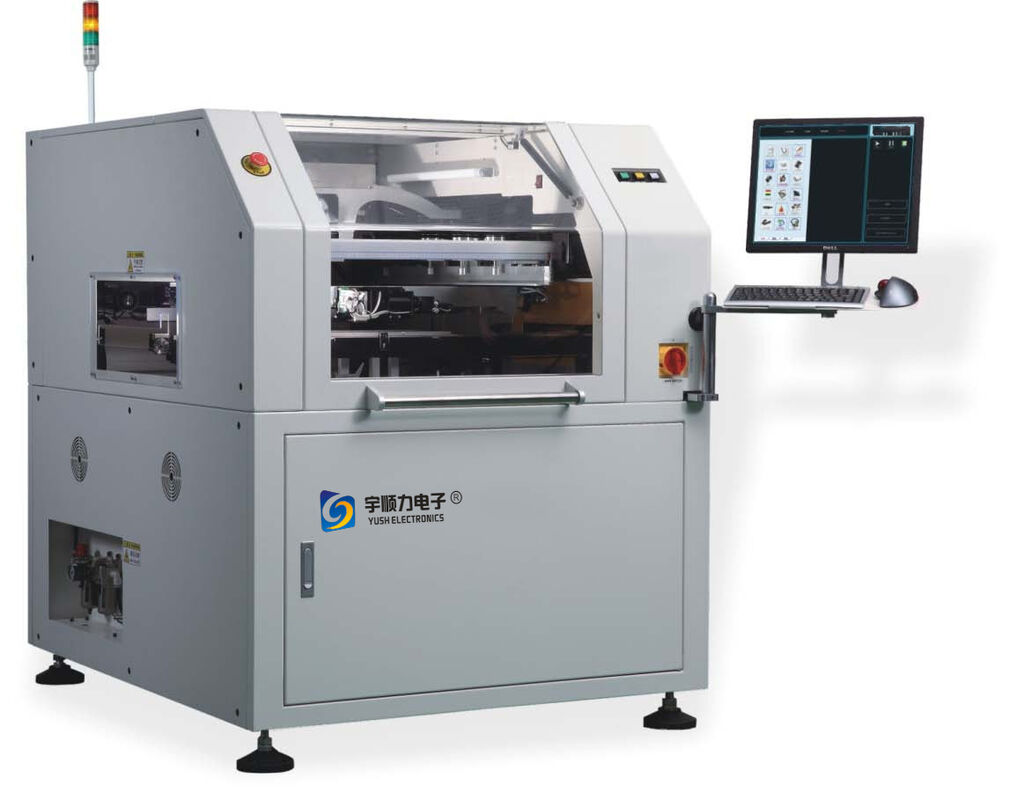

SMT Automatic Stencil Printer/Solder Paste Machine

Product Overview

High-precision automated stencil printing system for solder paste application in SMT PCB assembly processes.

Technical Specifications

Parameter	Specification
Model	YS-G5
PCB Max. Size	400×340 mm
PCB Min. Size	50×50 mm
PCB Thickness	0.4-6 mm
Max. Weight	3 kg
PCB Clearance	15 mm
PCB Clamping Type	Top flatten (manual upper edge) flexible edge clip
PCB Support	Magnetic thimble/equal height block/manual adjustment jack up platform
Conveyor Stage	One piece guide rail
Transport Direction	Left-right/right-left/left-left/right-right
Conveyor Width Adjustment	Auto
Squeegee Type	Squeegee/steel scraper (angle 45/55/60°), user defined
Auto Pressure Control	0.5-10 kg
Squeegee Length	L=280 mm, User defined
Squeegee Speed	10-200 mm/sec
Moving Direction	Y axis movement
Repeated Accuracy	±0.01 mm
Printing Accuracy	±0.025 mm
Cycle Time	<8 sec (excluding printing and cleaning time)
Fiducial Mark Type	Standard shape reference point, custom image
Fiducial Mark Size	0.5-4 mm
Mark Number	2 or 4 mark benchmark positioning systems
Mark Searching	Automatic
Separation Type	Normal/vacuum
Separation Speed	0-20 mm/s
Separation Distance	0-20 mm
Cleaning Type	Strengthening vacuum adsorption; three modes of dry, wet and vacuum
Cleaning Head	Anti-abrasive material
Moving Direction	Y axis movement
Product Changeover	<3 mins
New Product Setup	<5 mins
Operation System	Windows XP/Win 7
Air Supply	4-6 kgf/cm²
Power Supply	AC220±10% 50/60Hz 2.5KW
Weight	1000 kg
Single Size	1158×1362×1463 mm
Splicing Size	/
