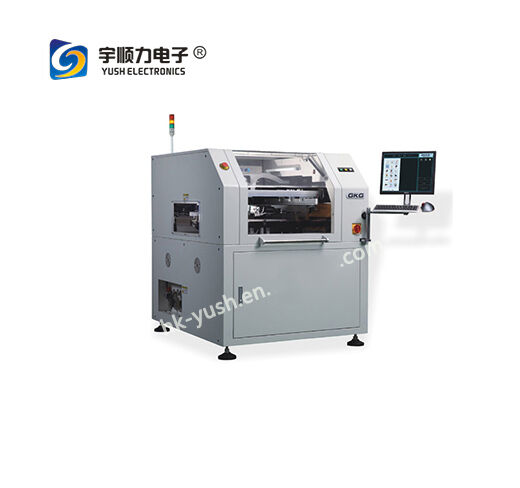

SMT Automatic Solder Paste Printer/electronic Product Machinery

Product Details

Place of Origin: Guangdong, China

Brand Name: YUSH

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $12,000-18,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT solder paste printer, automatic PCB depaneling machine, electronic product manufacturing machinery


Weight:	320 Kg	Power:	10 KW
Voltage:	220V/110V	Model Number:	YS-G5
PCB Size:	5050-400340mm	Transport Height:	900±40mm
Transport Speed:	1500mm/s	Print Speed:	6-200mm/sec
CCD FOV:	8*6mm	Screen Frames Size:	370370mm-737737mm
Screen Frames Thickness:	20-40mm	PCB Thickness:	0.4-6mm
Repeat Position Accuracy:	±0.01mm	Printing Accuracy:	±0.025mm
Machine Dimensions:	114013641404mm

Weight:	320 Kg
Power:	10 KW
Voltage:	220V/110V
Model Number:	YS-G5
PCB Size:	5050-400340mm
Transport Height:	900±40mm
Transport Speed:	1500mm/s
Print Speed:	6-200mm/sec
CCD FOV:	8*6mm
Screen Frames Size:	370370mm-737737mm
Screen Frames Thickness:	20-40mm
PCB Thickness:	0.4-6mm
Repeat Position Accuracy:	±0.01mm
Printing Accuracy:	±0.025mm
Machine Dimensions:	114013641404mm

SMT Automatic Solder Paste Printer/electronic Product Machinery

YS-G5 Automatic Solder Paste Printer

Professional SMT PCB printing machinery for electronic manufacturing applications

Product Specifications

Place of Origin: Guangdong, China

Condition: Original New

Usage: SMT PCB Printer

Parameter	Specification
PCB Size	50×50 - 400×340mm
PCB Thickness	0.4-6mm
PCB Warpage	Max. PCB diagonal 1%
Transport Height	900±40mm
Transport Speed	1500mm/s (Max), Program Control
Print Speed	6-200mm/sec
Repeat Position Accuracy	±0.01mm
Printing Accuracy	±0.025mm
Cycle Time	<8sec
Product Changeover	Old Process: <3mins, New Process setup: <5mins
Air Supply	4-6kgf/cm²
Power Supply	AC:220±10%, 50/60HZ, 2.5KW
Control Method	PC Control
Operating System	Windows XP/Win7
Machine Dimensions	1140(L)×1364(W)×1404(H)mm
Weight	Approx. 1000KG

Advanced Features

GKG Special Adjustment Jacking Platform

High-Performance Image and Optical System

Utilizes uniform ring light and high brightness coaxial light with programmable brightness adjustment. Capable of recognizing all types of Mark points including rugged surfaces. Suitable for tin plating, coppering, gold plating, FPC, and various PCB colors.
