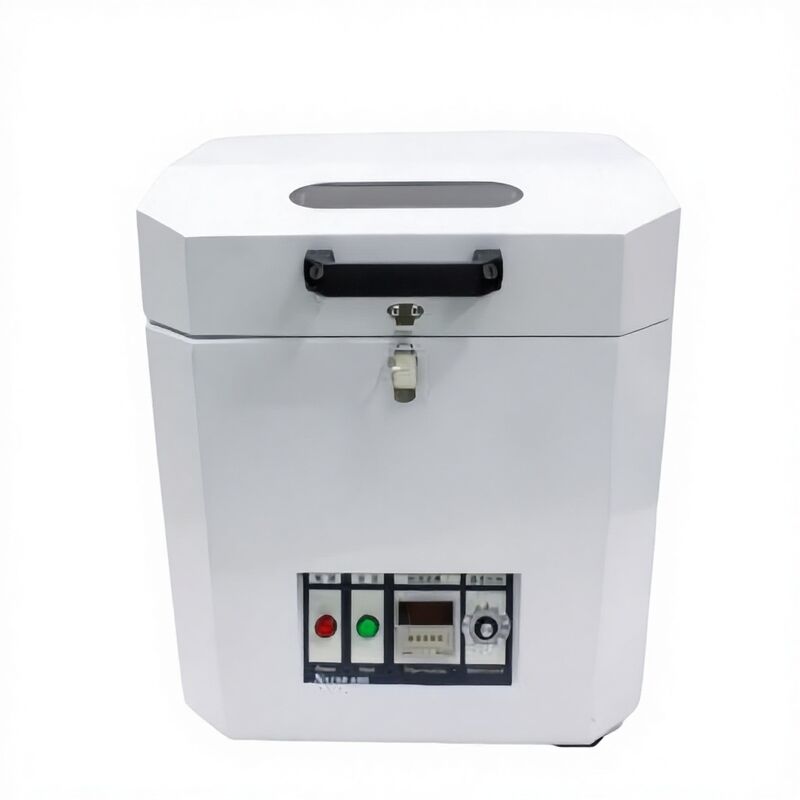

SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine

Product Details

Place of Origin: Jiangsu, China

Brand Name: YUSH

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $2,500-3,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                fully automatic SMT tin cream mixer, PCB depaneling tin paste mixer, SMT tin paste mixer machine


Weight:	40 KG	Operating Voltage:	AC220V (60 HZ) 40W
Primary Speed:	1400 RPM	Secondary Speed:	400 RPM
Machine Size:	410 * 410 * 490MM (W.D.H)	Net Weight:	40 KG
Gross Weight:	45 KG	Machine Length:	410mm
Model:	J40	Time Setting:	0.1-9.9 Minutes, 0.1 Minutes For Each Time
Core Components:	Motor, Pump	Power Consumption:	40W
Frequency:	60 HZ	Rotation Angle:	45 Degrees
Balance Weight:	500G

Weight:	40 KG
Operating Voltage:	AC220V (60 HZ) 40W
Primary Speed:	1400 RPM
Secondary Speed:	400 RPM
Machine Size:	410 * 410 * 490MM (W.D.H)
Net Weight:	40 KG
Gross Weight:	45 KG
Machine Length:	410mm
Model:	J40
Time Setting:	0.1-9.9 Minutes, 0.1 Minutes For Each Time
Core Components:	Motor, Pump
Power Consumption:	40W
Frequency:	60 HZ
Rotation Angle:	45 Degrees
Balance Weight:	500G

SMT Tin Cream Mixer Fully Automatic Good Quality Tin Paste Mixer Machine

Fully Automatic SMT Tin Cream Mixer

This high-quality tin paste mixer machine ensures precise mixing of solder paste for optimal SMT production results.

Usage Instructions

For optimal performance: When stirring two cans simultaneously, ensure weights are roughly equal (difference ≤50g). For single can operation, use the provided 500g balance weight or equivalent counterweight. Press the power switch to stop operation. The machine automatically stops when the cover is opened during operation.

Product Maintenance

Regular maintenance extends the service life of this precision mechanical equipment:

Keep the machine clean as it uses fully enclosed bearings
Replace the rotation device belt promptly when damaged (non-durable component)

Safety Precautions

Never open the machine cover or leave it unlocked during operation
Wait for complete machine stop before opening the upper cover
Place machine on stable, solid surface as slight vibration occurs during operation
Immediately power off and inspect if excessive vibration occurs

Technical Specifications

Operating Voltage	AC220V (60 HZ) 40W
Operating Speed	Primary: 1400 RPM, Secondary: 400 RPM
Machine Dimensions	410 × 410 × 490mm (W×D×H)
Net/Gross Weight	40kg / 45kg
Time Setting	0.1-9.9 minutes (0.1 min increments), 10-30 minutes (1.0 min increments)

Key Features

Utilizing rotary centrifugal force with 45-degree axis rotation, this mixer creates a whirlwind funnel mixing action that softens paste, eliminates clumping, and achieves optimal viscosity for excellent printing and welding performance.

No need to remove tin cream before mixing
Adjustable mixing time and speed with special control circuit
45-degree placement prevents paste attachment to tank cover
Smooth operation with low noise, natural temperature return, and bubble removal
Convenient, safe operation without opening tin paste tank
Universal clamp fits various tin paste tank packaging
No moisture issues or tin powder shape damage
220V power supply with safety protection devices

Operation Procedure

Step 1:

Release latch, open machine cover, and confirm no foreign objects inside.

Step 2:

Remove tin paste and 500g balance weight.

Step 3:

Place tin paste and balance weight in tank (cancel balance weight when mixing 2 bottles).

Step 4:

Manually rotate tin paste jar to confirm no collision, close cover, and power on.

Step 5:

Set mixing time (recommended: 5 minutes). Time controller: H=hours, M=minutes, S=seconds.

Step 6:

Press start key (indicator light on), machine operates at high speed until automatic stop.

Step 7:

After completion, press power switch to turn off power supply.
