Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SMT PCB solder paste printer, semi-automatic PCB printer, PCB depaneling solder printer


Weight:	300 Kg	Power:	10 KW
Voltage:	220V, 110V	Gross Power:	2KW
Max PCB Size:	1200*300mm	Printing Accuracy:	±0.02 Mm
PCB Thickness:	0.2-2.0mm	Power Supply:	220V, 50/60 HZ
Working Table Size:	1280X300mm	Max Frame Size:	1300X320mm
Max Print Size:	1200X300mm	Max Stencil Size:	1260mm*430mm
Micro-adjustment Range:	±10mm	Machine Repeatability Accuracy:	±0.02mm
Air Pressure:	0.4-0.6Mpa

Weight:	300 Kg
Power:	10 KW
Voltage:	220V, 110V
Gross Power:	2KW
Max PCB Size:	1200*300mm
Printing Accuracy:	±0.02 Mm
PCB Thickness:	0.2-2.0mm
Power Supply:	220V, 50/60 HZ
Working Table Size:	1280X300mm
Max Frame Size:	1300X320mm
Max Print Size:	1200X300mm
Max Stencil Size:	1260mm*430mm
Micro-adjustment Range:	±10mm
Machine Repeatability Accuracy:	±0.02mm
Air Pressure:	0.4-0.6Mpa

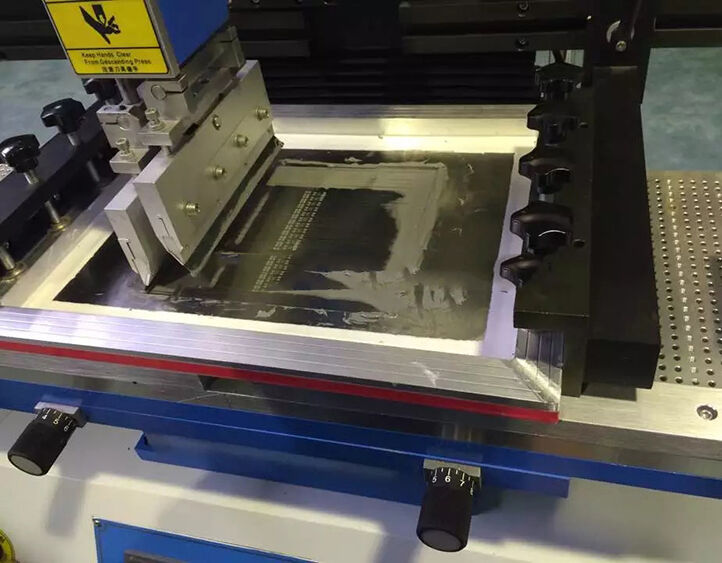

Semi-Automatic SMT PCB Solder Paste Printer

High-precision semi-automatic solder paste printing solution for SMT PCB assembly, designed for reliable performance in manufacturing environments.

Technical Specifications

Working table size (X,Y direction)	1280 × 300 mm
Maximum frame size (X,Y direction)	1300 × 320 mm
Maximum print size of PCB board (X,Y direction)	1200 × 300 mm
Maximum PCB stencil sizes	1260 mm × 430 mm
PCB thickness range	0 - 100.0 mm
Positioning method	PCB outer or pin holes positioning
Micro-adjustment range (X, Y)	Front/back ±10 mm, Right/left ±10 mm
Printing accuracy	±0.01 mm
Machine repeatability accuracy	±0.02 mm
Minimum internal clearance	0.35 mm
Air pressure requirement	0.4 - 0.6 MPa / 4 - 6 kgf/cm²
Power supply	Single phase 220V, 50/60 Hz, 100W
Dimensions	1600 mm × 900 mm × 1650 mm
Weight	Approximately 300 kg
