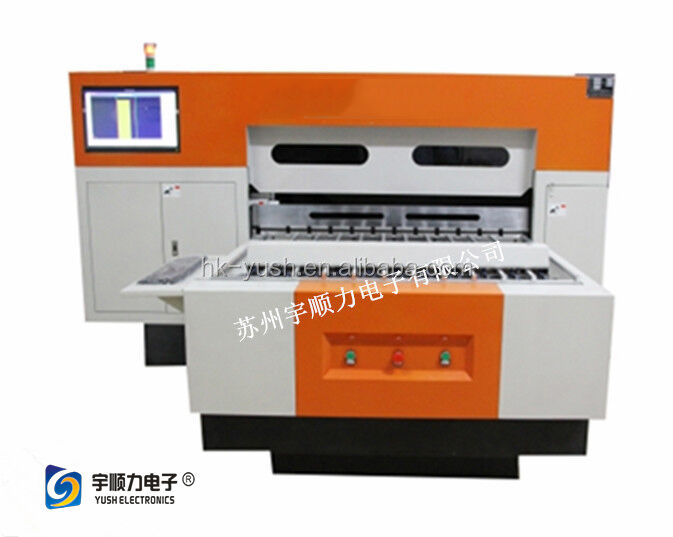

Automatic CNC V-CUT Machine Manufacture

Product Details

Place of Origin: China

Brand Name: YUSH

Payment & Shipping Terms

Minimum Order Quantity: 1 sheet

Price: $30,000 / sheet

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                automatic PCB depaneling machine, CNC V-CUT machine manufacture, PCB depaneling machine with warranty


Weight:	185 Kg	Power:	10 KW
Voltage:	220V, 110V	Cutting Width:	Longitudinal 70mm
Wide:	380mm	Thickness:	0.6~2.5 Mm
Speed:	12mm/min	Total Blades:	Upper 10pcs, Down 10pcs
Spindle Motor:	3KW Inverter, 3.7KW Plastic Shaft Motor, 120W Crate Motor, 60W Closed	Mechanical Dimensions:	1200 Mm X 980 Mm X 1400 Mm (W X D X H)
Cutting Width:	75mm Wide Vertical 480mm	Thickness Range:	0.8-3.2 Mm
Cardboard V-cut:	≥10 Pit (up And Down 10 Knives)	Aluminum Plate V-cut:	≥5 Pit (up And Down 4 Knives)
Fiberboard V-cut:	≥8 Pit (up And Down 8 Knives)

Weight:	185 Kg
Power:	10 KW
Voltage:	220V, 110V
Cutting Width:	Longitudinal 70mm
Wide:	380mm
Thickness:	0.6~2.5 Mm
Speed:	12mm/min
Total Blades:	Upper 10pcs, Down 10pcs
Spindle Motor:	3KW Inverter, 3.7KW Plastic Shaft Motor, 120W Crate Motor, 60W Closed
Mechanical Dimensions:	1200 Mm X 980 Mm X 1400 Mm (W X D X H)
Cutting Width:	75mm Wide Vertical 480mm
Thickness Range:	0.8-3.2 Mm
Cardboard V-cut:	≥10 Pit (up And Down 10 Knives)
Aluminum Plate V-cut:	≥5 Pit (up And Down 4 Knives)
Fiberboard V-cut:	≥8 Pit (up And Down 8 Knives)

Automatic CNC V-CUT Machine Manufacture

Automatic CNC V-CUT Machine

Professional manual V-cut machine for PCB V-groove scoring and depaneling applications.

Key Specifications

Cutting Width: Longitudinal 70mm; Wide: 380mm
Material Thickness: 0.6-2.5 mm
Cutting Speed: 12 mm/min
Total Blades: Upper 10 pieces, Lower 10 pieces

Operation Guidelines

Speed Adjustment

V-CUT aluminum base plate conveying shaft transmission speed adjustment range: 20-30. Thicker plates require slower speeds, while thinner plates can use faster settings. For standard 1.6mm plate thickness, recommended speed is approximately 25.

Cutting Parameters

V-CUT aluminum base plate conveying speed determines cutter knife shaft speed. Standard plates can be processed at slower speeds for optimal results.

Tool Compatibility

Standard V-CUT knives are not suitable for aluminum plates. Specialized aluminum plate V-CUT knives can also be used for standard V-cut applications.

Cooling Requirements

When processing aluminum plates, cooling water or alcohol must be used. Never operate without proper cooling fluid.

YS-1200480 Aluminum V-CUT Machine Specifications

Model Number	YS-1200
Cutting Width	75mm vertical × 480mm wide
Material Thickness	0.8-3.2 mm
Cardboard Capacity	≥10 cuts per cycle (10 upper + 10 lower knives)
Aluminum Plate Capacity	≥5 cuts per cycle (4 upper + 4 lower knives)
Fiberboard Capacity	≥8 cuts per cycle (8 upper + 8 lower knives)
Processing Speed	8 m/min
Spindle Motor	3KW inverter, 3.7KW plastic shaft motor, 120W crate motor, 60W closed motor
Machine Dimensions	1200mm × 980mm × 1400mm (W × D × H)
Weight	185KG

Standard Accessories

Washer set, V-CUT knife (4 pieces), Shield bearing (10 pieces), Wrench set, Hex key set, Blades turret (1 piece)
