Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                PCB V Cut Machine 0.05mm accuracy, AC220V PCB depaneling machine, 50HZ parallel PCB cutter


Weight:	185 Kg	Power:	10 KW
Voltage:	220V, 110V	Gas Source:	0.5Mpa 50NL/Min
Max Machining Size:	1250mm * 650mm	Min Machining Size:	105mm * 105mm
Board Thickness:	0.4mm ~ 3.2mm	Parallel Accuracy:	± 0.05mm
Residual Thickness Precision:	± 0.05mm	Machine Size:	L2400mm * W1900mm * H1600mm
Power Supply:	AC220V ± 5V, 1¢ 50HZ 5KVA	Vacuum Requirement:	15m3/min, 50mm/Aq
Pitch Precision:	± 0.05mm	Blade Alignment:	± 0.05mm
Core Components:	PLC, Engine, Bearing, Motor, Gear, Pump

Weight:	185 Kg
Power:	10 KW
Voltage:	220V, 110V
Gas Source:	0.5Mpa 50NL/Min
Max Machining Size:	1250mm * 650mm
Min Machining Size:	105mm * 105mm
Board Thickness:	0.4mm ~ 3.2mm
Parallel Accuracy:	± 0.05mm
Residual Thickness Precision:	± 0.05mm
Machine Size:	L2400mm * W1900mm * H1600mm
Power Supply:	AC220V ± 5V, 1¢ 50HZ 5KVA
Vacuum Requirement:	15m3/min, 50mm/Aq
Pitch Precision:	± 0.05mm
Blade Alignment:	± 0.05mm
Core Components:	PLC, Engine, Bearing, Motor, Gear, Pump

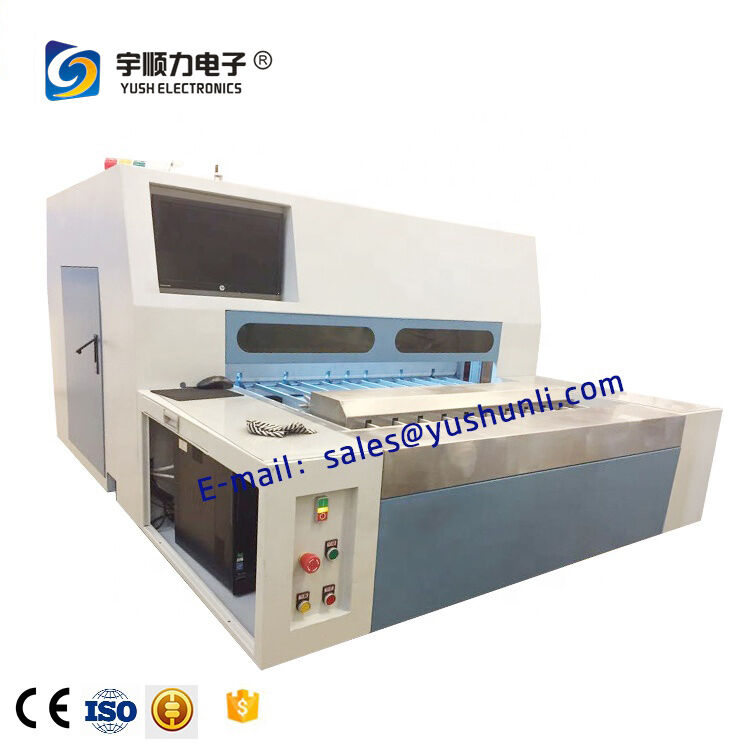

AC220V 50HZ Parallel Accuracy 0.05mm PCB V Cut Machine

CNC V-CUT Machine YSVC-1200 / PCB V Cut Machine

Technical Specifications

Power	AC220V ± 5V, 1¢ 50HZ 5KVA
Gas Source	0.5Mpa 50NL/Min
Machining Maximum Size	1250mm × 650mm
Processing Minimum Size	105mm × 105mm
Board Thickness	0.4mm ~ 3.2mm
Precision	Parallel accuracy ± 0.05mm
Machine Size	L2400mm × W1900mm × H1600mm
Machine Weight	185KG

Machine Features & Capabilities

Machine Name: CNC V-CUT machine YSVC-1200
Power: AC220V ± 5V, 1¢ 50HZ 5KVA (requires power regulator)
Gas Source: 0.5Mpa 50NL/Min
Vacuum: Minimum wind volume 15m³/min; minimum static pressure 50mm/Aq
Machining maximum size: 1250mm × 650mm
Processing minimum size: 105mm × 105mm
Board Thickness: 0.4mm ~ 3.2mm
High Precision: Parallel accuracy ± 0.05mm, residual thickness precision: ± 0.05mm, pitch: ± 0.05mm, Alignment of upper and lower blade ± 0.05mm

Processing Position: Distance from first cutter to edge minimum 8mm, unlimited number of cutting lines per side, arbitrary setting capability.

Machine Tool Configuration: Number of processing jump knives, blade positions, and tool positions can be arbitrarily set.

Residual Thickness Setting: Three types of residual thickness settings available for three different depth variations on a single surface.

Machine Structure: Casting machine base integrated design approach ensures superior stability and performance reliability.

Operating System

Microsoft WindowsXP system with all-English operation interface for easy understanding and operation
Simple parameter setting procedure: set plate dimensions, cutting line positions, then complete residual thickness processing settings
Real-time illustration displays with process tracking icons showing current processing position
Test function prevents scrap due to improper data settings - test cutting verifies position accuracy before full processing
Tool protection function prevents damage from improper residual thickness and tool outer diameter settings

Hardware Configuration

All machine axes utilize imported servo control systems for maximum stability and precision performance
Plate pushing axis, knife shaft, and upper knife-axis feature servo motors and servo wheels
Main control by United States six-axis motion control card for superior motion control
