High Efficiency Punching Machine

Product Details

Place of Origin: Guangdong, China

Brand Name: YuSH

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $30,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                high efficiency PCB depaneling machine, punching machine for PCB, PCB depaneling machine with warranty


Weight:	530/700 Kg	Power Supply:	110/220 V
Punch Force:	3-30 T	Voltage:	110/220 V
Dimensions:	730X810X1700 Mm	Air Pressure:	0.5-0.7 Mpa
Working Area:	330 X 220 Mm	PCB Tool Size:	7308101700 Mm
PCB Tool Weight:	530 Kg	Depression:	0.45-0.70 Pa
Core Components:	PLC, Motor	Machine Type:	Punching Machine
Worktable Size:	330 X 220 Mm	Model:	YSPE
Working Pressure:	0.5-0.7 Mpa

Weight:	530/700 Kg
Power Supply:	110/220 V
Punch Force:	3-30 T
Voltage:	110/220 V
Dimensions:	730X810X1700 Mm
Air Pressure:	0.5-0.7 Mpa
Working Area:	330 X 220 Mm
PCB Tool Size:	7308101700 Mm
PCB Tool Weight:	530 Kg
Depression:	0.45-0.70 Pa
Core Components:	PLC, Motor
Machine Type:	Punching Machine
Worktable Size:	330 X 220 Mm
Model:	YSPE
Working Pressure:	0.5-0.7 Mpa

High Efficiency Punching Machine

High Efficiency Punching Machine YSPE

Advanced punching machine designed for precision PCB depaneling with superior efficiency and reliability.

Key Features

Compatible with Rigid PCB, Flexible PCB (FPC), and Rigid-Flexible PCB materials
Utilizes punching mold technology for high-efficiency cutting
Supports multiple mold configurations with easy mold changing capability
Simple and safe operation with user-friendly controls

Technical Specifications

Model	YSPE
Punch Capacity (T)	3 (customizable up to 30T)
Working Area (mm)	330 × 220 (customizable)
Voltage (V)	110/220
Working Air Pressure (MPa)	0.5-0.7
PCB Punching Tool Size (mm)	730 × 810 × 1700
PCB Punching Tool Weight (kg)	530

Advanced Performance Features

Robust construction with mobility provided by 4 casters
Versatile mold compatibility with easy mold changing system
Automatic lower mold in/out mechanism for easy product handling
Minimizes internal stress during PCB cutting to prevent tin stress cracking

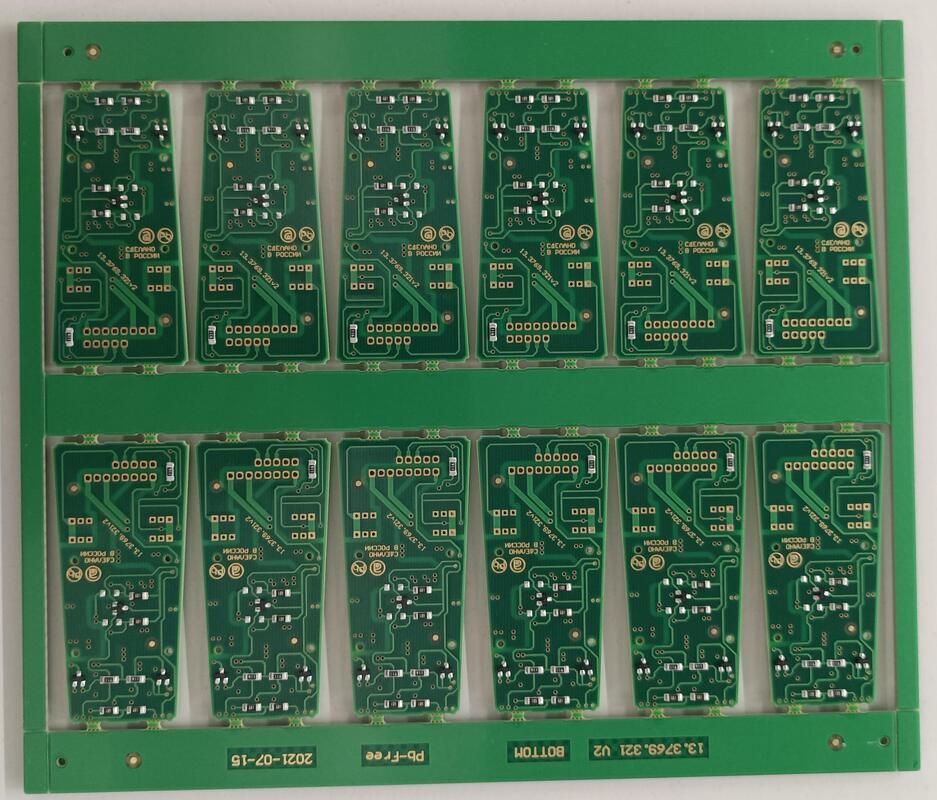

High-efficiency punching for semi-finished PCB processing
Custom mold and die manufacturing available per customer requirements

The YSPE High Efficiency Punching Machine delivers precision, reliability, and superior performance for all your PCB depaneling needs with customizable options to meet specific production requirements.
