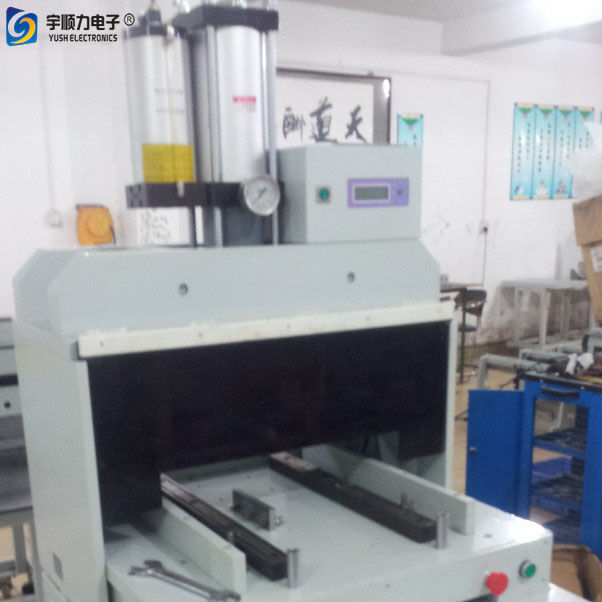

Name: Aluminium Pcb High Efficiency Punching Machine - YSPE -10T
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSPE-10T
Price: 50 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: YuSH

Certification: CE

Model Number: YSPE-10T

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $50,000 / set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Aluminium PCB punching machine, 10T PCB depaneling machine, High efficiency PCB punching machine


Weight:	530/700 Kg	Voltage:	110/220 V
Power:	40 W	Dimension:	730X810X1700 Mm
Punch Capacity:	3 T (up To 30T)	Working Area:	330*220 Mm
Working Air Pressure:	0.5-0.7 Mpa	Tool Size:	7308101700 Mm
Tool Weight:	530 Kg	Core Components:	PLC
PCB Type:	Rigid, Flexible, Rigid-Flexible	Mold Customization:	Yes
Operation Type:	Punching	Mobility:	4 Casters
Lower Mold:	Automatic In/out

Weight:	530/700 Kg
Voltage:	110/220 V
Power:	40 W
Dimension:	730X810X1700 Mm
Punch Capacity:	3 T (up To 30T)
Working Area:	330*220 Mm
Working Air Pressure:	0.5-0.7 Mpa
Tool Size:	7308101700 Mm
Tool Weight:	530 Kg
Core Components:	PLC
PCB Type:	Rigid, Flexible, Rigid-Flexible
Mold Customization:	Yes
Operation Type:	Punching
Mobility:	4 Casters
Lower Mold:	Automatic In/out

Aluminium Pcb High Efficiency Punching Machine - YSPE -10T

Aluminium PCB High Efficiency Punching Machine - YSPE-10T

High-performance PCB punching machine designed for efficient and precise circuit board depaneling operations.

Key Features

Compatible with Rigid PCB, Flexible PCB (FPC), and Rigid-Flexible PCB materials
High-efficiency punching mold cutting system
Easy mold replacement for multiple production requirements
Simple and safe operation with user-friendly controls

Technical Specifications

Model	YSPE-10T
Punch Capacity (T)	3 (customizable up to 30T)
Working Area (mm)	330 × 220 (customizable)
Voltage (V)	110/220
Working Air Pressure (MPa)	0.5-0.7
PCB Punching Tool Size (mm)	730 × 810 × 1700
PCB Punching Tool Weight (kg)	530

Advanced Features

Robust construction with 4 casters for easy mobility
Versatile mold compatibility with quick change capability
Automatic lower mold in/out system for easy product handling
Integrated drawer system for finished product collection
Minimizes internal stress generation during PCB cutting
Prevents tin stress cracking for superior board quality
High-efficiency semi-finished PCB punching capability
Custom mold and die manufacturing available per customer requirements
